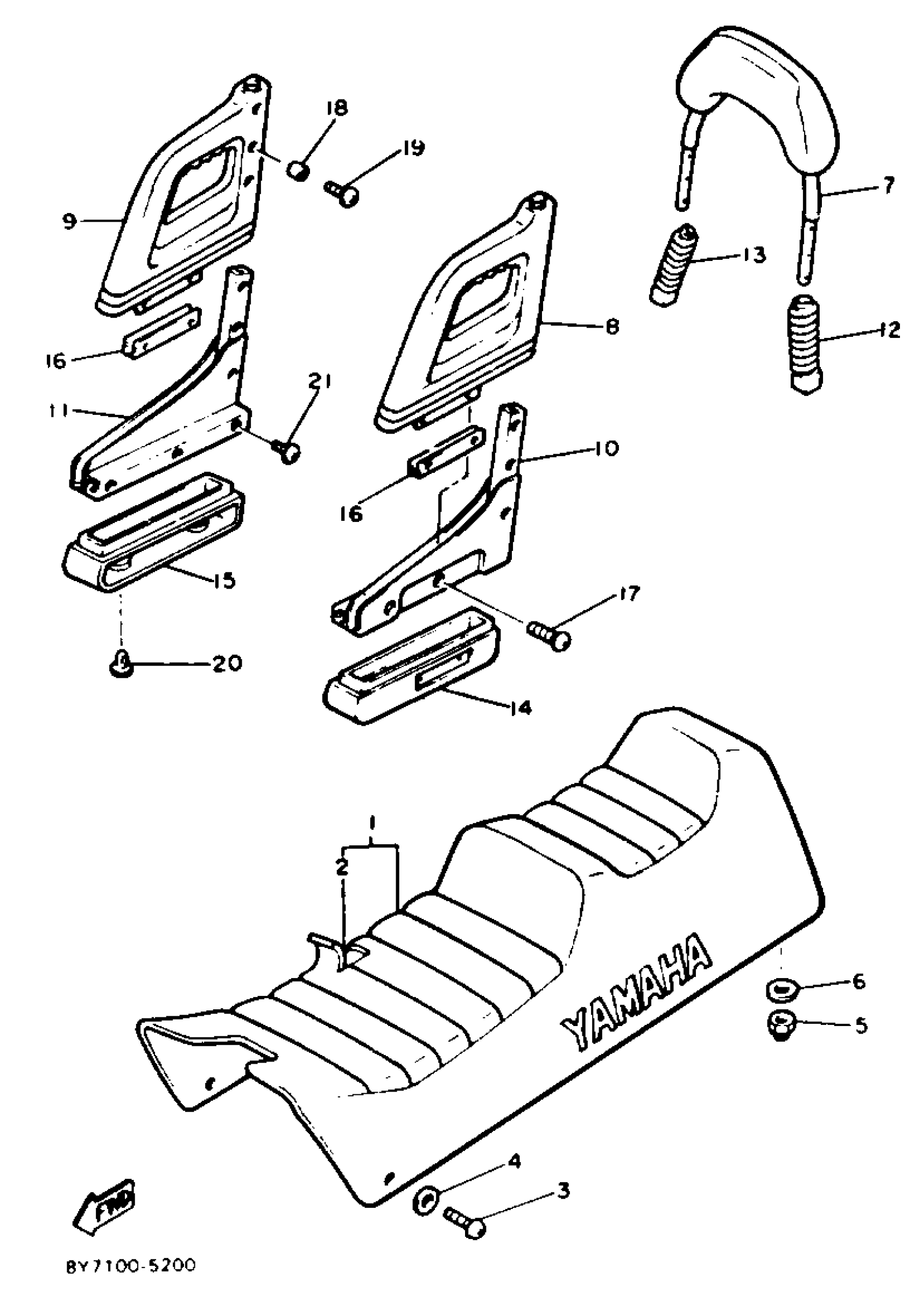

Yamaha XL540K (XLV) 1986 SEAT Diagram

#

Description

Price

1

DOUBLE SEAT ASY

87K-24730-00-00

Unavailable

2

COVER,DOUBLE SEAT

87K-24731-00-00

Unavailable

3

SCREW, BINDING

90154-06003-00

Unavailable

4

WASHER, PLATE(36Y)

90201-063J2-00

$5.60

5

NUT, NYLON

95717-08300-00

$2.70

6

WASHER, PLATE (4W3)

90201-086A3-00

$8.49

7

SEAT BACK ASSY

82V-24790-00-00

Unavailable

8

ASSIST, GRIP

8Y7-2474A-01-00

Unavailable

9

ASSIST, GRIP 2

8Y7-2474W-01-00

Unavailable

10

BRKT, ASSIST GRIP 1

8Y7-2474H-00-00

Unavailable

11

BRKT, ASSIST GRIP 2

8Y7-2474J-00-00

Unavailable

12

PROTECTOR, 1

8Y7-2476U-00-00

Unavailable

13

PROTECTOR, 2

8Y7-2476V-00-00

Unavailable

14

COVER 1

8Y7-24796-01-00

$187.99

15

COVER, 2

8Y7-2475X-01-00

Unavailable

16

WASHER, SEAT

8Y7-24746-00-00

Unavailable

17

SCREW, BINDING

98907-08016-00

Unavailable

18

COLLAR(8Y7)

90387-073M2-00

Unavailable

19

SCREW, BINDING

98907-06025-00

Unavailable

20

RIVET

90269-06001-00

Unavailable

21

SCREW,BINDING

98907-08014-00

Unavailable
