PRIMARY SHEAVE

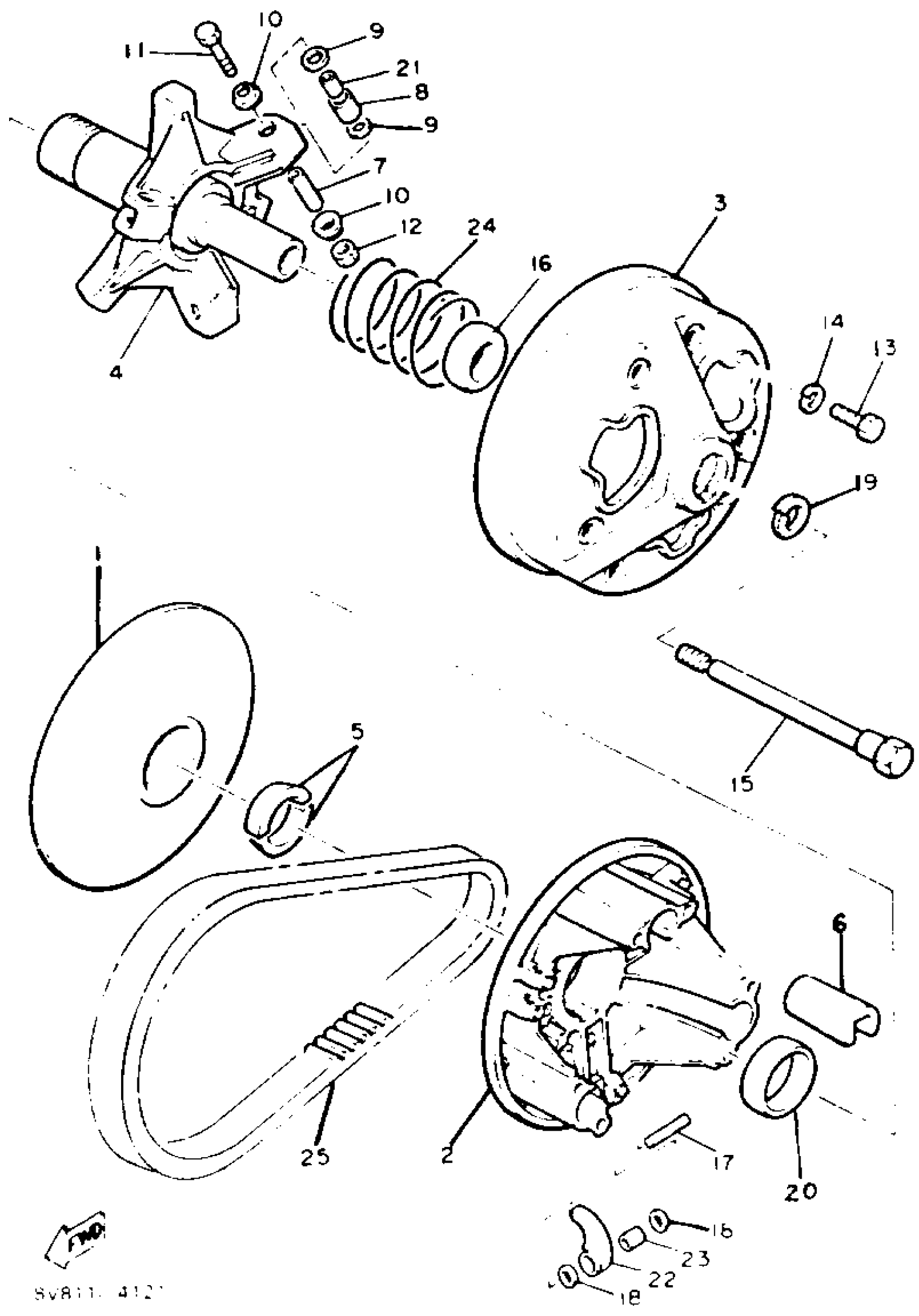

Yamaha XL540K (XLV) 1986 PRIMARY SHEAVE Diagram
#
1
SHEAVE, PRIMARY FIXED
84J-17611-00-00
Unavailable
2
. SHEAVE, PRIMARY SLIDING
8V0-17621-01-00
Unavailable
3
CAP
8V0-17631-00-00
Unavailable
4
SPIDER COMPLETE
82M-17640-02-00
Unavailable
5
STOPPER
8V0-17639-00-00
$14.99
6
SLIDER
88X-17653-00-00
$14.49
7
COLLAR(83R)
90387-057W5-00
$14.99
8
COLLAR
90387-096J5-00
Unavailable
9
WASHER, PLATE(87G)
90202-08205-00
$8.49
10
WASHER, CONICAL SPRING (8V8)
90208-05036-00
$9.49
11
BOLT (674)
97313-05035-00
Unavailable
12
NUT, U
95617-05100-00
$9.49
13
BOLT(JF7)
97080-06030-00
$5.49
14
WASHER, SPRING
92995-06100-00
Unavailable
15
BOLT (L=156.5MM)
8V0-17647-10-00
$25.99
16
BUSH(83R)
90389-28032-00
Unavailable
17
PIN, DOWEL (8V8)
93607-44190-00
Unavailable
18
WASHER, PLATE (8V8)
90201-077F5-00
Unavailable
19
WASHER(JN5)
92907-16100-00
Unavailable
20
BUSH (81H)
90389-40029-00
Unavailable
21
BUSH, SOLID
90380-08132-00
Unavailable
22
WEIGHT, WITH BUSH
8V0-W176A-00-00
Unavailable
23
BUSHING
8V0-17677-02-00
Unavailable
24
SPRING, WHITE/PURPL
90501-504A3-00
Unavailable
24
SPRING, COMPRESSION
90501-555A1-00
Unavailable
25
CLUTCH TUNE-UP KIT (K)
89X-00000-50-00
Unavailable
25
V-BELT
89X-17641-01-00
Unavailable
25
V-BELT
89X-17641-01-00
Unavailable
25
CLUTCH REPAIR KIT
89X-17601-09-00
Unavailable
