Description

Price

1

FRAME COMP

81R-21910-00-00

Unavailable

2

HOOD 1

81R-21982-00-00

Unavailable

3

. HOOD 2

81R-21983-00-00

Unavailable

4

RIVET, BLIND (8H4)

90267-48053-00

$3.61

5

PLUG (8K4)

90338-40099-00

$13.99

6

ORNAMENT, INSTRUMENT PANEL 2

810-77716-00-00

Unavailable

7

EMBLEM 2

81R-77352-00-00

Unavailable

8

EMBLEM 3

81R-77353-00-00

Unavailable

9

EMBLEM 4

81R-77354-00-00

Unavailable

10

EMBLEM 5

81R-77355-00-00

Unavailable

11

INDICATOR 2

8K2-77742-00-00

Unavailable

12

BODY, LATCH 1

8M6-77171-00-00

Unavailable

13

COLLAR(80L)

90387-061N6-00

$8.49

14

WASHER, PLATE 8221447500

90201-06057-00

$5.60

15

SCREW, BINDING

98907-06025-00

$8.49

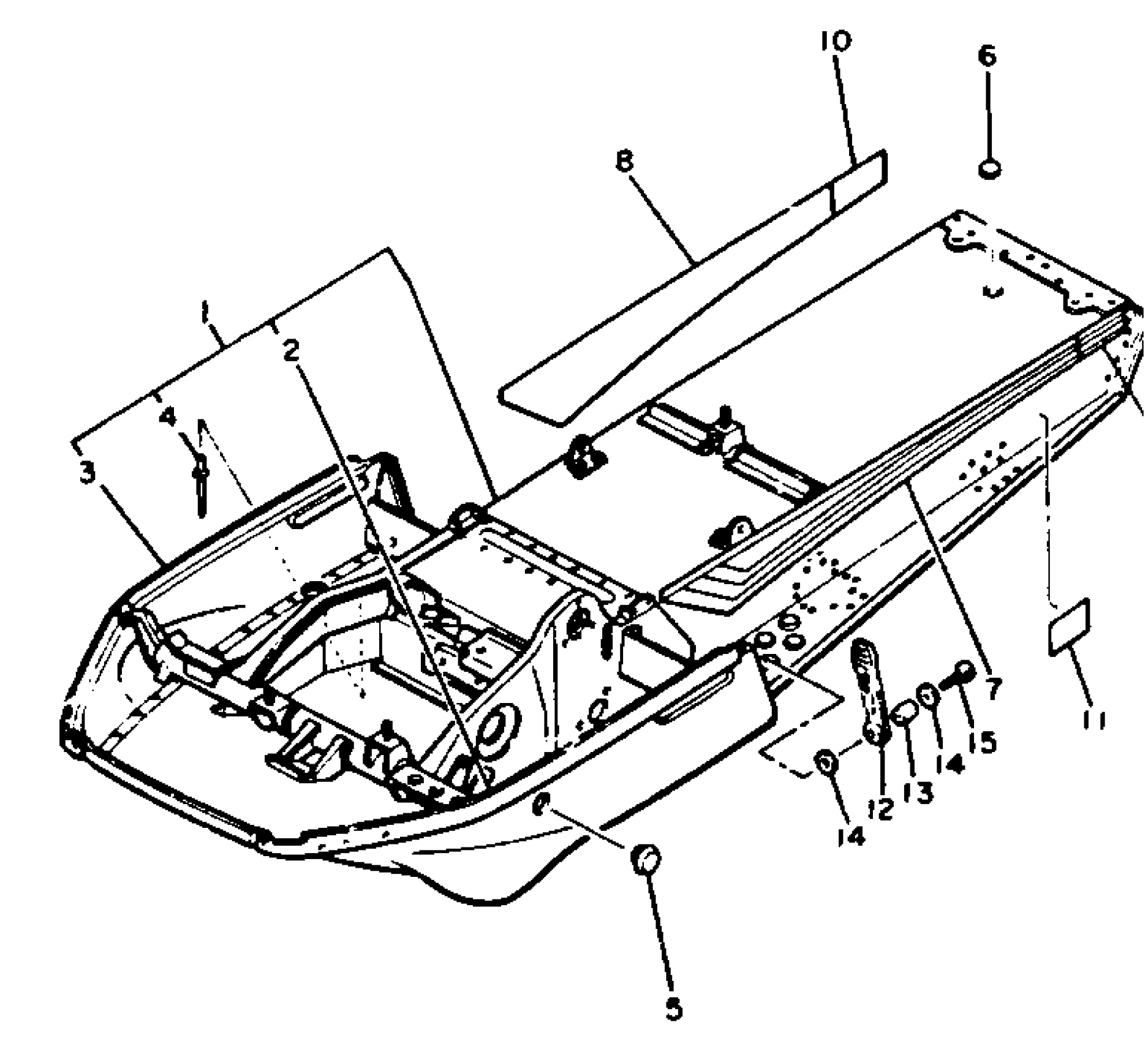

Yamaha XL540K (XLV) 1986 FRAME Diagram

FRAME COMP

HOOD 1

. HOOD 2

RIVET, BLIND (8H4)

PLUG (8K4)

ORNAMENT, INSTRUMENT PANEL 2

EMBLEM 2

EMBLEM 3

EMBLEM 4

EMBLEM 5

INDICATOR 2

BODY, LATCH 1

COLLAR(80L)

WASHER, PLATE 8221447500

SCREW, BINDING
