- XL540K (XLV) 1986
CARBURETOR

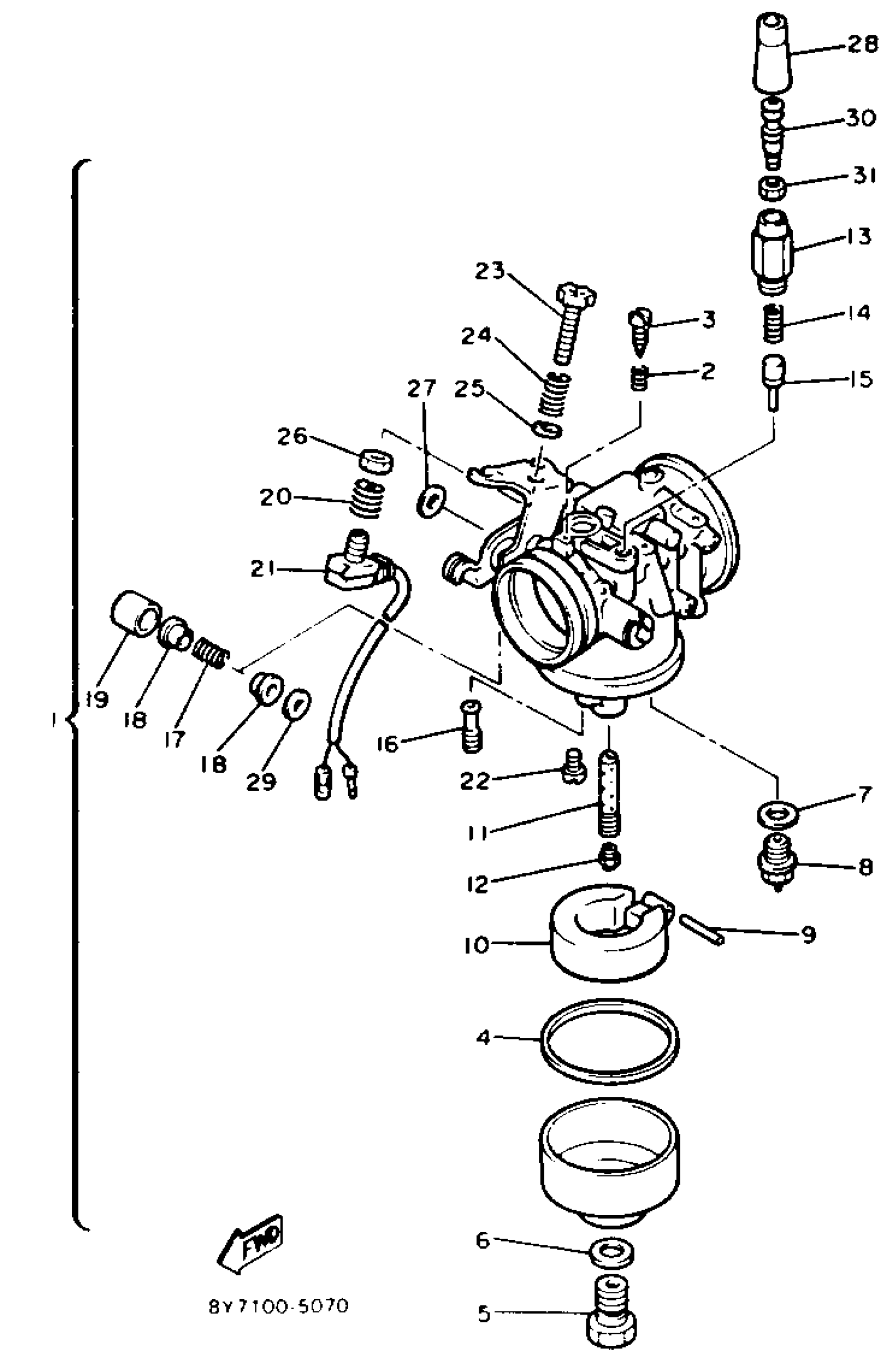

Yamaha XL540K (XLV) 1986 CARBURETOR Diagram
#
1
CARBURETOR ASSEMBLY 1 (8Y7-14101-01)
8Y7-14101-02-00
Unavailable
2
SPRING, AIR ADJUSTING
82A-14134-00-00
$8.99
3
SCREW, PILOT ADJUSTING
620-14211-00-00
$19.99
4
GASKET, FLOAT CHAMBER
8M6-14126-00-00
$18.99
5
HOLDER
8M6-14261-00-00
$46.99
6
GASKET
286-14198-00-00
$9.99
7
WASHER, VALVE SEAT
214-14195-00-00
$7.99
8
VALVE SEAT ASSY
168-14190-15-00
$42.99
9
PIN,FLOAT
8M6-14186-00-00
$9.49
10
FLOAT ASSY
8M6-14185-00-00
$91.99
11
. NOZZLE, MAIN
8Y2-14941-32-00
Unavailable
12
JET, MAIN (#115)
3G2-14231-23-A0
$14.49
12
JET,MAIN(#120)
3G2-14231-24-00
$13.49
12
JET, MAIN (#125)
3G2-14231-25-00
$13.49
12
JET, MAIN (#130)
3G2-14231-26-A0
$10.99
12
JET, MAIN (#145)
3G2-14231-29-00
Unavailable
12
JET,MAIN #117.5
3G2-1423A-74-00
Unavailable
12
JET,MAIN #122.5
3G2-1423A-75-A1
Unavailable
12
JET,MAIN #127.5
3G2-1423A-76-00
Unavailable
12
JET,MAIN #132.5
3G2-1423A-77-00
Unavailable
12
JET,MAIN #137.5
3G2-1423A-78-00
Unavailable
13
CAP, PLUNGER
8G8-14174-00-00
Unavailable
14
SPRING, PLUNGER
127-14135-00-00
Unavailable
15
PLUNGER, STARTER
8G8-14171-00-00
Unavailable
16
. JET, PILOT #60
193-14142-60-00
Unavailable
17
. SPRING, THROTTLE 2
80L-14932-00-00
Unavailable
18
COLLAR
80L-14535-00-00
Unavailable
19
COLLAR
80L-14534-00-00
Unavailable
20
SPRING, THROTTLE STOP
8X0-14133-00-00
Unavailable
21
SWITCH, CARBURETOR
87S-8259A-01-00
Unavailable
22
CAP
8V0-14118-00-00
Unavailable
23
SCREW,THROTTLE
80L-14122-00-00
Unavailable
24
SPRING
8X0-14500-00-00
Unavailable
25
WASHER, PLUG SCREW
22F-14117-00-00
Unavailable
26
NUT
8X0-14358-00-00
Unavailable
27
COLLAR
80L-14264-00-00
Unavailable
28
CAP
8A7-14169-00-00
Unavailable
29
WASHER
80L-14227-00-00
Unavailable
30
CABLE ADJUST SCREW SET
12G-14106-00-00
Unavailable
31
NUT, WIRE ADJUSTING
802-14161-00-00
Unavailable
