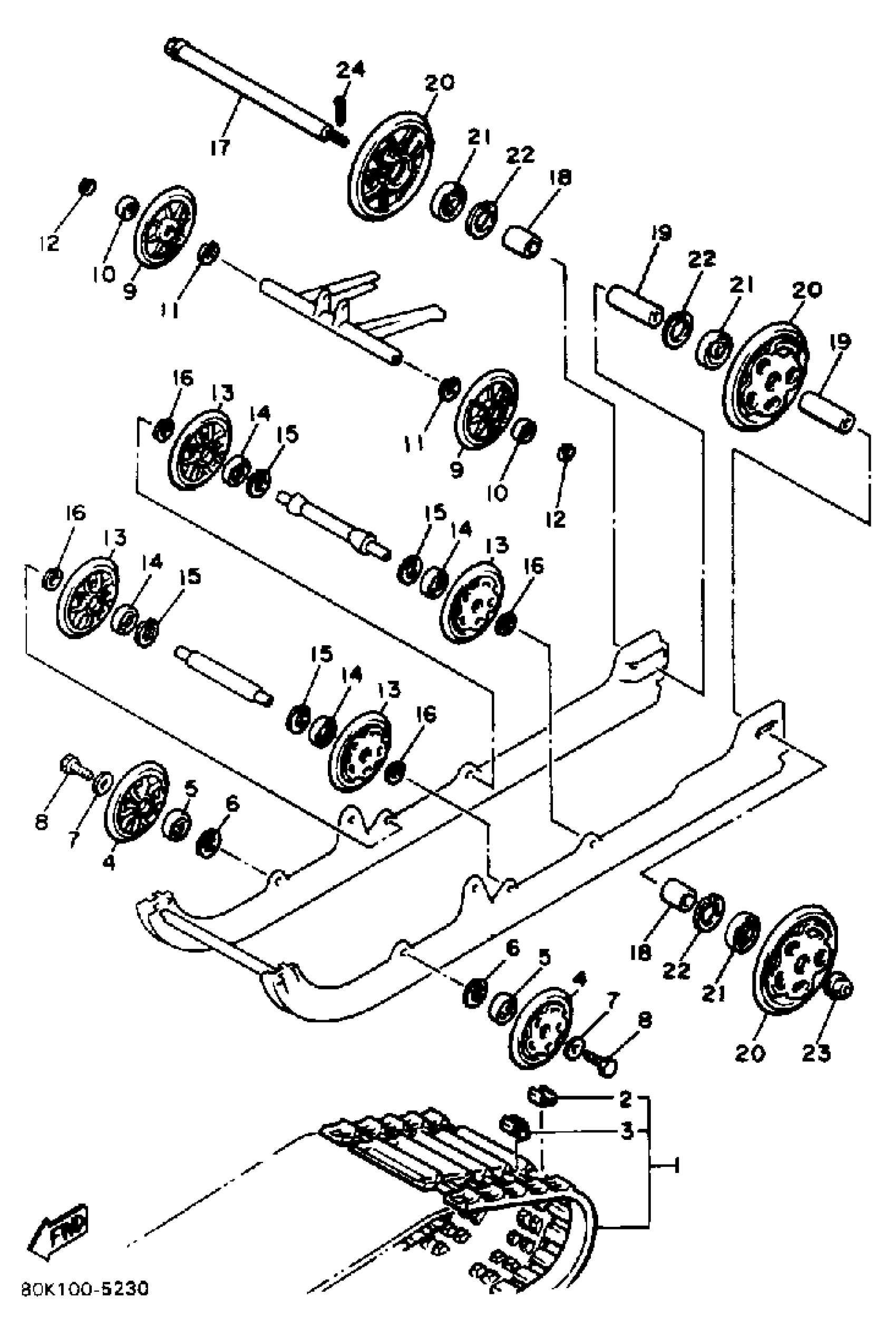

Yamaha XL540J (XL-V) 1985 TRACK SUSPENSION 1 Diagram

#

Description
Price

1

TRACK ASSEMBLY

87F-47110-01-00

Unavailable

2

PLATE, REINFORCEMENT

89A-47113-00-00

$4.11

3

METAL, SLIDE

8A5-47115-00-00

$12.99

4

SUSPENTION WHEEL COMP

87M-47320-00-00

$74.01

5

BEARING(8AB)

93306-00444-00

$34.26

6

CIRCLIP(5U8)

99009-42500-00

$6.32

7

WASHER (8G1)

90201-08681-00

$6.12

8

BOLT (8K2)

90109-08559-00

$6.82

9

SUSPENSION WHEEL COMP

885-47320-01-00

$66.62

10

BEARING(8AB)

93306-00444-00

$34.26

11

CIRCLIP(5U8)

99009-42500-00

$6.32

12

CIRCLIP(1AR)

99009-20400-00

$5.75

13

SUSPENTION WHEEL COMP

87M-47320-00-00

$74.01

14

BEARING(8AB)

93306-00444-00

$34.26

15

CIRCLIP(5U8)

99009-42500-00

$6.32

16

CIRCLIP(1AR)

99009-20400-00

$5.75

17

REAR AXLE COMP.

8L8-47520-02-00

Unavailable

18

COLLAR

90387-202H9-00

Unavailable

19

COLLAR

90387-20022-00

Unavailable

20

GUIDE WHEEL COMP.

8K2-47530-00-00

Unavailable

21

BRG,R-B 62042RS 47MM 110G KY

93306-20417-00

Unavailable

22

CIRCLIP(48Y)

99009-47500-00

Unavailable

23

NUT, SELF-LOCKING (8BF)

95607-14200-00

Unavailable

24

PIN, COTTER

91490-30030-00

Unavailable
