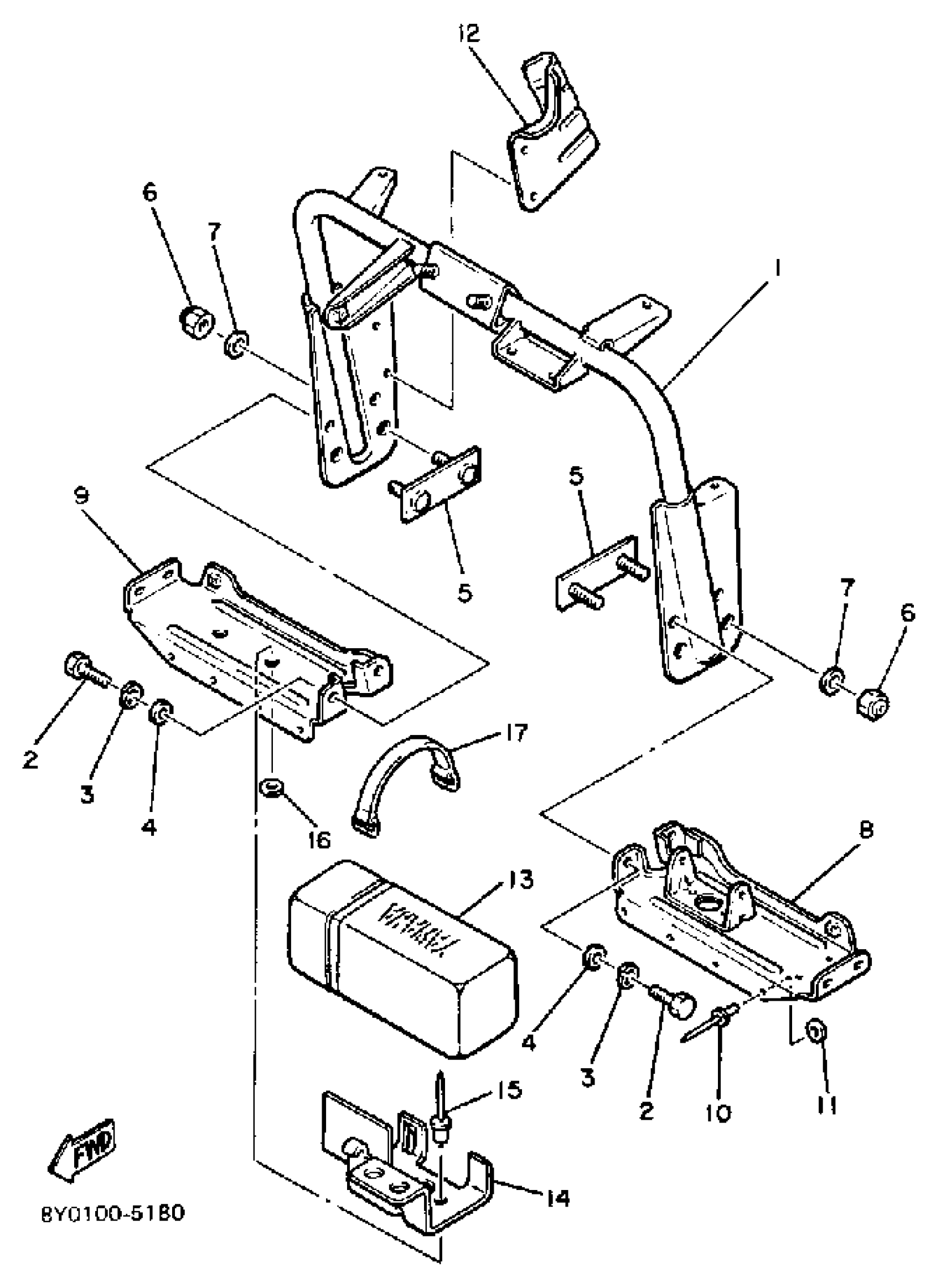

Yamaha XL540J (XL-V) 1985 STEERING GATE Diagram

#

Description
Price

1

GATE, STEERING

8K4-23871-00-00

Unavailable

2

BOLT, HEXAGON

97017-06016-00

$8.49

3

WASHER, SPRING

92907-06100-00

$4.25

4

WASHER(6TA)

92907-06200-00

$8.49

5

BRACKET 10

(8K4-23878-00-00)

Unavailable

6

NUT, NYLON

95717-08300-00

$2.70

7

WASHER(6TC)

92907-08200-00

$8.49

8

BRACKET 3

8K4-23883-00-00

Unavailable

9

BRACKET 4

8L8-23884-00-00

Unavailable

10

RIVET, BLIND (8H4)

90267-48053-00

$3.61

11

WASHER, PLATE

90201-04027-00

$3.02

12

BRACKET 6

8K4-23886-00-00

Unavailable

13

TOOL KIT (8V9-28100-00)

8U9-28100-00-00

Unavailable

14

BRACKET, TL BX FTNG (8N8-21945-01)

8U5-21945-00-00

Unavailable

15

RIVET, BLIND (8K2)

90267-48079-00

$3.50

16

WASHER, PLATE

90201-04027-00

$3.02

17

BAND, BATTERY

4J2-82131-01-00

Unavailable
