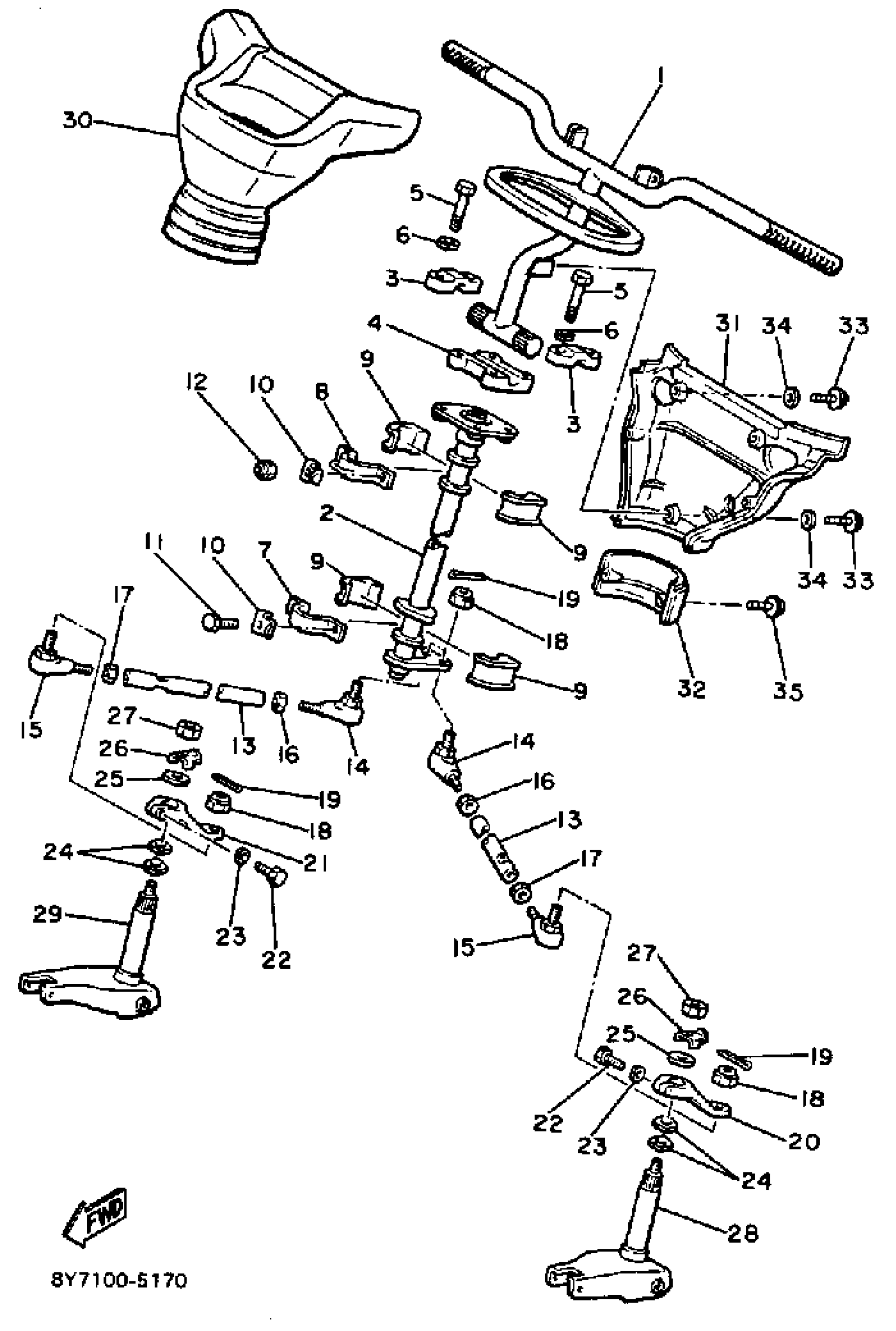

Yamaha XL540J (XL-V) 1985 STEERING Diagram

#

Description
Price

1

COLUMN, STEERING

81R-23811-00-00

Unavailable

2

COLUMN, STEERING 2

8L8-23813-00-00

Unavailable

3

HOLDER, HANDLE UPPER

1E6-23441-00-00

$27.99

4

HANDLE, HOLDER

164-23441-01-98

Unavailable

5

BOLT, HEXAGON

97013-08055-00

$2.55

6

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

7

BRACKET, STEERING LOWER

84M-23868-00-00

Unavailable

8

HOLDER, BEARING

84M-23872-00-00

Unavailable

9

BEARING, STEERING

8F3-23812-00-00

Unavailable

10

WASHER, LOCK 1

8AC-23894-01-00

$4.78

11

BOLT, HEXAGON

97013-08016-00

$1.01

12

NUT, NYLON

95717-08300-00

$2.70

13

ROD, STEERING RELAY

8K4-23821-00-00

Unavailable

14

JOINT, UNIVERSAL 1

86X-23841-00-00

$59.99

15

JOINT, UNIVERSAL 2

86X-23845-00-00

$61.99

16

NUT (682)

95380-10700-00

Unavailable

17

NUT, HEXAGON (8A5)

90170-10186-00

Unavailable

18

NUT, NYLON

95707-10300-00

Unavailable

19

PIN, COTTER

91490-20025-00

Unavailable

20

ARM, OUTSIDE 1

8K4-23851-00-00

Unavailable

21

ARM, OUTSIDE 2

8K4-23852-00-00

Unavailable

22

BOLT, HEXAGON

97017-08025-00

Unavailable

23

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

24

WASHER, WAVE (878)

90206-20037-00

Unavailable

25

WASHER, PLATE (3J6)

90201-100A1-00

Unavailable

26

WASHER, LOCK

90215-10096-00

Unavailable

27

NUT(3BM)

95314-10600-00

Unavailable

28

COLUMN, SKI 1

8L8-23853-00-00

Unavailable

29

COLUMN, SKI 2

8L8-23854-00-00

Unavailable

30

PAD, STEERING

8L8-23815-01-00

Unavailable

31

. PAD, STEERING

8L8-23817-02-00

Unavailable

32

COVER, STEERING

8Y0-23818-00-00

Unavailable

33

SCREW, PAN HEAD W/WASHER

97607-05112-00

Unavailable

34

WASHER, PLATE 8067717800

90201-05029-00

Unavailable

35

SCREW, PAN HEAD WITH WASHER

97607-04314-00

Unavailable
