Description

Price

1

SECONDARY FIXED SHEAVE COMP.

89N-17660-00-00

Unavailable

2

SEC.SLIDING SHEAVE

80R-17670-01-00

Unavailable

3

SHOE RAMP

8X6-17688-00-00

$8.49

4

SEAT, SEC SPRING

8U7-17684-01-00

Unavailable

5

WASHER, PLATE

90201-34684-00

Unavailable

6

CIRCLIP(86F)

93440-34170-00

$8.49

7

SHAFT, SECONDARY

82M-17681-00-00

Unavailable

8

WASHER, PLATE (8R6)

90201-252F1-00

$8.49

8

WASHER, PLATE (888)

90201-25526-00

$9.49

8

WASHER, PLATE (888)

90201-25527-00

$10.49

9

BOLT, WASHER BASED

90105-14175-00

Unavailable

10

WASHER, PLATE

90201-140A6-00

Unavailable

11

BEARING

888-17678-00-00

Unavailable

12

HOUSING, BEARING

8K4-47631-01-00

Unavailable

13

BOLT, HEXAGON

97017-08016-00

$8.49

14

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

15

WASHER, PLATE (T=0.5)

90201-222F0-00

Unavailable

15

WASHER, PLATE (8L8)

90201-225A4-00

Unavailable

16

COLLAR

90387-147A8-00

Unavailable

17

SPRING, TORSION (8U7)

90508-50571-00

Unavailable

18

WASHER, PLATE (8U9)

90201-345G2-00

Unavailable

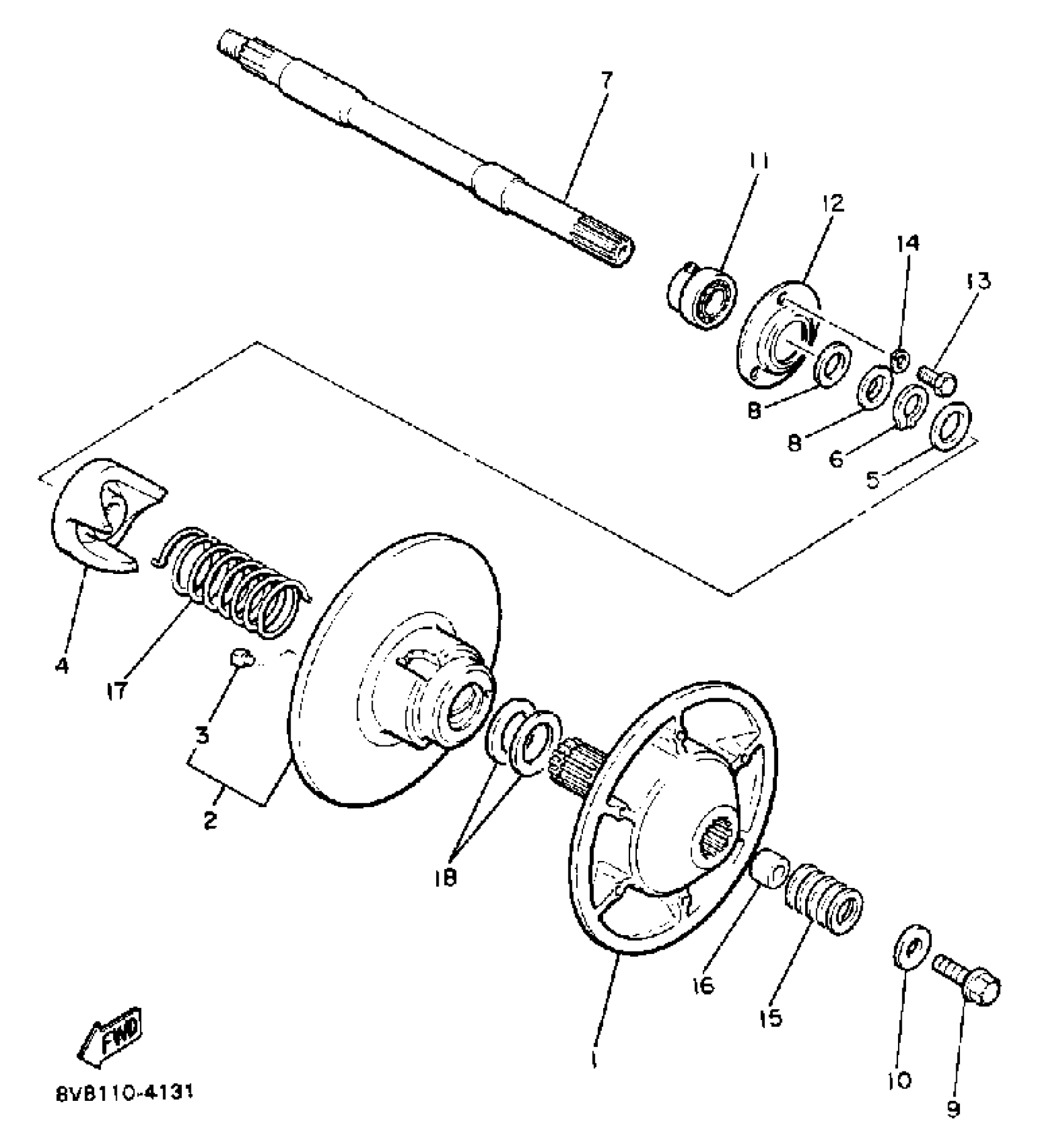

Yamaha XL540J (XL-V) 1985 SECONDARY SHEAVE Diagram

SECONDARY FIXED SHEAVE COMP.

SEC.SLIDING SHEAVE

SHOE RAMP

SEAT, SEC SPRING

WASHER, PLATE

CIRCLIP(86F)

SHAFT, SECONDARY

WASHER, PLATE (8R6)

WASHER, PLATE (888)

WASHER, PLATE (888)

BOLT, WASHER BASED

WASHER, PLATE

BEARING

HOUSING, BEARING

BOLT, HEXAGON

YBS67-8 WASHER, SPRING

WASHER, PLATE (T=0.5)

WASHER, PLATE (8L8)

COLLAR

SPRING, TORSION (8U7)

WASHER, PLATE (8U9)
