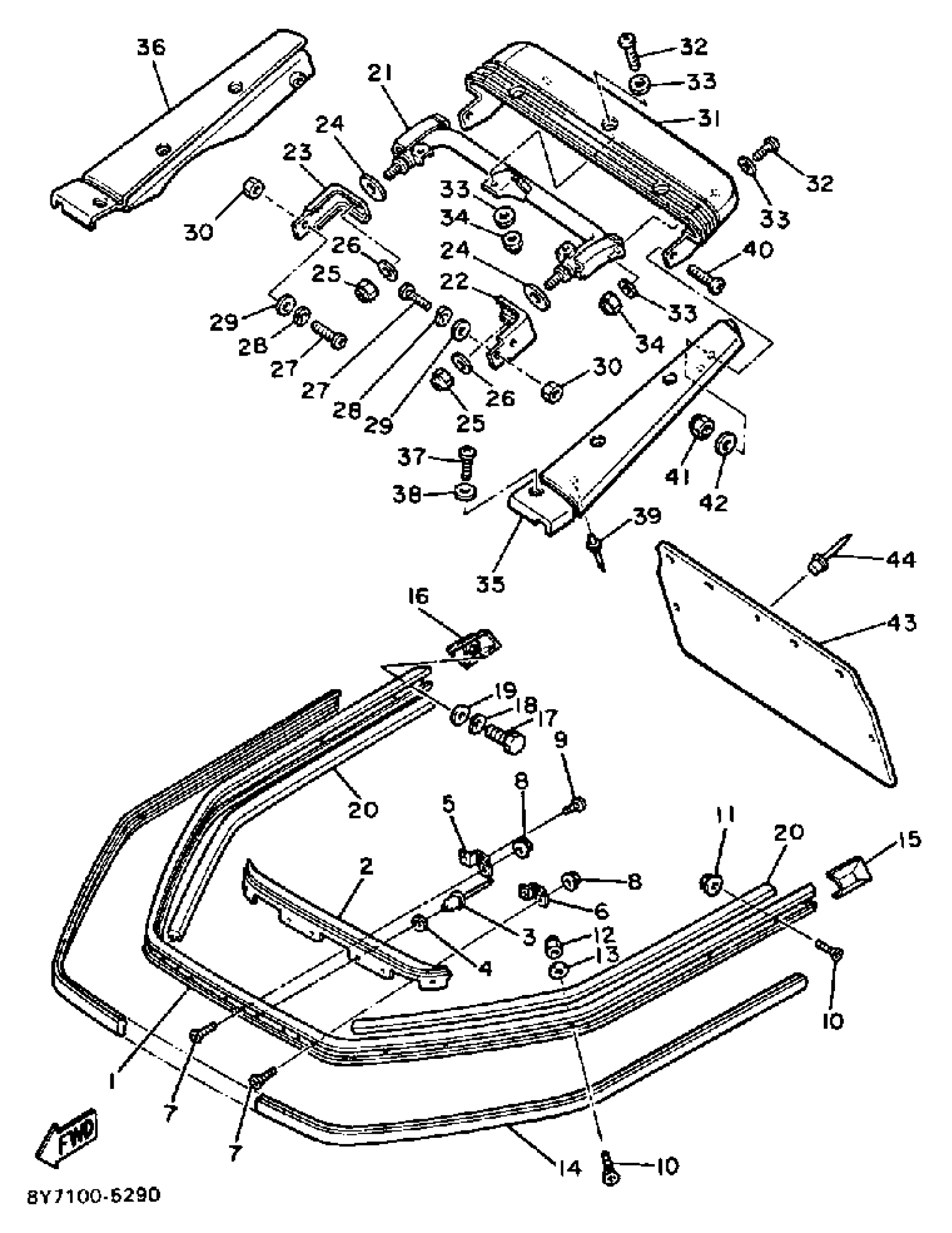

Yamaha XL540J (XL-V) 1985 BUMPER Diagram
#
1
BUMPER, FRONT 1
8N8-77511-00-00
Unavailable
2
BUMPER, FRONT 2
8N8-77512-00-00
Unavailable
3
RIVET, BLIND (8K2)
90267-48079-00
$3.50
4
WASHER, PLATE
90201-04027-00
$3.02
5
BRACKET, FRONT L (L.H)
8N8-77531-00-00
Unavailable
6
BRACKET, FRONT R (R.H)
8N8-77532-00-00
Unavailable
7
SCREW, FLAT
98707-06012-00
$8.49
8
NUT, FLANGE(7NB)
95780-06500-00
$2.60
9
SCREW, BIND (705)
98980-06016-00
$8.49
10
SCREW, FLAT
98707-06014-00
$8.49
11
NUT, FLANGE(7NB)
95780-06500-00
$2.60
12
NUT, SELF-LOCKING
95617-06100-00
$8.49
13
YBS66-6 WASHER, PLAIN
92990-06200-00
$3.78
14
BUSH, RUBBER 2
8N8-77516-00-00
Unavailable
15
END, BUMPER
8N8-77523-00-00
Unavailable
16
END, BUMPER
8N8-77524-00-00
Unavailable
17
BOLT, HEXAGON
97013-06018-00
Unavailable
18
WASHER, SPRING
92995-06100-00
Unavailable
19
WASHER, PLATE (4H7)
90201-061A5-00
Unavailable
20
BUSH, RUBBER 1
8K4-77515-01-00
Unavailable
21
BUMPER, REAR 1
8M6-77541-00-00
Unavailable
22
WASHER 1
8M6-77525-01-00
Unavailable
23
WASHER 2
8M6-77526-01-00
Unavailable
24
WASHER, PLATE(47X)
90201-121J0-00
Unavailable
25
NUT, NYLON
95707-10300-00
Unavailable
26
958-69527-00 WASHER, PLAIN
92990-10200-00
Unavailable
27
SCREW, BIND (J17)
98980-06020-00
Unavailable
28
WASHER, SPRING
92995-06100-00
Unavailable
29
WASHER, PLATE (4H7)
90201-061A5-00
Unavailable
30
NUT, HEXAGON
95380-06600-00
Unavailable
31
BUMPER, REAR 2
8M6-77542-00-00
Unavailable
32
SCREW, BINDING
98907-05016-00
Unavailable
33
WASHER, PLATE 8067717800
90201-05029-00
Unavailable
34
NUT, NYLON
95707-05300-00
Unavailable
35
BUMPER, REAR 3
8M6-77543-00-00
Unavailable
36
BUMPER, REAR 4
8M6-77544-00-00
Unavailable
37
SCREW, BINDING
98907-05012-00
Unavailable
38
WASHER, PLATE 8067717800
90201-05029-00
Unavailable
39
RIVET, BLIND (8R6)
90267-48086-00
Unavailable
40
SCREW, BINDING
98907-06025-00
Unavailable
41
NUT, NYLON
95707-06300-00
Unavailable
42
YBS66-6 WASHER, PLAIN
92990-06200-00
$3.78
43
FLAP
8X9-77595-00-00
Unavailable
44
RIVET, BLIND (8R6)
90267-48086-00
Unavailable
