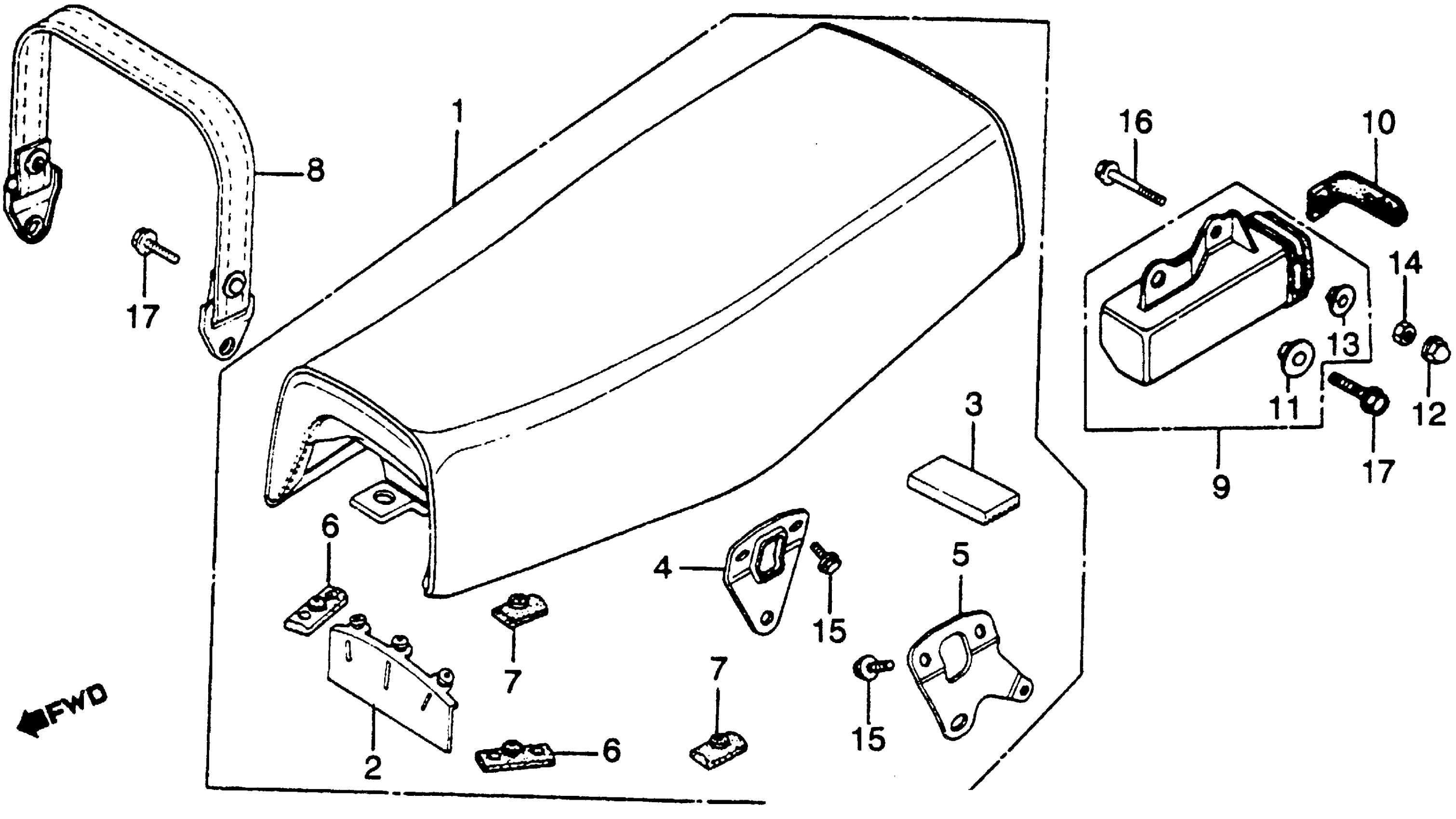

Honda XL500SA (81) MOTORCYCLE, JPN, VIN# JH2PD010-BM200001 TO JH2PD010-BM207756 XL500S SEAT 79-81 Diagram

#

Description
Price

1

SEAT ASSY. (NOT AVAILABLE) This part replaces 77200-435-770.

77200-435-670

Unavailable

2

RUBBER, SEAT SETTING

77201-429-000

Unavailable

3

RUBBER, SEAT SETTING (NOT AVAILABLE)

77201-435-000

Unavailable

4

STAY A, SEAT SETTING (NOT AVAILABLE)

77202-429-000

Unavailable

5

STAY A, L. SEAT SETTING (NOT AVAILABLE)

77203-435-000

Unavailable

6

RUBBER A, SEAT SETTING (NOT AVAILABLE)

77204-429-000

Unavailable

7

RUBBER B, SEAT SETTING

77205-429-000

Unavailable

8

SEAT BELT (NOT AVAILABLE)

77210-435-670

Unavailable

9

BOX, TOOL

83501-428-300

Unavailable

10

BAND, TOOL BOX

83510-428-000

$4.55

11

COLLAR, TOOL BOX This part replaces 83515-428-000.

83515-KF9-900

Unavailable

12

NUT, CAP (6MM)

90201-415-000

$2.05

13

WASHER (6X20)

90512-300-000

$3.08

14

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

14

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

14

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

14

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

14

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

14

NUT, HEX. (6MM)

94001-06200-0S

$1.49

14

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

15

BOLT, FLANGE (6X10)

95700-06010-08

$1.61

15

BOLT, FLANGE (6X10)

95701-06010-08

$1.61

16

BOLT, FLANGE (6X20) This part replaces 95700-06020-00.

95701-06020-00

$1.55

16

BOLT, FLANGE (6X20)

95701-06020-00

$1.55

17

BOLT, FLANGE (8X20) This part replaces 95700-08020-00.

95701-08020-00

$1.78

17

BOLT, FLANGE (8X20)

95701-08020-00

$1.78
