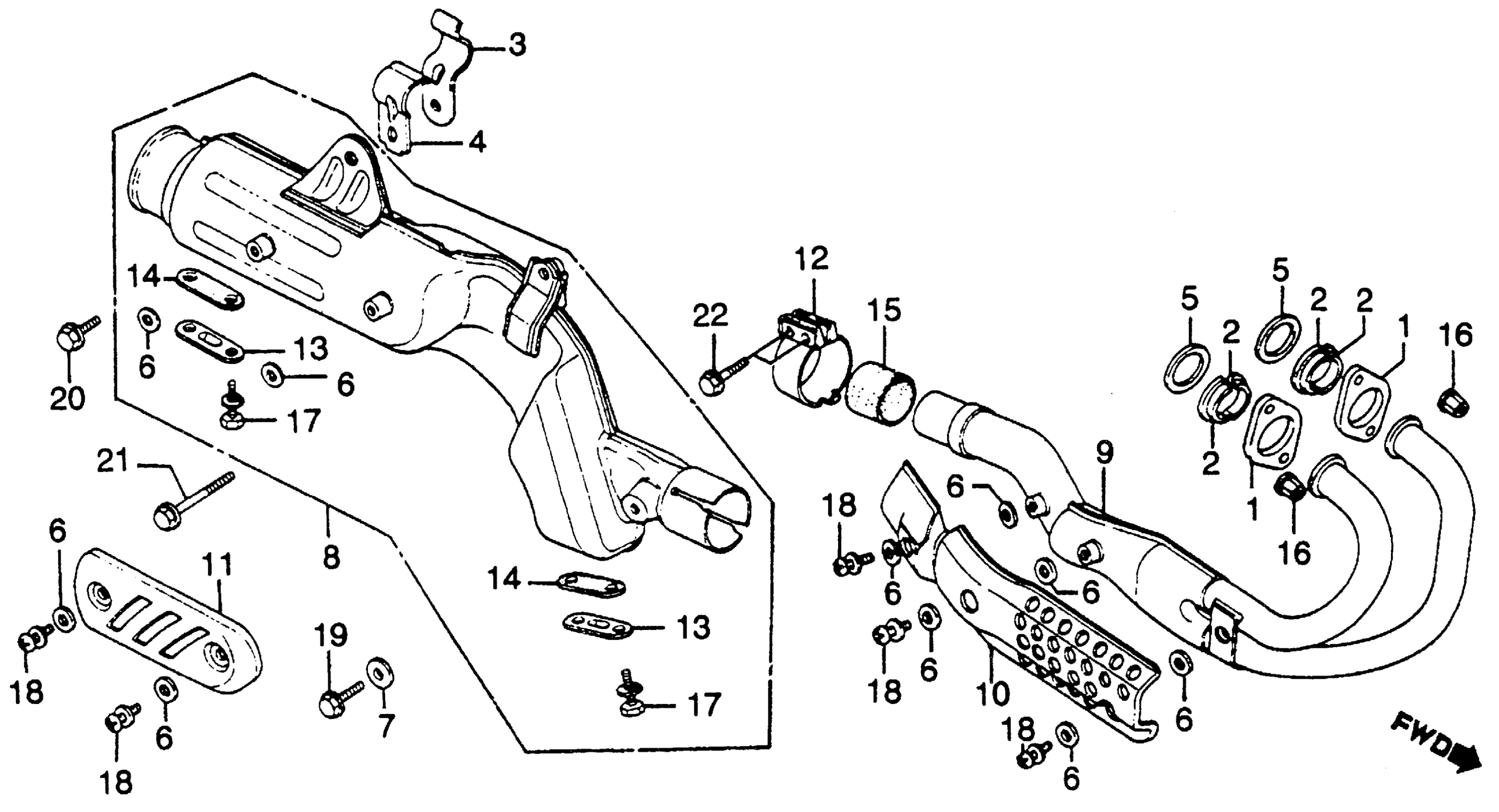

Honda XL500SA (81) MOTORCYCLE, JPN, VIN# JH2PD010-BM200001 TO JH2PD010-BM207756 XL500S MUFFLER 79-81 Diagram

#

Description
Price

1

JOINT, EX. PIPE (NOT AVAILABLE)

18231-429-000

Unavailable

2

COLLAR, EX. PIPE JOINT

18233-435-000

$8.52

3

BAND A, MUFFLER (NOT AVAILABLE)

18283-429-000

Unavailable

4

BAND B, MUFFLER (NOT AVAILABLE)

18284-429-000

Unavailable

5

GASKET, EX. PIPE

18291-MN5-650

$3.77

5

GASKET, EX. PIPE This part replaces 18291-216-000.

18291-MN5-650

$3.77

6

GASKET, PROTECTOR This part replaces 18292-KF9-900.

18292-MM9-740

$3.03

6

GASKET, PROTECTOR

18292-MM9-740

$3.03

6

GASKET, PROTECTOR This part replaces 18292-415-000.

18292-MM9-740

$3.03

7

GASKET B, MUFFLER This part replaces 18295-KS3-920.

18295-KV6-920

Unavailable

7

GASKET B, MUFFLER This part replaces 18295-KZ1-670.

18295-KV6-920

Unavailable

7

GASKET B, MUFFLER This part replaces 18295-429-000.

18295-KV6-920

Unavailable

8

MUFFLER (NOT AVAILABLE) This part replaces 18310-435-670.

18310-435-677

Unavailable

8

MUFFLER (NOT AVAILABLE)

18310-435-677

Unavailable

9

PIPE, EX. This part replaces 18320-435-000.

18320-435-610

Unavailable

10

PROTECTOR, EX. PIPE (NOT AVAILABLE)

18325-435-000

Unavailable

11

PROTECTOR, MUFFLER (NOT AVAILABLE)

18355-435-000

Unavailable

12

BAND, L. MUFFLER This part replaces 18371-429-000.

18377-MT3-000

$30.80

12

BAND, L. MUFFLER

18377-MT3-000

$30.80

13

LID, MUFFLER This part replaces 18373-429-000.

18373-429-010

$9.15

13

LID, MUFFLER

18373-429-010

$9.15

14

GASKET, MUFFLER LID

18374-MN1-880

$4.21

14

GASKET, MUFFLER LID This part replaces 18374-429-000.

18374-MN1-880

$4.21

15

GASKET, MUFFLER This part replaces 18391-429-000.

18391-429-010

$15.22

15

GASKET, MUFFLER

18391-429-010

$15.22

16

NUT (6X15)

90282-329-000

$4.67

17

BOLT-WASHER (6X12)

93401-06012-07

$1.62

17

BOLT-WASHER (6X12) This part replaces 93411-06012-07.

93401-06012-07

$1.62

17

BOLT-WASHER (6X12) This part replaces 93481-06012-07.

93401-06012-07

$1.62

18

SCREW-WASHER (6X12)

93891-06012-00

$1.49

19

BOLT, FLANGE (8X16) This part replaces 95700-08016-00.

95701-08016-00

$1.80

19

BOLT, FLANGE (8X16)

95701-08016-00

$1.80

20

BOLT, FLANGE (8X20) This part replaces 95700-08020-00.

95701-08020-00

$1.78

20

BOLT, FLANGE (8X20)

95701-08020-00

$1.78

21

BOLT, FLANGE (8X40) This part replaces 95700-08040-00.

95701-08040-00

$1.49

21

BOLT, FLANGE (8X40)

95701-08040-00

$1.49

22

BOLT, FLANGE (8X35)

95728-08035-00

Unavailable
