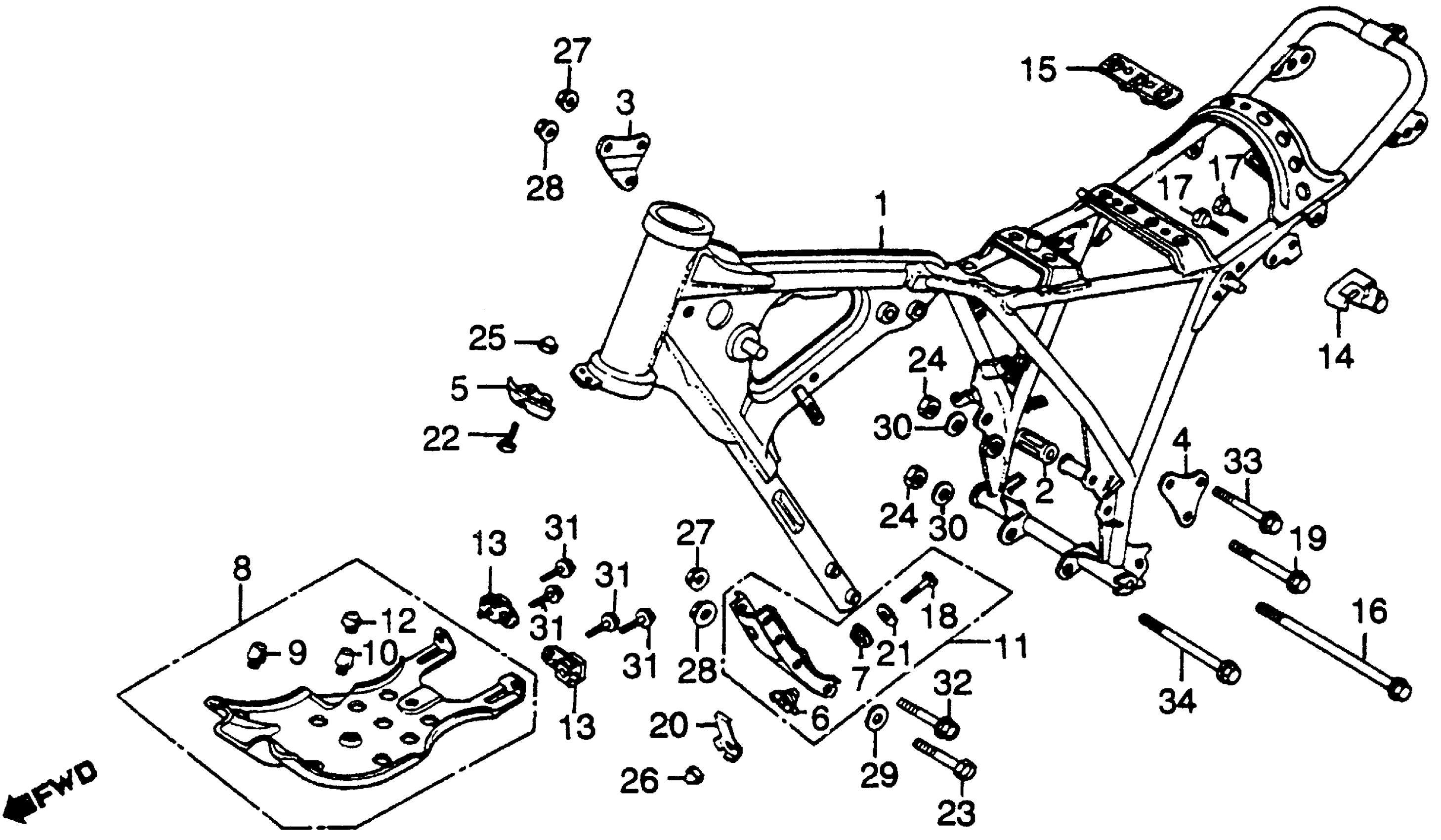

Honda XL500SA (81) MOTORCYCLE, JPN, VIN# JH2PD010-BM200001 TO JH2PD010-BM207756 XL500S FRAME 79-81 Diagram

#

Description
Price

1

FRAME *NH1* (BLACK) (NOT AVAILABLE)

50100-435-670ZA

Unavailable

2

COLLAR, ENGINE HANGER (NOT AVAILABLE)

50130-429-000

Unavailable

3

PLATE, R. ENGINE HANGER (UPPER) *NH1* (BLACK) (NOT AVAILABLE)

50138-429-000ZA

Unavailable

4

PLATE, L. ENGINE HANGER (UPPER) *NH1* (BLACK) (NOT AVAILABLE)

50139-429-000ZA

Unavailable

5

STAY, HANDLE LOCK (NOT AVAILABLE)

50141-428-000

Unavailable

8

PLATE, SKID *NH35M* (CLOUD SILVER METALLIC) (NOT AVAILABLE)

50351-428-871ZA

Unavailable

9

RUBBER A, STOPPER

50352-428-000

$2.75

10

RUBBER A, STOPPER

50352-434-000

$5.55

11

HANGER, FR. ENGINE *NH1* (BLACK) (NOT AVAILABLE)

50353-434-000ZA

Unavailable

12

RUBBER B, STOPPER

50354-428-000

$2.75

14

HOLDER ASSY., HELMET

50710-382-671

$72.08

15

RUBBER C, SEAT (NOT AVAILABLE)

77206-429-000

Unavailable

16

BOLT, FLANGE (12X240) (NOT AVAILABLE)

90104-429-000

Unavailable

17

BOLT B, SPECIAL (6MM)

90107-195-860

Unavailable

17

BOLT B, SPECIAL (6MM) This part replaces 90107-428-000.

90107-195-860

Unavailable

19

BOLT, FLANGE (10X73) (NOT AVAILABLE)

90157-429-000

Unavailable

22

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

22

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

22

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

22

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

22

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

22

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

23

BOLT, HEX. (10X60) This part replaces 92200-10060-0A.

92201-10060-0A

$3.02

23

BOLT, HEX. (10X60)

92201-10060-0A

$3.02

24

NUT, HEX. (12MM)

94001-12000-0S

$1.66

25

NUT, CAP (6MM) This part replaces 94021-06000.

94021-06020

$1.73

25

NUT, CAP (6MM) This part replaces 94021-06000-0S.

94021-06020

$1.73

25

NUT, CAP (6MM)

94021-06020

$1.73

25

NUT, CAP (6MM) This part replaces 94021-06020-0S.

94021-06020

$1.73

25

NUT, CAP (6MM) This part replaces 94022-06020.

94021-06020

$1.73

27

NUT, FLANGE (8MM)

94050-08000

$1.49

28

NUT, FLANGE (10MM)

94050-10000

$1.59

29

WASHER, PLAIN (10MM)

94101-10000

$1.49

30

WASHER, PLAIN (12MM)

94101-12000

$1.49

31

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

31

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

32

BOLT, FLANGE (8X60) This part replaces 95800-08060-00.

95801-08060-00

$2.48

32

BOLT, FLANGE (8X60)

95801-08060-00

$2.48

33

BOLT, FLANGE (8X65) This part replaces 95800-08065-00.

95801-08065-00

$2.75

33

BOLT, FLANGE (8X65)

95801-08065-00

$2.75

34

BOLT, FLANGE (12X125) (NOT AVAILABLE)

95800-12125-00

Unavailable
