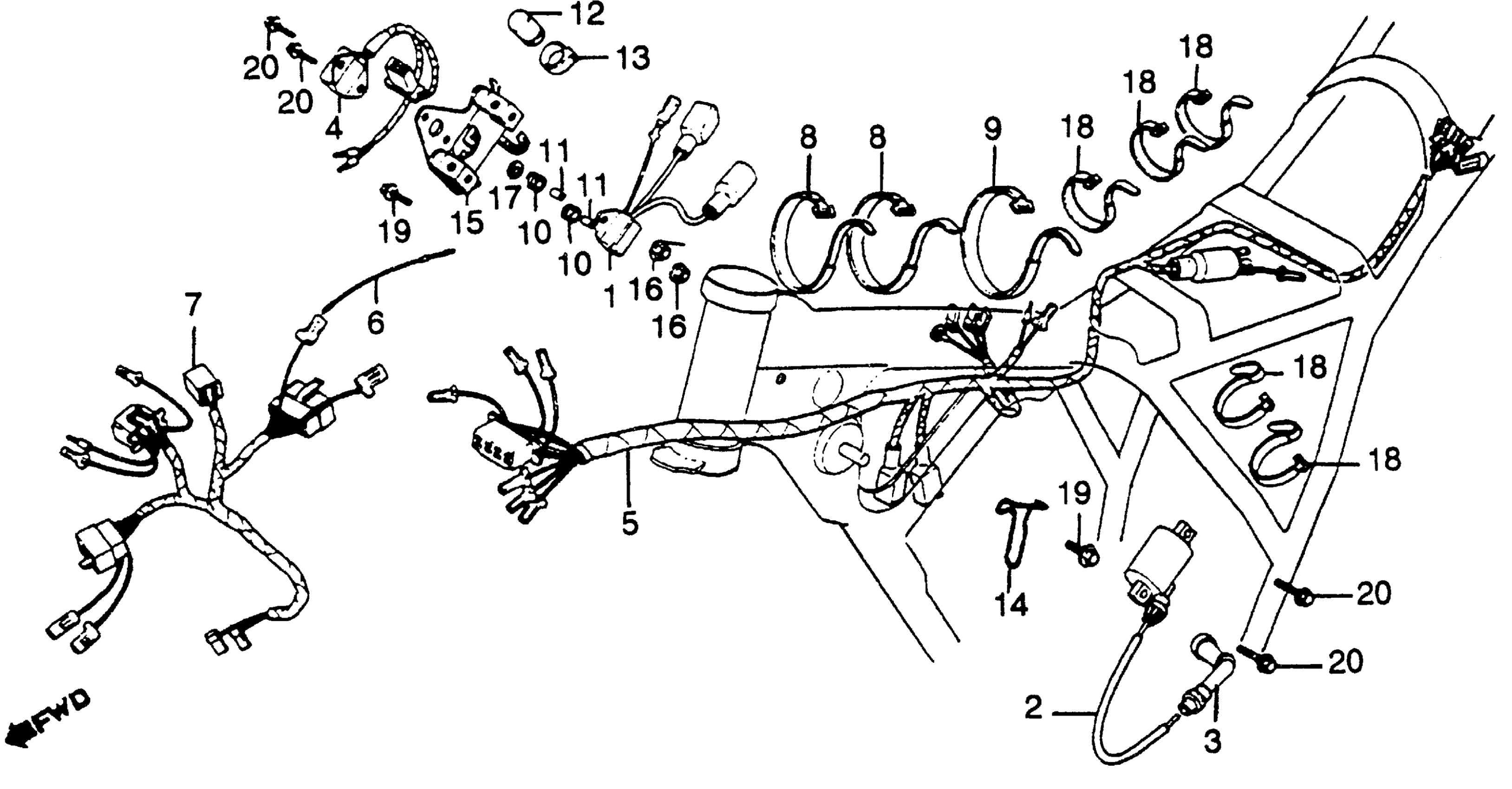

Honda XL500SA (81) MOTORCYCLE, JPN, VIN# JH2PD010-BM200001 TO JH2PD010-BM207756 WIRE HARNESS + IGNITION COIL Diagram

#

Description
Price

1

MODULE, IGNITION CONTROL (CDI) (NOT AVAILABLE)

30400-429-000

Unavailable

2

COIL ASSY., IGNITION This part replaces 30500-428-003.

30500-383-405

Unavailable

2

COIL ASSY., IGNITION This part replaces 30500-428-013.

30500-383-405

Unavailable

3

CAP ASSY. This part replaces 30700-GAR-000.

30700-GAR-003

$19.81

3

CAP ASSY. This part replaces 30700-429-000.

30700-GAR-003

$19.81

4

RECTIFIER (NOT AVAILABLE)

31600-435-000

Unavailable

5

WIRE HARNESS (NOT AVAILABLE)

32100-435-000

Unavailable

6

SUB-WIRE A (BROWN/WHITE) (NOT AVAILABLE)

32101-385-000

Unavailable

7

SUB-WIRE HARNESS A (NOT AVAILABLE)

32101-428-010

Unavailable

8

BAND, WIRE

32161-399-000

Unavailable

9

BAND, CABLE

32161-402-000

Unavailable

10

GROMMET A, TUBE

36037-657-000

$6.16

10

GROMMET A, TUBE This part replaces 36043-657-000.

36037-657-000

$6.16

11

COLLAR, METER SETTING (NOT AVAILABLE)

37243-371-008

Unavailable

12

RELAY ASSY., TURN SIGNAL

38300-GF0-405

$44.27

12

RELAY ASSY., TURN SIGNAL This part replaces 38300-089-671.

38300-GF0-405

$44.27

12

RELAY ASSY., TURN SIGNAL This part replaces 38300-243-670.

38300-GF0-405

$44.27

12

RELAY ASSY., TURN SIGNAL This part replaces 38300-428-004.

38300-GF0-405

$44.27

12

RELAY ASSY., TURN SIGNAL This part replaces 38301-428-004.

38300-GF0-405

$44.27

12

RELAY ASSY., TURN SIGNAL This part replaces 38301-428-671.

38300-GF0-405

$44.27

12

RELAY ASSY., TURN SIGNAL This part replaces 38310-428-671.

38300-GF0-405

$44.27

13

SUSPENSION, TURN SIGNAL RELAY

38306-292-000

$3.76

14

CLIP, CABLE (NOT AVAILABLE)

45464-428-610

Unavailable

15

PLATE, ELECTRIC BASE (NOT AVAILABLE)

50300-435-000

Unavailable

16

NUT, FLANGE (6MM)

94050-06000

$1.49

17

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

17

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

17

WASHER, PLAIN (6MM)

94101-06800

$1.49

18

BAND B1, WIRE

32161-404-000

$2.23

18

BAND B1, CABLE This part replaces 95014-61100.

32161-404-000

$2.23

19

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

19

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

20

BOLT, FLANGE (6X16) This part replaces 95700-06016-00.

95701-06016-00

$1.55

20

BOLT, FLANGE (6X16)

95701-06016-00

$1.55
