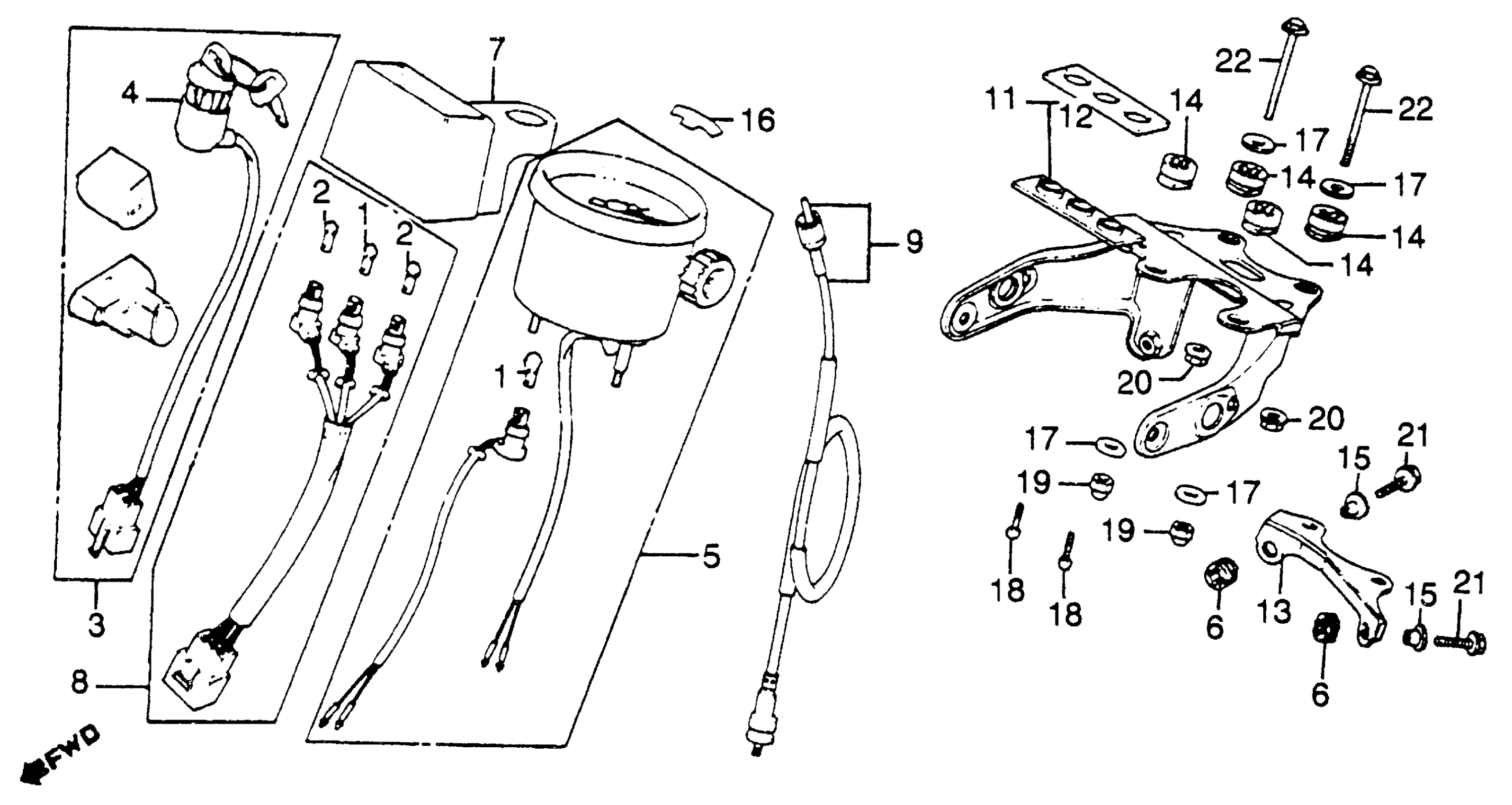

Honda XL500SA (81) MOTORCYCLE, JPN, VIN# JH2PD010-BM200001 TO JH2PD010-BM207756 SPEEDOMETER + KEY SET Diagram

#

Description
Price

1

BULB, DASH (6V 3W)

34902-202-000

$3.08

2

BULB, SPEEDOMETER (6V 1.7W)

34908-230-000

$4.67

3

LOCK SET (NOT AVAILABLE)

35010-428-730

Unavailable

4

SWITCH ASSY., COMBINATION This part replaces 35100-428-840.

35100-428-405

Unavailable

5

SPEEDOMETER ASSY. (NOT AVAILABLE) | Use up to Frame SN BM202854 This part replaces 37200-435-731.

37200-435-732

Unavailable

5

SPEEDOMETER ASSY. (NOT AVAILABLE)

37200-435-732

Unavailable

6

RUBBER, SPEEDOMETER SETTING This part replaces 37242-435-000.

37242-435-700

$5.90

6

RUBBER, SPEEDOMETER MOUNTING

37242-435-700

$5.90

7

CASE, PILOT (NOT AVAILABLE)

37310-428-841

Unavailable

8

WIRE, PILOT (NOT AVAILABLE)

37311-428-841

Unavailable

9

CABLE ASSY., SPEEDOMETER

44830-KJ9-000

Unavailable

9

CABLE ASSY., SPEEDOMETER This part replaces 44830-428-000.

44830-KJ9-000

Unavailable

9

CABLE ASSY., SPEEDOMETER This part replaces 44830-428-010.

44830-KJ9-000

Unavailable

9

CABLE ASSY., SPEEDOMETER This part replaces 44830-428-900.

44830-KJ9-000

Unavailable

11

STAY, HEADLIGHT CASE (NOT AVAILABLE)

61310-435-700

Unavailable

12

MOUNT, PILOT CASE (NOT AVAILABLE)

61313-428-840

Unavailable

13

SUB-STAY, HEADLIGHT (NOT AVAILABLE)

61314-435-610

Unavailable

14

RUBBER, RR. FENDER CUSHION

80101-283-000

$4.91

15

COLLAR, BATTERY TRAY SETTING (NOT AVAILABLE)

84706-307-000

Unavailable

16

LABEL, BREAK IN CAUTION (NOT AVAILABLE)

87523-102-720

Unavailable

17

WASHER B, HANDLE HOLDER SETTING

90525-030-000

$1.75

18

SCREW, TAPPING (4X16)

93901-34480

$1.49

19

NUT, CAP (6MM) This part replaces 94021-06000.

94021-06020

$1.73

19

NUT, CAP (6MM) This part replaces 94021-06000-0S.

94021-06020

$1.73

19

NUT, CAP (6MM)

94021-06020

$1.73

19

NUT, CAP (6MM) This part replaces 94021-06020-0S.

94021-06020

$1.73

19

NUT, CAP (6MM) This part replaces 94022-06020.

94021-06020

$1.73

20

NUT, FLANGE (6MM)

94050-06000

$1.49

21

BOLT, FLANGE (6X25) This part replaces 95700-06025-00.

95701-06025-00

$1.80

21

BOLT, FLANGE (6X25)

95701-06025-00

$1.80

22

BOLT, FLANGE (6X55) This part replaces 95700-06055-00.

95701-06055-00

$2.16

22

BOLT, FLANGE (6X55)

95701-06055-00

$2.16
