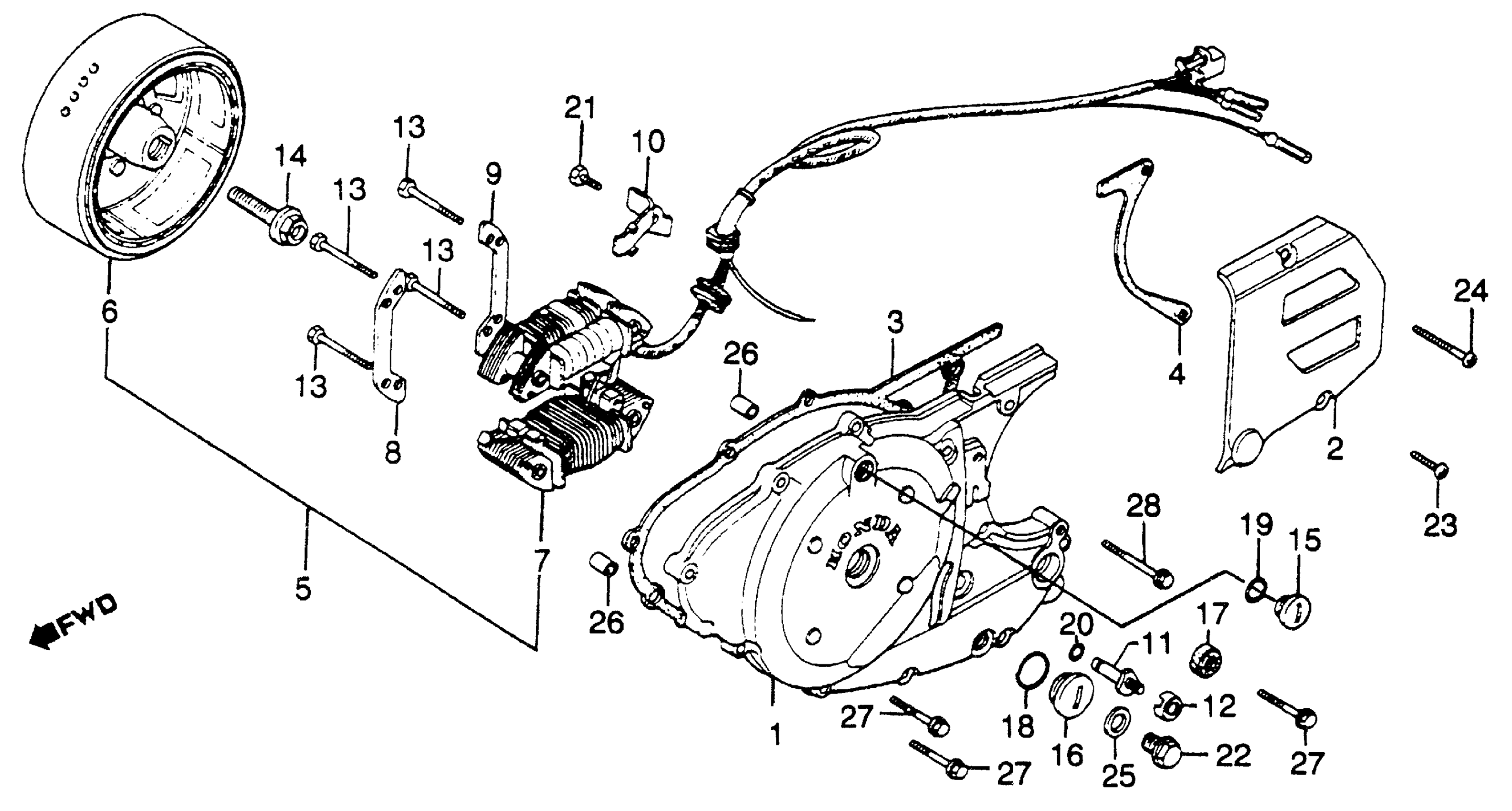

Honda XL500SA (81) MOTORCYCLE, JPN, VIN# JH2PD010-BM200001 TO JH2PD010-BM207756 LEFT CRANKCASE COVER + ALTERNATOR Diagram

#

Description
Price

1

COVER, L. CRANKCASE (NOT AVAILABLE)

11341-428-000

Unavailable

2

COVER, L. RR. CRANKCASE

11351-428-300

Unavailable

3

GASKET, L. CRANKCASE COVER This part replaces 11395-429-000.

11395-429-306

Unavailable

3

GASKET, L. CRANKCASE COVER

11395-429-306

Unavailable

4

GASKET, R. COVER This part replaces 11396-428-300.

11396-428-306

Unavailable

5

ALTERNATOR ASSY. (DENSO) (NOT AVAILABLE)

31100-435-004

Unavailable

6

FLYWHEEL (DENSO) (NOT AVAILABLE) This part replaces 31110-435-004.

31110-435-641

Unavailable

6

FLYWHEEL (DENSO) (NOT AVAILABLE)

31110-435-641

Unavailable

7

STATOR (NOT AVAILABLE)

31120-435-004

Unavailable

8

PLATE A, COIL SETTING (NOT AVAILABLE)

31125-428-000

Unavailable

9

PLATE B, COIL SETTING (NOT AVAILABLE)

31126-428-000

Unavailable

10

CLAMP, CABLE (NOT AVAILABLE)

32111-428-000

Unavailable

11

CONTACT ASSY., NEUTRAL SWITCH

35750-028-000

Unavailable

12

SPACER, NEUTRAL SWITCH (NOT AVAILABLE)

35752-329-300

Unavailable

13

BOLT, HEX. (6X42) (NOT AVAILABLE)

90012-634-670

Unavailable

14

BOLT, FLANGE (12X45) This part replaces 90023-HA7-670.

90024-MT3-000

Unavailable

14

BOLT, FLANGE (12X45) This part replaces 90023-428-000.

90024-MT3-000

Unavailable

14

BOLT, FLANGE (12X45)

90024-MT3-000

Unavailable

15

CAP, ALTERNATOR This part replaces 90084-428-000.

90084-471-000

Unavailable

15

CAP, ALTERNATOR

90084-471-000

Unavailable

16

CAP (30MM) This part replaces 90087-428-000.

90087-KF9-900

Unavailable

17

OIL SEAL (12X25X7)

91201-362-000

$5.55

18

O-RING (27X2.0)

91301-028-000

$2.92

18

O-RING (27X2) (ARAI) This part replaces 91305-KF0-000.

91305-KF0-003

$2.92

18

O-RING (27X2) (ARAI)

91305-KF0-003

$2.92

19

O-RING (13.8X2.5)

91303-MG7-003

$3.12

19

O-RING (13.8X2.5)

91303-377-000

$3.42

19

O-RING (13.8X2.5) This part replaces 91303-426-000.

91303-MG7-003

$3.12

20

O-RING (7X1.7)

91312-107-000

$3.18

21

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

21

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

21

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

22

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.23

23

SCREW, PAN (6X18) This part replaces 93500-06018.

93500-06018-0A

$1.49

23

SCREW, PAN (6X18)

93500-06018-0A

$1.49

24

SCREW, PAN (6X40) This part replaces 93500-06040.

93500-06040-0A

$1.49

24

SCREW, PAN (6X40)

93500-06040-0A

$1.49

25

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

26

PIN, DOWEL (10X16)

94301-10160

$2.28

27

BOLT, FLANGE (6X25)

96000-06025-00

$2.00

27

BOLT, FLANGE (6X25)

96001-06025-00

$2.00

28

BOLT, FLANGE (6X40) This part replaces 96000-06040-00.

96001-06040-00

$2.16

28

BOLT, FLANGE (6X40)

96001-06040-00

$2.16
