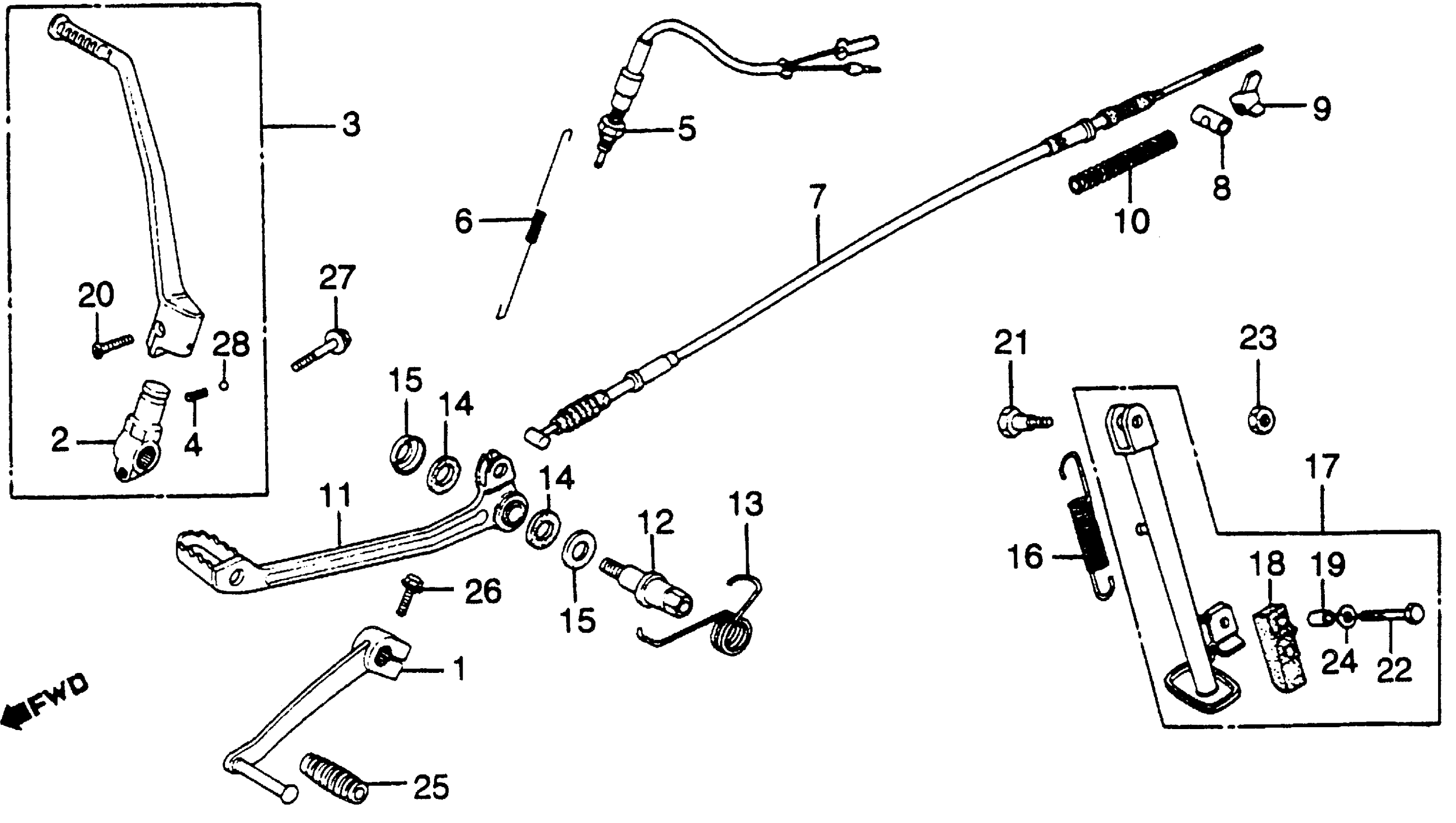

Honda XL500SA (81) MOTORCYCLE, JPN, VIN# JH2PD010-BM200001 TO JH2PD010-BM207756 KICK STARTER ARM + SHIFT PEDALS + BRAKE PEDALS Diagram

#

Description
Price

1

PEDAL, GEARSHIFT (NOT AVAILABLE)

24700-428-730

Unavailable

2

JOINT, KICK ARM (NOT AVAILABLE)

28241-428-871

Unavailable

3

ARM ASSY., KICK STARTER (NOT AVAILABLE)

28300-435-770

Unavailable

4

SPRING, KICK STARTER STOPPER

28333-124-000

$2.26

5

SWITCH ASSY., RR. STOP (TOYO) (NOT AVAILABLE)

35350-KB7-000

Unavailable

5

SWITCH ASSY., RR. STOP (TOYO) (NOT AVAILABLE) This part replaces 35350-435-003.

35350-KB7-000

Unavailable

6

SPRING, STOP SWITCH This part replaces 35357-428-000.

35357-MA2-610

Unavailable

7

CABLE, RR. BRAKE (NOT AVAILABLE)

43450-428-870

Unavailable

9

NUT, BRAKE ADJUSTING

43459-434-000

$15.27

10

SPRING A, BRAKE CABLE

45452-044-300

Unavailable

11

PEDAL, BRAKE (NOT AVAILABLE) This part replaces 46500-428-000.

46500-428-610

Unavailable

11

PEDAL, BRAKE (NOT AVAILABLE)

46500-428-610

Unavailable

12

SHAFT, RR. BRAKE

46515-429-000

$26.56

13

SPRING, BRAKE PEDAL This part replaces 46514-429-000.

46514-428-900

Unavailable

14

DUST SEAL, BRAKE PEDAL (NOT AVAILABLE)

46516-430-000

Unavailable

15

WASHER, BRAKE PIVOT (NOT AVAILABLE)

46518-361-000

Unavailable

16

SPRING, SIDE STAND This part replaces 50535-429-000.

50535-KN5-670

$6.54

17

BAR ASSY., SIDE STAND (NOT AVAILABLE)

50540-428-670

Unavailable

18

RUBBER, STAND

50548-356-700

$10.50

19

COLLAR, STAND RUBBER SETTING

50549-356-700

$2.70

20

BOLT, KICK ARM

90101-329-000

$3.67

21

SCREW, SIDE STAND PIVOT

90108-283-000

$7.72

22

BOLT, HEX. (6X28) This part replaces 92000-06028.

92101-06028-0A

$1.49

22

BOLT, HEX. (6X28)

92101-06028-0A

$1.49

23

NUT, HEX. (10MM)

94030-10000

$1.49

24

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

24

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

24

WASHER, PLAIN (6MM)

94101-06800

$1.49

25

RUBBER, GEARSHIFT PEDAL

24781-419-000

$5.62

26

BOLT, FLANGE (6X20) This part replaces 95700-06020-00.

95701-06020-00

$1.55

26

BOLT, FLANGE (6X20)

95701-06020-00

$1.55

27

BOLT, FLANGE (8X28) This part replaces 95700-08028-00.

95701-08028-00

$1.49

27

BOLT, FLANGE (8X28)

95701-08028-00

$1.49

28

BALL, STEEL (#8) (1/4)

96211-08000

$1.49
