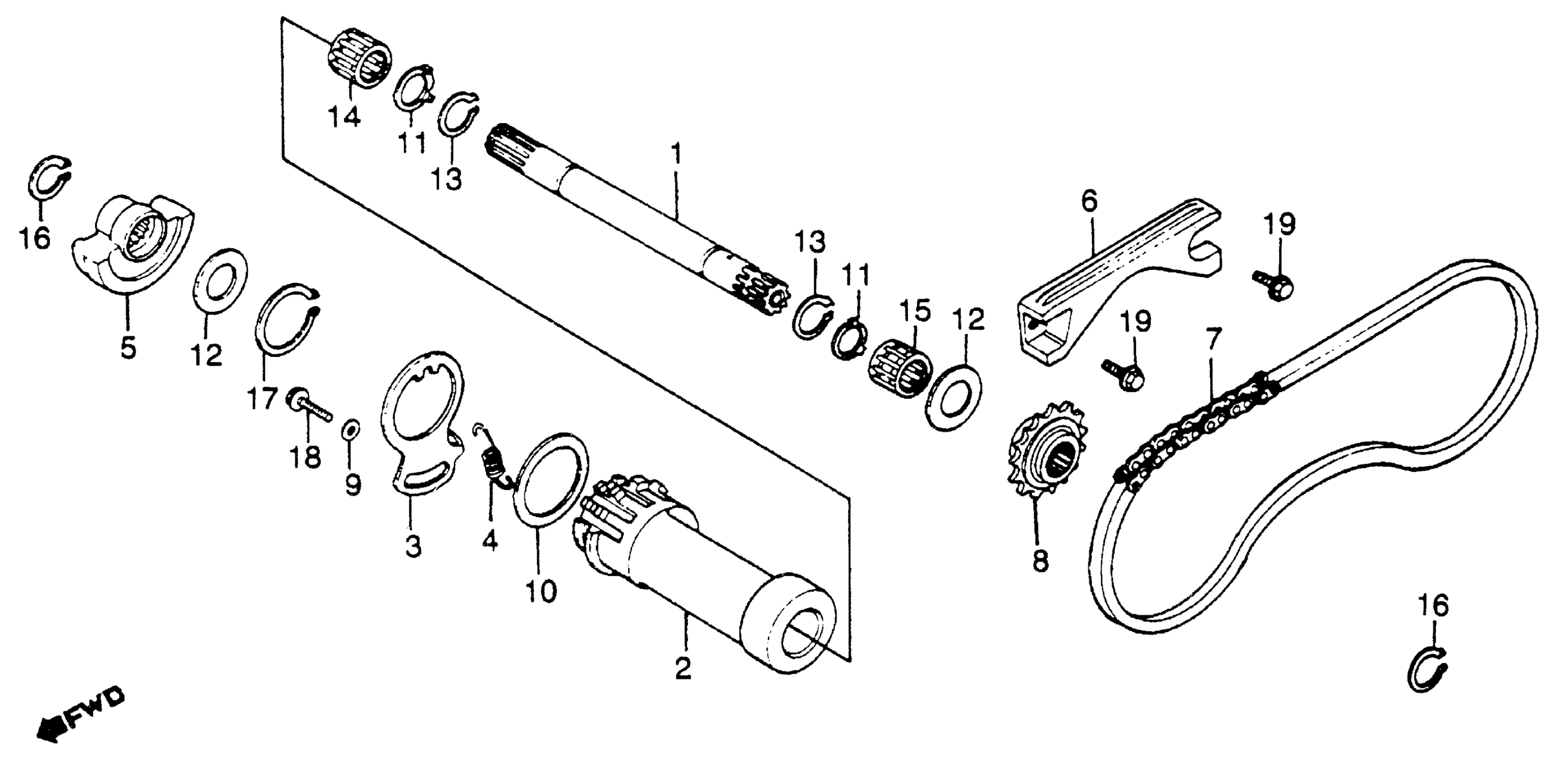

Honda XL500SA (81) MOTORCYCLE, JPN, VIN# JH2PD010-BM200001 TO JH2PD010-BM207756 FRONT BALANCER Diagram

#

Description
Price

1

SHAFT, BALANCER (NOT AVAILABLE)

13411-471-000

Unavailable

2

HOLDER, BALANCER SHAFT (NOT AVAILABLE)

13412-429-000

Unavailable

3

FLANGE, BALANCER HOLDER (NOT AVAILABLE) This part replaces 13413-429-000.

13413-429-010

Unavailable

3

FLANGE, BALANCER HOLDER (NOT AVAILABLE)

13413-429-010

Unavailable

4

SPRING, CHAIN ADJUSTING (NOT AVAILABLE)

13414-428-000

Unavailable

5

WEIGHT, FR. BALANCER (NOT AVAILABLE)

13421-429-000

Unavailable

6

SLIPPER, BALANCER CHAIN (NOT AVAILABLE)

13430-429-000

Unavailable

7

CHAIN, BALANCER This part replaces 13440-429-003.

23100-GE0-003

Unavailable

8

SPROCKET, FR. BALANCER (NOT AVAILABLE)

13610-429-010

Unavailable

9

WASHER, SPECIAL (22X8.5X2) (NOT AVAILABLE)

90436-611-000

Unavailable

11

WASHER, SPECIAL (20MM) (NOT AVAILABLE)

90456-428-000

Unavailable

12

WASHER, THRUST (20MM)

90458-292-000

$3.54

13

SET-RING (20MM)

90605-200-000

$2.92

14

BEARING, NEEDLE (20X26X20)

91011-P48-008

Unavailable

14

BEARING, NEEDLE (20X26X20) This part replaces 91011-428-008.

91011-P48-008

Unavailable

15

BEARING, NEEDLE (20X26X17) (TOYO) This part replaces 91012-428-008.

91012-471-008

Unavailable

16

CIRCLIP, OUTER (20MM)

94510-20000

$1.49

17

CIRCLIP (OUTER) (38MM)

94510-38000

$2.28

18

BOLT, FLANGE (8X20) This part replaces 95700-08020-00.

95701-08020-00

$1.78

18

BOLT, FLANGE (8X20)

95701-08020-00

$1.78

19

BOLT, FLANGE (6X14) This part replaces 96000-06014-00.

96001-06014-00

$1.72

19

BOLT, FLANGE (6X14)

96001-06014-00

$1.72
