- XL500SA (81) MOTORCYCLE, JPN, VIN# JH2PD010-BM200001 TO JH2PD010-BM207756
CRANKSHAFT + PISTON

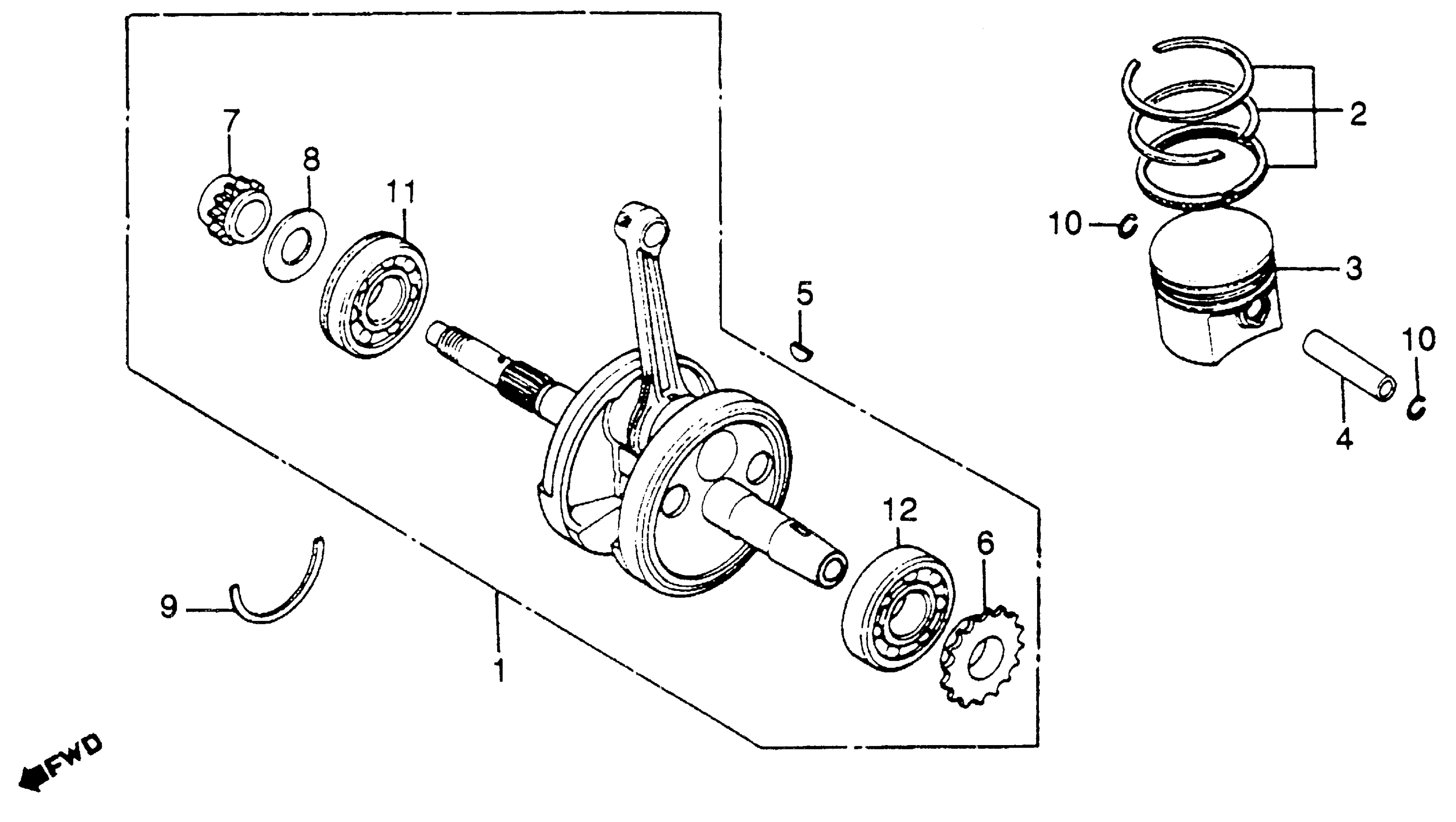

Honda XL500SA (81) MOTORCYCLE, JPN, VIN# JH2PD010-BM200001 TO JH2PD010-BM207756 CRANKSHAFT + PISTON Diagram
#
Description
Price
1
CRANKSHAFT This part replaces 13000-429-000.
13000-MC8-405
Unavailable
1
CRANKSHAFT
13000-MC8-405
Unavailable
2
RING SET, PISTON (STD) (TEIKOKU) This part replaces 13011-429-003.
13011-429-005
Unavailable
2
RING SET, PISTON (STD) (TEIKOKU)
13011-429-005
Unavailable
2
RING SET, PISTON (OS 0.25) (TEIKOKU) | (Optional). This part replaces 13021-429-003.
13021-429-005
Unavailable
2
RING SET, PISTON (OVER SIZE) (0.25) (TEIKOKU) | (Optional).
13021-429-005
Unavailable
2
RING SET, PISTON (OS 0.50) (TEIKOKU) | (Optional). This part replaces 13031-429-003.
13031-429-005
Unavailable
2
RING SET, PISTON (OVER SIZE) (0.50) (TEIKOKU) (NOT AVAILABLE) | (Optional).
13031-429-005
Unavailable
3
PISTON (STD) (NOT AVAILABLE) This part replaces 13101-429-003.
13101-MA0-000
Unavailable
3
PISTON (OVER SIZE) (0.25) (NOT AVAILABLE) | (Optional).
13102-429-000
Unavailable
3
PISTON (OVER SIZE) (0.50) (NOT AVAILABLE) | (Optional).
13103-429-000
Unavailable
4
PIN, PISTON (NOT AVAILABLE)
13111-429-000
Unavailable
6
SPROCKET, BALANCER DRIVE (NOT AVAILABLE)
13621-429-300
Unavailable
7
SPROCKET, TIMING (19T) (NOT AVAILABLE)
14312-428-300
Unavailable
8
WASHER (23MM) (NOT AVAILABLE)
90455-428-000
Unavailable
9
SET-RING (80MM) (NOT AVAILABLE)
90601-429-000
Unavailable
10
CLIP, PISTON PIN
90602-429-000
Unavailable
11
BEARING, RADIAL BALL This part replaces 91001-429-003.
91001-KC4-004
Unavailable
11
BEARING, RADIAL BALL This part replaces 91001-429-004.
91001-KC4-004
Unavailable
12
BEARING, RADIAL BALL This part replaces 91002-429-003.
91001-KC4-004
Unavailable
12
BEARING, RADIAL BALL This part replaces 91002-429-004.
91001-KC4-004
Unavailable
