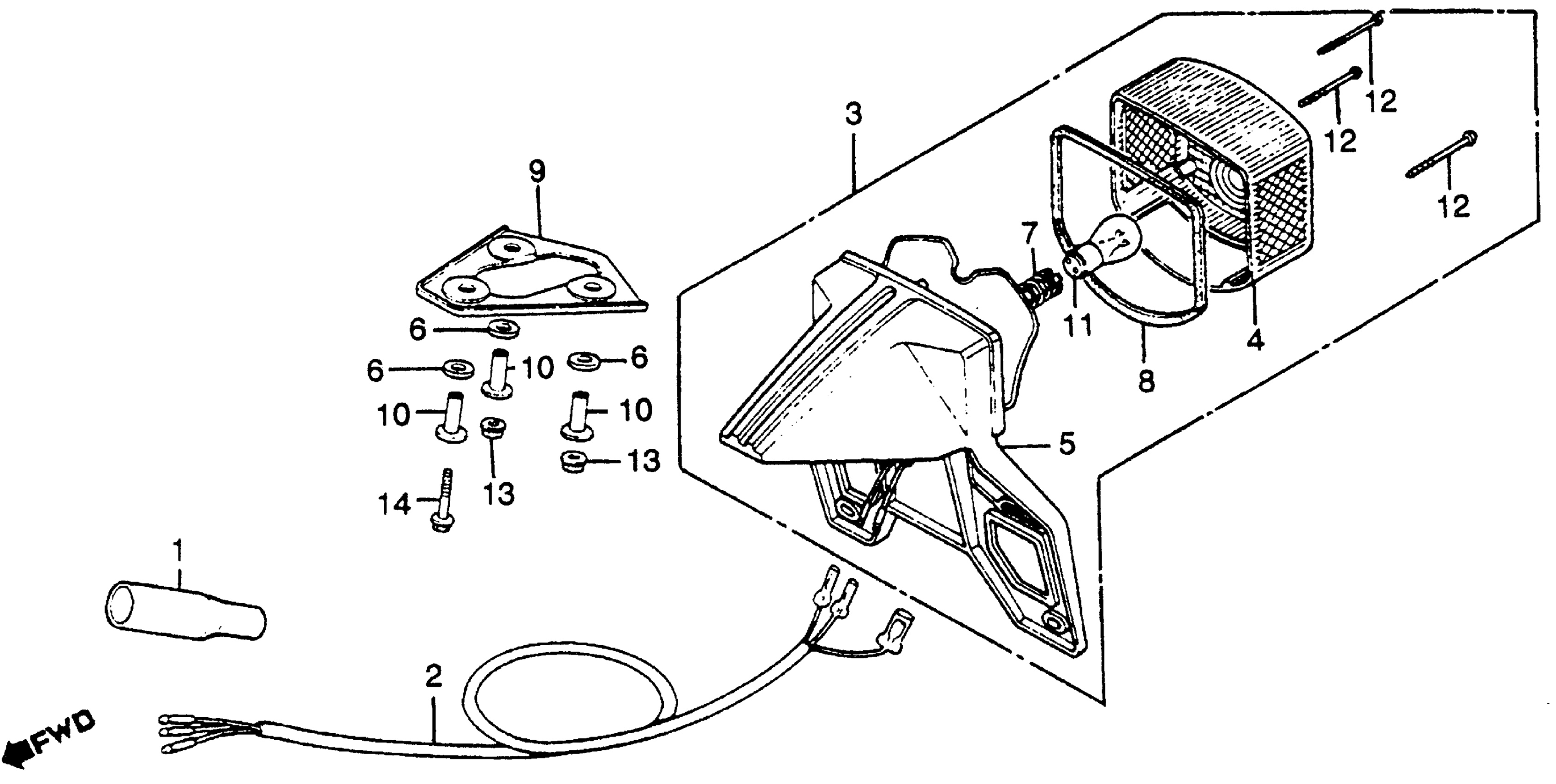

Honda XL500SA (80) MOTORCYCLE, JPN, VIN# PD01-5100001 TO PD01-5108715 XL500S TAILLIGHT 79-81 Diagram

COVER, WIRE HARNESS CONNECTOR

32108-046-000

Unavailable

SUB-WIRE, TAILLIGHT

32101-KY0-980

Unavailable

SUB-WIRE, TAILLIGHT This part replaces 32200-428-000.

32101-KY0-980

Unavailable

TAILLIGHT ASSY. (NOT AVAILABLE) This part replaces 33700-428-672.

33700-428-673

Unavailable

TAILLIGHT ASSY. (NOT AVAILABLE)

33700-428-673

Unavailable

LENS, TAILLIGHT (NOT AVAILABLE)

33702-329-671

Unavailable

SOCKET, TAILLIGHT (NOT AVAILABLE) This part replaces 33703-428-672.

33703-428-673

Unavailable

SOCKET, TAILLIGHT (NOT AVAILABLE)

33703-428-673

Unavailable

RUBBER, TAILLIGHT FENDER (NOT AVAILABLE)

33704-435-000

Unavailable

WIRE, TAILLIGHT (STANLEY)

33705-147-671

Unavailable

GASKET, TAILLIGHT LENS

33709-092-671

$3.30

SEAT, RUBBER BASE This part replaces 33712-435-000.

33712-428-003

Unavailable

COLLAR, TAILLIGHT (NOT AVAILABLE)

33713-435-000

Unavailable

BULB, STOP & TAILLIGHT (6V32/3CP)

34906-329-671

$6.49

SCREW, TAPPING (4X75)

90147-428-003

Unavailable

NUT, FLANGE (6MM)

94050-06000

$1.49

BOLT, FLANGE (6X28)

95700-06028-00

$1.73

BOLT, FLANGE (6X28)

95701-06028-00

$1.73
