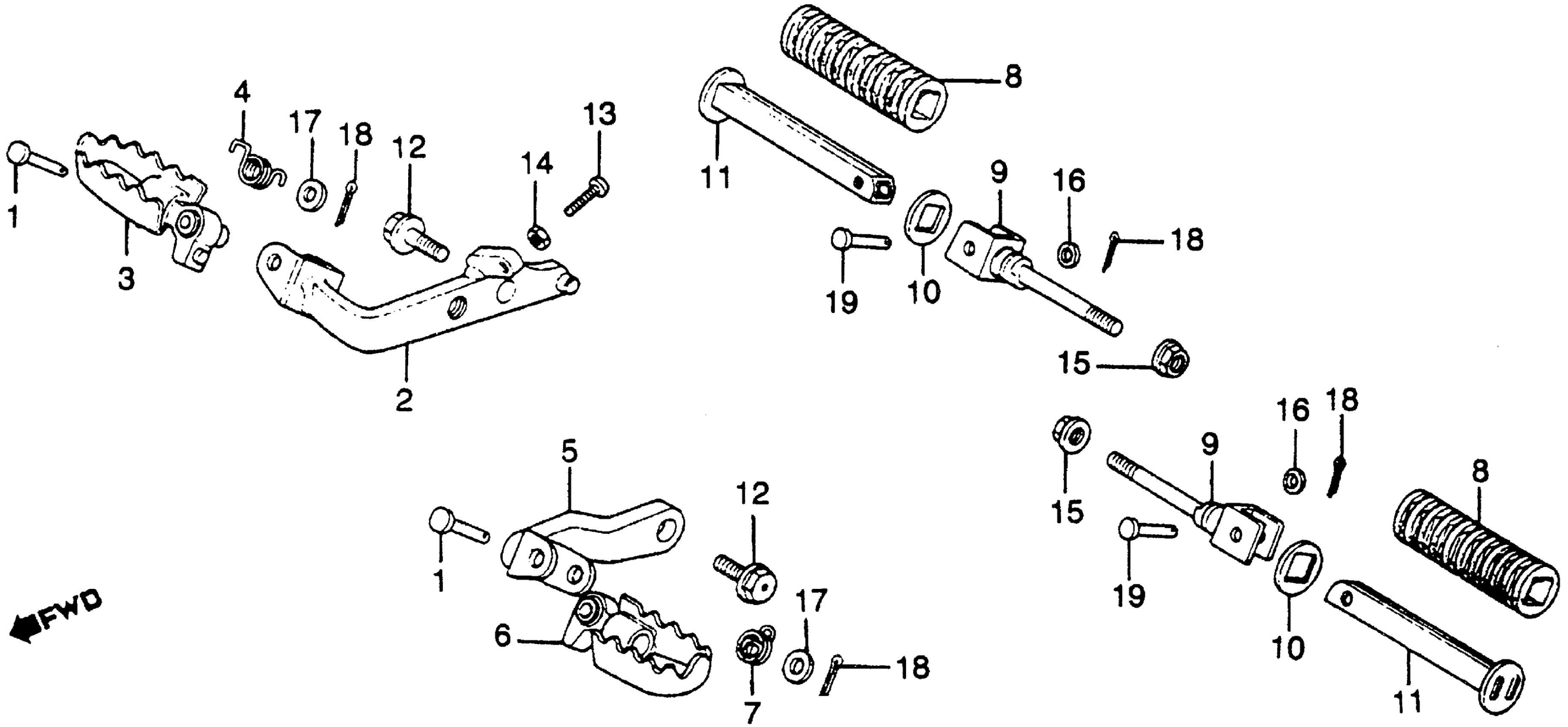

Honda XL500SA (80) MOTORCYCLE, JPN, VIN# PD01-5100001 TO PD01-5108715 XL500S STEP 79-81 Diagram

#

Description
Price

1

PIN, STEP JOINT (NOT AVAILABLE) This part replaces 50603-435-000.

50603-HA0-680

Unavailable

2

ARM, R. STEP (NOT AVAILABLE)

50615-435-000

Unavailable

3

FOOTPEG, R. (NOT AVAILABLE)

50616-435-000

Unavailable

4

SPRING, R. STEP RETURN

50617-MC4-000

Unavailable

4

SPRING, R. STEP RETURN This part replaces 50617-435-000.

50617-MC4-000

Unavailable

5

ARM, L. STEP (NOT AVAILABLE)

50624-435-000

Unavailable

6

FOOTPEG, L. (NOT AVAILABLE)

50642-435-000

Unavailable

7

SPRING, L. STEP RETURN

50644-MC4-000

Unavailable

7

SPRING, L. STEP RETURN This part replaces 50644-435-000.

50644-MC4-000

Unavailable

8

RUBBER, PILLION FOOTPEG This part replaces 50710-377-000.

50716-371-660

$14.21

8

RUBBER, PILLION FOOTPEG

50716-371-660

$14.21

9

BRACKET, PILLION STEP (NOT AVAILABLE)

50711-435-000

Unavailable

10

WASHER, PILLION STEP

50712-413-000

$3.47

11

BAR, PILLION STEP (COO) This part replaces 50715-413-000.

50715-413-305

$17.81

12

BOLT, FOOTPEG SETTING

90130-429-000

Unavailable

13

SCREW, PAN (6X25) This part replaces 93500-06025.

93500-06025-0A

$1.49

13

SCREW, PAN (6X25)

93500-06025-0A

$1.49

14

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

14

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

14

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

14

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

14

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

14

NUT, HEX. (6MM)

94001-06200-0S

$1.49

14

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

15

NUT, FLANGE (10MM)

94050-10000

$1.59

16

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

16

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

16

WASHER, PLAIN (6MM)

94101-06800

$1.49

17

WASHER, PLAIN (8MM)

94101-08000

$1.49

18

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

18

PIN, COTTER (1.6X25)

94201-16250

$1.49

19

PIN A, PILLION STEP

95015-81000

$2.21
