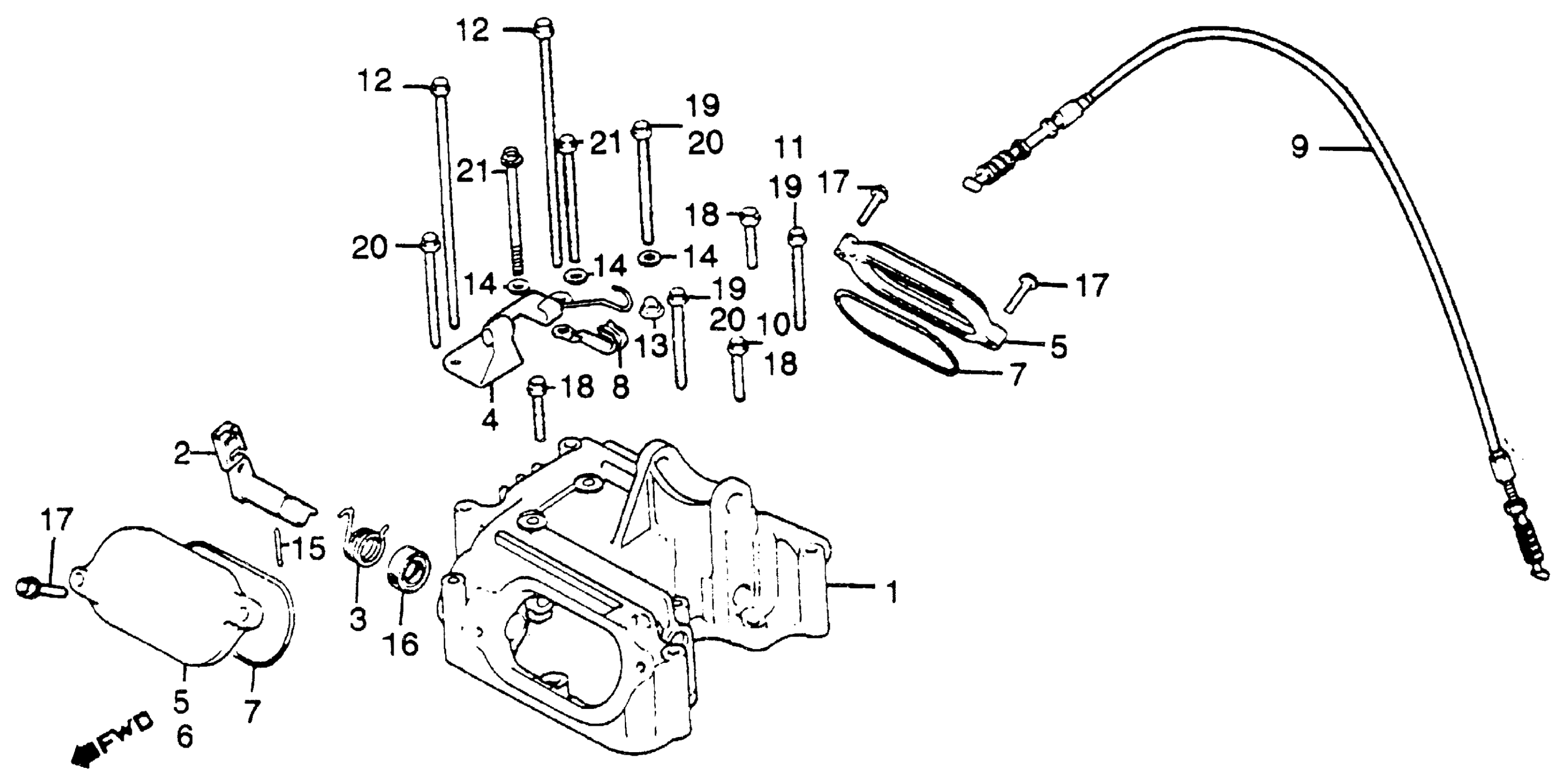

Honda XL500SA (80) MOTORCYCLE, JPN, VIN# PD01-5100001 TO PD01-5108715 CYLINDER HEAD COVER + DECOMPRESSION CABLE Diagram

#

Description
Price

1

COVER, CYLINDER HEAD (NOT AVAILABLE) This part replaces 12310-428-305.

12310-428-325

Unavailable

1

COVER, CYLINDER HEAD (NOT AVAILABLE)

12310-428-325

Unavailable

2

LIFTER, VALVE

12319-428-000

Unavailable

3

SPRING, VALVE LIFT (NOT AVAILABLE)

12321-428-000

Unavailable

4

RECEIVER, DECOMPRESSION (NOT AVAILABLE)

12323-428-000

Unavailable

5

COVER, TAPPET ADJUSTING HOLE

12351-428-000

$37.87

7

GASKET, TAPPET COVER (KOYO)

12392-HC4-005

$3.92

7

GASKET, TAPPET COVER (KOYO) This part replaces 12392-428-000.

12392-HC4-005

$3.92

8

CLAMP, CLUTCH CABLE (NOT AVAILABLE)

22825-429-000

Unavailable

9

CABLE, DECOMPRESSION (NOT AVAILABLE)

28291-429-000

Unavailable

12

BOLT, FLANGE (6X140) This part replaces 90048-MC8-000.

95701-06140-00

$2.92

12

BOLT, FLANGE (6X140) This part replaces 90048-429-000.

95701-06140-00

$2.92

12

BOLT, FLANGE (6X140)

95701-06140-00

$2.92

13

NUT, CAP (6MM)

90201-415-000

$2.05

15

PIN, DOWEL (5X28)

91101-428-000

$3.83

16

OIL SEAL (17X27X5) (KOYO) This part replaces 91201-428-005.

91202-HC5-005

$3.56

16

OIL SEAL (17X27X5) (KOYO)

91202-HC5-005

$3.56

17

BOLT, FLANGE (6X20) This part replaces 95700-06020-00.

95701-06020-00

$1.55

17

BOLT, FLANGE (6X20)

95701-06020-00

$1.55

18

BOLT, FLANGE (6X25) This part replaces 95700-06025-00.

95701-06025-00

$1.80

18

BOLT, FLANGE (6X25)

95701-06025-00

$1.80

19

BOLT, FLANGE (6X45) This part replaces 95700-06045-00.

95701-06045-07

$2.06

19

BOLT, FLANGE (6X45) This part replaces 95701-06045-00.

95701-06045-07

$2.06

19

BOLT, FLANGE (6X45)

95701-06045-07

$2.06

20

BOLT, FLANGE (6X50) This part replaces 95700-06050-00.

95701-06050-00

$2.06

20

BOLT, FLANGE (6X50)

95701-06050-00

$2.06

21

BOLT, FLANGE (6X60) This part replaces 95700-06060-00.

95701-06060-00

$1.49

21

BOLT, FLANGE (6X60)

95701-06060-00

$1.49
