Partiron

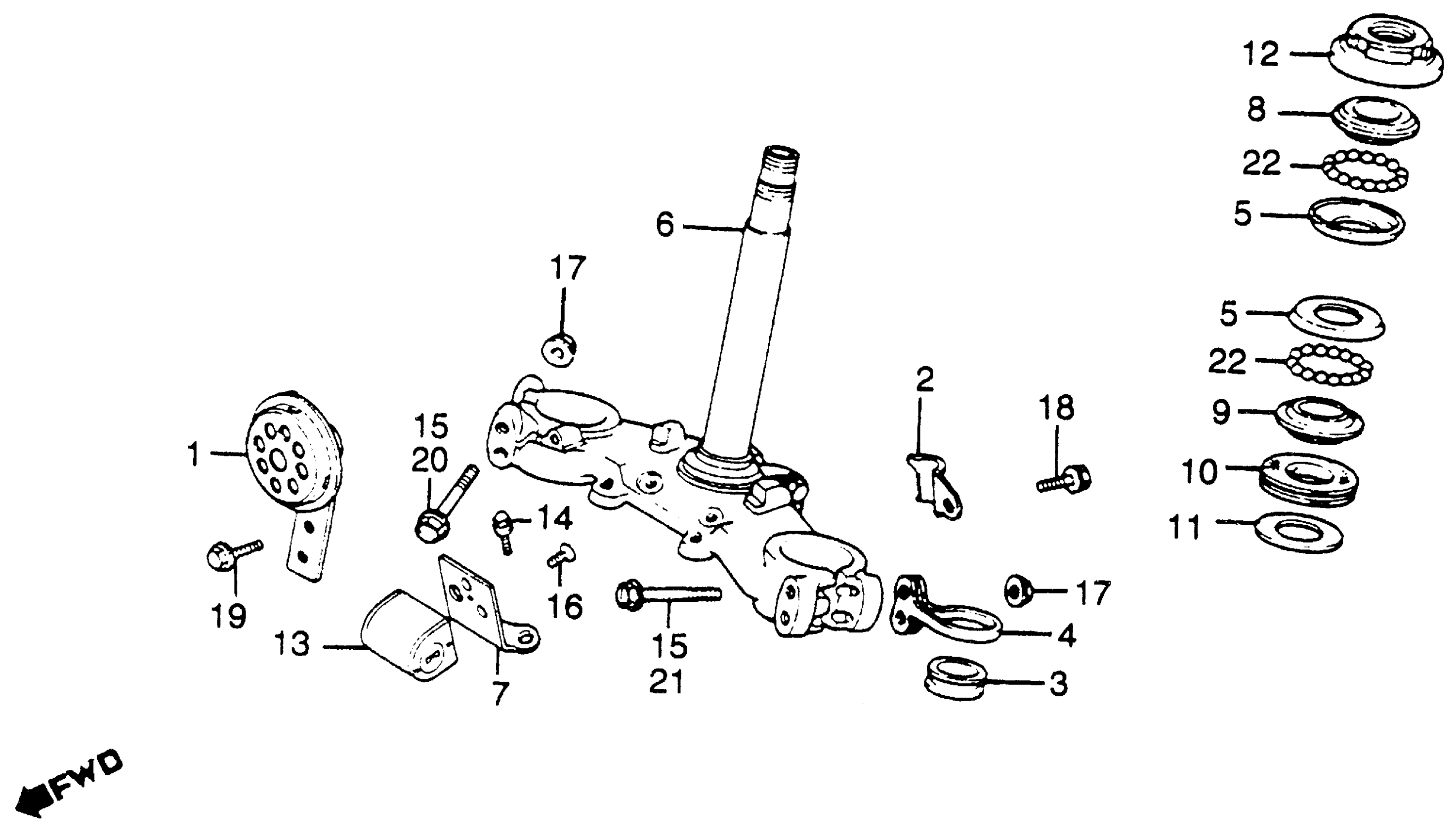

Honda XL500SA (79) MOTORCYCLE, JPN, VIN# PD01-5000054 TO PD01-5009657 XL500S STEERING STEM + HORN 79-81 Diagram

#

Description
Price

1

HORN (NOT AVAILABLE)

38110-435-000

Unavailable

2

CLAMP, SPEEDOMETER CABLE (NOT AVAILABLE)

45465-428-000

Unavailable

3

INNER, CABLE GUIDE

45466-329-000

$2.80

4

GUIDE B, BRAKE CABLE (NOT AVAILABLE)

45468-428-000

Unavailable

5

RACE, STEERING TOP BALL This part replaces 50301-268-000.

50301-268-010

$19.29

5

RACE, STEERING TOP BALL

50301-268-010

$19.29

6

STEM, STEERING (NOT AVAILABLE)

53200-429-000

Unavailable

7

HOLDER, LOCK (NOT AVAILABLE)

53203-428-000

Unavailable

8

RACE, STEERING TOP CONE This part replaces 53211-268-000.

53211-268-010

$23.45

8

RACE, STEERING TOP CONE

53211-268-010

$23.45

9

RACE, STEERING CONE (LOWER) This part replaces 53212-200-000.

53212-200-305

$17.77

9

RACE, STEERING CONE (LOWER)

53212-200-305

$17.77

10

DUST SEAL, STEERING HEAD

53214-200-000

$2.80

11

WASHER, STEERING HEAD DUST SEAL

53215-200-000

$1.61

12

THREAD, STEERING HEAD (UPPER)

53220-286-000

Unavailable

13

LOCK, HANDLEBAR

53600-086-007

$43.61

13

LOCK, HANDLEBAR This part replaces 53600-126-921.

53600-086-007

$43.61

14

BOLT B, SPECIAL (6MM) This part replaces 90106-428-000.

90107-195-860

Unavailable

14

BOLT B, SPECIAL (6MM)

90107-195-860

Unavailable

14

BOLT B, SPECIAL (6MM) This part replaces 90107-428-000.

90107-195-860

Unavailable

15

BOLT, FLANGE (8X57) (NOT AVAILABLE)

90125-428-000

Unavailable

16

SCREW, U-LOCK FLAT (6X12)

90164-028-000

$1.64

17

NUT, FLANGE (8MM) This part replaces 90303-369-000.

94050-08020

$1.83

17

NUT, FLANGE (8MM)

94050-08020

$1.83

18

BOLT, FLANGE (6X10) This part replaces 95700-06010-00.

95701-06010-00

$1.14

18

BOLT, FLANGE (6X10)

95701-06010-00

$1.14

19

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.81

19

BOLT, FLANGE (6X12)

95701-06012-00

$1.81

22

BALL, STEEL (#8) (1/4)

96211-08000

$1.13
