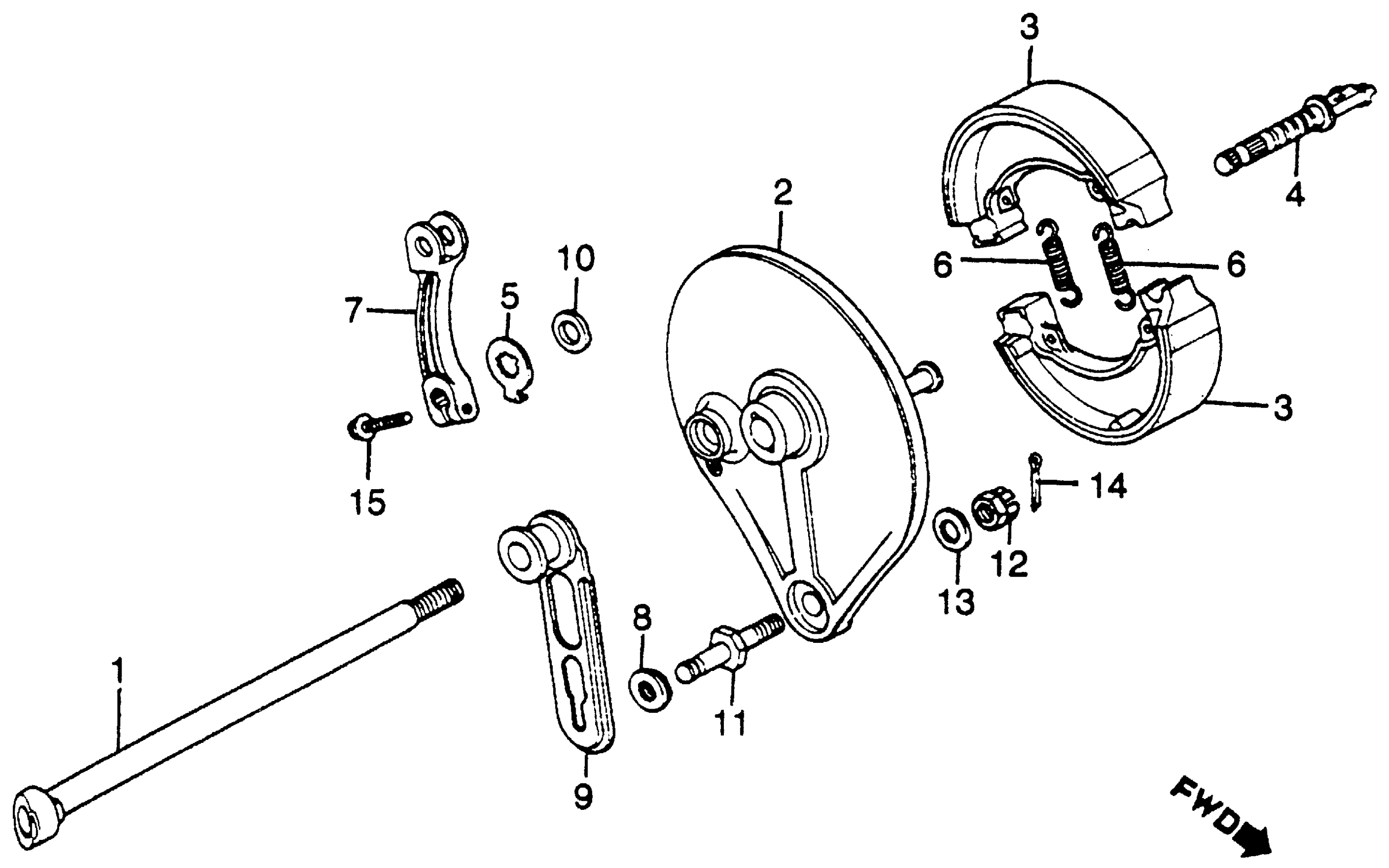

Honda XL500SA (79) MOTORCYCLE, JPN, VIN# PD01-5000054 TO PD01-5009657 XL500S REAR BRAKE PANEL 79-81 Diagram

#

Description
Price

1

AXLE, RR. WHEEL (NOT AVAILABLE)

42301-429-000

Unavailable

2

PANEL, RR. BRAKE (NOT AVAILABLE)

43100-435-000

Unavailable

3

SHOE SET, BRAKE

06430-GBJ-740

$40.71

3

SHOE SET, BRAKE This part replaces 43120-429-000.

06430-GBJ-740

$40.71

3

SHOE SET, BRAKE This part replaces 43120-429-010.

06430-GBJ-740

$40.71

4

CAM, RR. BRAKE This part replaces 43141-429-000.

43141-ME4-000

Unavailable

4

CAM, RR. BRAKE

43141-ME4-000

Unavailable

4

CAM, RR. BRAKE This part replaces 43141-399-010.

43141-ME4-000

Unavailable

5

INDICATOR, RR. BRAKE

43145-MM9-000

Unavailable

5

INDICATOR, RR. BRAKE This part replaces 43145-130-650.

43145-MM9-000

Unavailable

6

SPRING, BRAKE SHOE

43151-329-000

$2.75

7

ARM, RR. BRAKE This part replaces 43410-429-000.

43410-MA0-000

Unavailable

7

ARM, RR. BRAKE This part replaces 43410-435-000.

43410-MA0-000

Unavailable

8

RUBBER, STOPPER ARM CUSHION (NOT AVAILABLE)

43434-429-000

Unavailable

9

STOPPER, BRAKE ARM (NOT AVAILABLE)

43435-429-000

Unavailable

10

DUST SEAL, BRAKE CAM

45134-250-000

$2.92

11

BOLT, RR. BRAKE STOPPER (NOT AVAILABLE)

90127-429-000

Unavailable

12

NUT, CASTLE (10MM) (NOT AVAILABLE)

94012-10200-0S

Unavailable

13

WASHER, PLAIN (10MM)

94102-10000

$1.49

14

PIN, COTTER (2.0X22) This part replaces 94201-20200.

94201-29220

$1.49

14

PIN, SPLIT (2.0X22)

94201-20220

$1.49

14

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.49

14

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.49

14

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.49

14

PIN, SPLIT (2.0X35)

94201-20350

$1.49

14

PIN, COTTER (2.0X22)

94201-29220

$1.49

15

BOLT, FLANGE (6X25) This part replaces 95700-06025-00.

95701-06025-00

$1.80

15

BOLT, FLANGE (6X25)

95701-06025-00

$1.80
