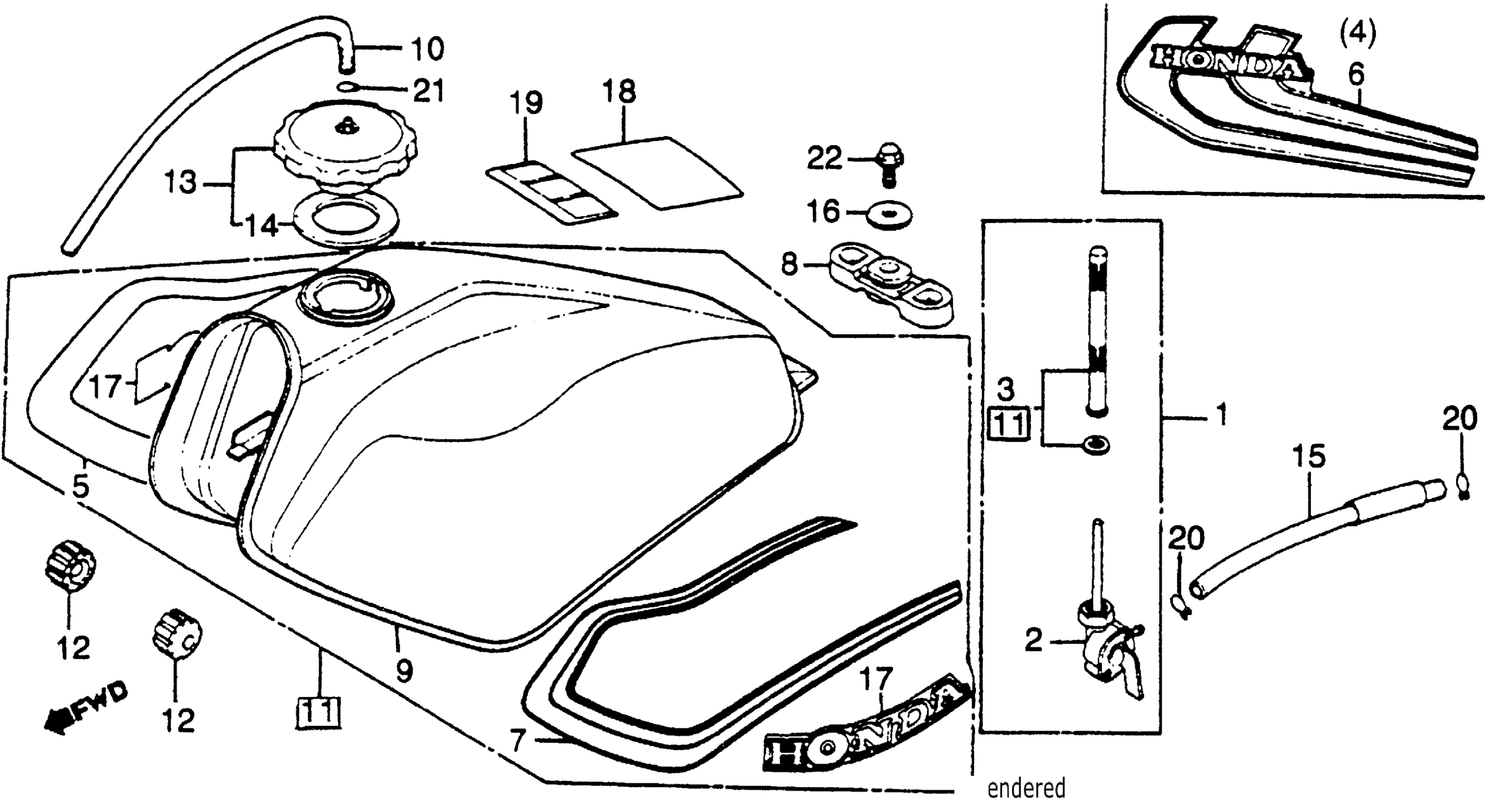

Honda XL500SA (79) MOTORCYCLE, JPN, VIN# PD01-5000054 TO PD01-5009657 XL500S FUEL TANK 79-81 Diagram

PETCOCK ASSY. (NOT AVAILABLE) This part replaces 16950-434-005.

16950-434-015

Unavailable

PETCOCK ASSY. (NOT AVAILABLE)

16950-434-015

Unavailable

BODY, PETCOCK (NOT AVAILABLE) This part replaces 16951-434-005.

16951-434-015

Unavailable

BODY, PETCOCK (NOT AVAILABLE)

16951-434-015

Unavailable

SCREEN SET, FUEL STRAINER (NOT AVAILABLE)

16952-434-005

Unavailable

STRIPE, R. FUEL TANK *A69* (A.M.) (SPECIFIED YELLOW AND BLACK) (NOT AVAILABLE)

17506-435-300ZA

Unavailable

STRIPE, L. FUEL TANK *A69* (A.M.) (SPECIFIED YELLOW AND BLACK) (NOT AVAILABLE)

17507-435-300ZA

Unavailable

RUBBER, RR. FUEL TANK SETTING (NOT AVAILABLE)

17509-429-000

Unavailable

TANK SUB-ASSY., FUEL *R23* (TAHITIAN RED) (NOT AVAILABLE)

17520-435-000ZA

Unavailable

TUBE, FUEL CAP BREATHER

17521-429-000

$6.98

CUSHION, FR. FUEL TANK

17611-MG2-000

$11.43

CUSHION, FR. FUEL TANK This part replaces 17611-429-000.

17611-MG2-000

$11.43

CAP, FUEL FILLER (NOT AVAILABLE)

17620-434-010

Unavailable

GASKET This part replaces 17631-VM6-300.

17631-899-010

$6.32

GASKET This part replaces 17631-434-310.

17631-899-010

$6.32

GASKET This part replaces 17631-899-000.

17631-899-010

$6.32

GASKET This part replaces 17631-958-680.

17631-899-010

$6.32

TUBE, FUEL (NOT AVAILABLE)

17681-429-000

Unavailable

WASHER, FR. COVER SETTING

64347-001-000

$2.10

LABEL, ACCESSORIES & LOADING CAUTION (NOT AVAILABLE)

87512-387-770

Unavailable

MARK, DRIVE CAUTION (TYPEB) This part replaces 87560-375-680B.

87560-375-680ZE

Unavailable

MARK, DRIVE CAUTION (TYPEB) This part replaces 87560-375-680ZB.

87560-375-680ZE

Unavailable

MARK, DRIVE CAUTION (TYPEB)

87560-375-680ZE

Unavailable

CLIP, TUBE (B10)

95002-02100

$1.90

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

BOLT, FLANGE (6X12)

95701-06012-00

$1.62
