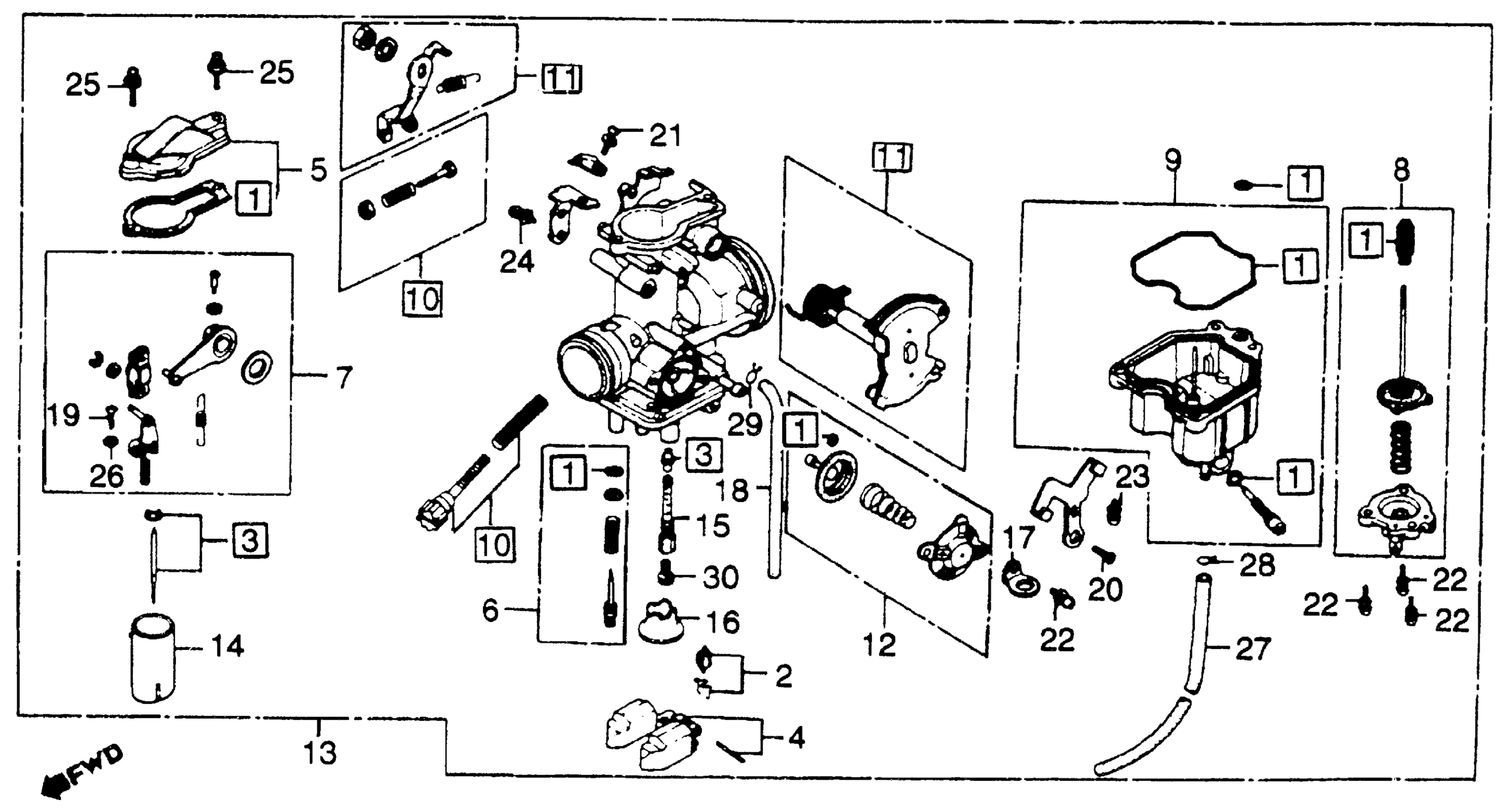

Honda XL500SA (79) MOTORCYCLE, JPN, VIN# PD01-5000054 TO PD01-5009657 XL500S CARBURETOR 79-81 Diagram

#

Description
Price

1

GASKET SET (NOT AVAILABLE)

16010-435-671

Unavailable

2

VALVE SET, FLOAT

16011-KCK-910

$30.36

2

VALVE SET, FLOAT This part replaces 16011-382-004.

16011-KCK-910

$30.36

3

NEEDLE SET, JET (NOT AVAILABLE)

16012-435-671

Unavailable

4

FLOAT SET

16013-KCY-670

$58.55

4

FLOAT SET This part replaces 16013-393-004.

16013-KCY-670

$58.55

5

TOP SET (NOT AVAILABLE)

16014-KW3-014

Unavailable

5

TOP SET (NOT AVAILABLE) This part replaces 16014-429-671.

16014-KW3-014

Unavailable

5

TOP SET (NOT AVAILABLE) This part replaces 16014-429-771.

16014-KW3-014

Unavailable

6

SCREW SET A

16016-410-601

Unavailable

7

ARM SET, LINK

16018-428-671

$106.68

8

DIAPHRAGM SET, PUMP (NOT AVAILABLE)

16021-428-671

Unavailable

9

CHAMBER SET, FLOAT

16015-428-771

Unavailable

9

CHAMBER SET, FLOAT This part replaces 16023-426-003.

16015-428-771

Unavailable

10

SCREW SET B (NOT AVAILABLE)

16028-435-671

Unavailable

11

LINK SET, THROTTLE (NOT AVAILABLE)

16032-435-671

Unavailable

12

VALVE SET, AIR CUT This part replaces 16048-429-671.

16048-443-901

Unavailable

12

VALVE SET, AIR CUT This part replaces 16048-429-771.

16048-443-901

Unavailable

12

VALVE SET, AIR CUT

16048-443-901

Unavailable

13

CARBURETOR ASSY. This part replaces 16100-435-673.

16100-435-674

Unavailable

13

CARBURETOR ASSY.

16100-435-674

Unavailable

14

VALVE, THROTTLE (NOT AVAILABLE)

16111-435-671

Unavailable

15

HOLDER, NEEDLE JET (NOT AVAILABLE)

16165-435-004

Unavailable

16

HOLDER, JET

16168-382-014

$8.03

17

BINDER (NOT AVAILABLE)

16179-428-671

Unavailable

18

PIPE, AIR VENT

16199-428-405

$2.88

18

TUBE, AIR VENT This part replaces 16199-428-671.

16199-428-405

$2.88

19

SCREW, PAN (3X8)

93500-03008-0H

$0.67

20

SCREW, FLAT (5X10)

93600-05010-0H

$0.61

21

SCREW-WASHER (4X8)

93892-04008-08

$1.04

22

SCREW-WASHER (4X12)

93892-04012-08

$0.58

23

SCREW-WASHER (4X16)

93892-04016-08

$0.67

24

SCREW-WASHER (5X10)

93892-05010-08

$1.04

25

SCREW-WASHER (4X18) (NOT AVAILABLE)

93893-04018-08

Unavailable

26

WASHER, SPRING (3MM)

94111-03800

$0.59

27

BULK HOSE, FUEL (3.5X3000) (3.5X330)

95001-35003-60M

$18.72

28

CLIP, TUBE (B7)

95002-02070

$1.59

29

CLIP, TUBE (B6.5)

95002-02650

$1.35

30

JET, MAIN (#155) This part replaces 99101-393-1550.

99101-443-1550

$11.12

30

JET, MAIN (#155)

99101-443-1550

$11.12
