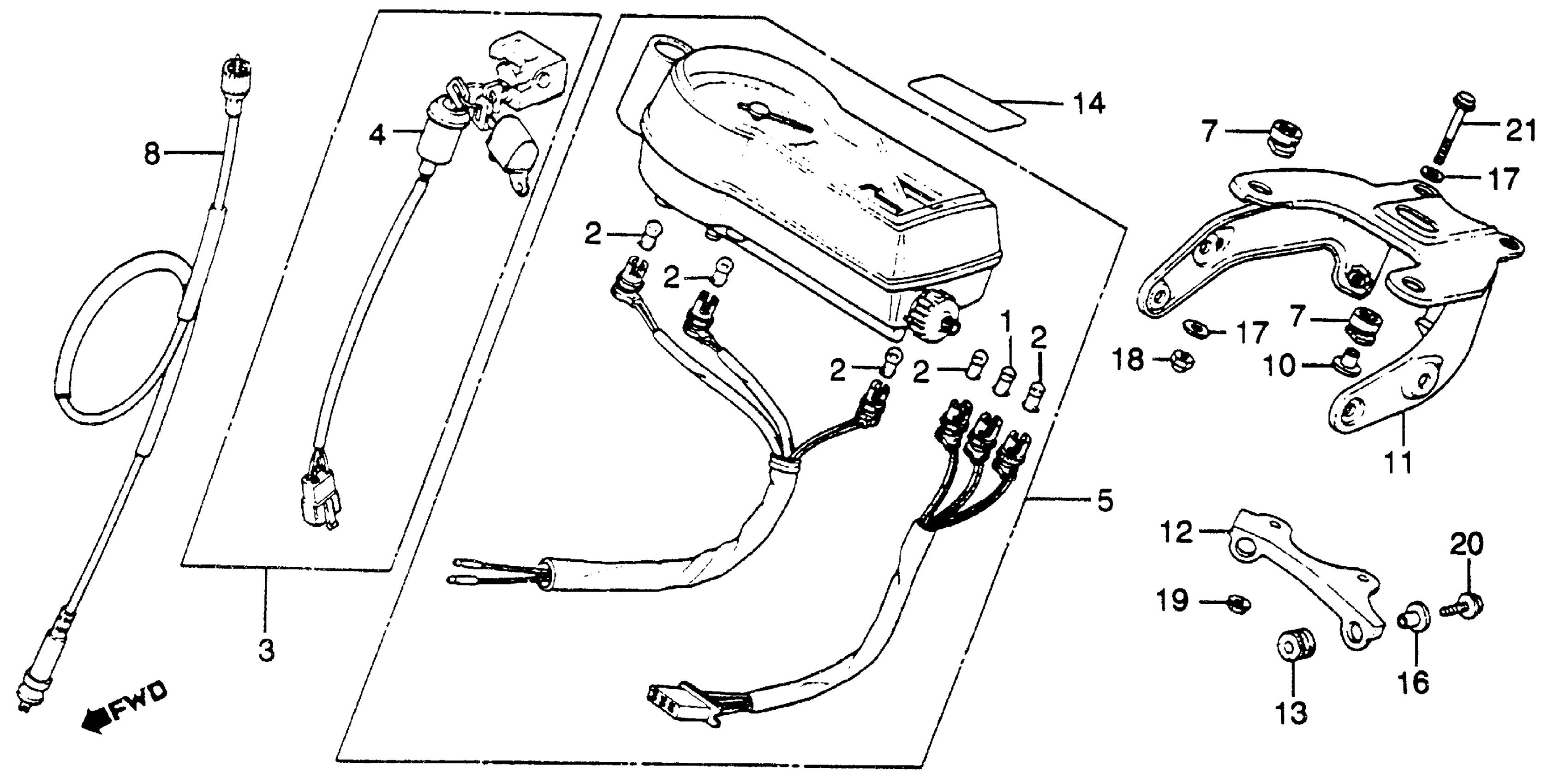

Honda XL500SA (79) MOTORCYCLE, JPN, VIN# PD01-5000054 TO PD01-5009657 SPEEDOMETER + KEY SET Diagram

BULB, DASH (6V 3W)

34902-202-000

$3.08

BULB, SPEEDOMETER (6V 1.7W)

34908-230-000

$4.67

LOCK SET This part replaces 35010-428-010.

35010-428-020

Unavailable

SWITCH ASSY., COMBINATION This part replaces 35100-428-017.

35100-428-405

Unavailable

SPEEDOMETER ASSY. This part replaces 37200-435-670.

37200-435-691

Unavailable

RUBBER, SPEEDOMETER SETTING

37242-429-000

Unavailable

CABLE ASSY., SPEEDOMETER

44830-KJ9-000

Unavailable

CABLE ASSY., SPEEDOMETER This part replaces 44830-428-000.

44830-KJ9-000

Unavailable

CABLE ASSY., SPEEDOMETER This part replaces 44830-428-010.

44830-KJ9-000

Unavailable

CABLE ASSY., SPEEDOMETER This part replaces 44830-428-900.

44830-KJ9-000

Unavailable

COLLAR, RR. FENDER (NOT AVAILABLE)

61105-428-000

Unavailable

STAY, HEADLIGHT CASE (NOT AVAILABLE)

61310-435-610

Unavailable

SUB-STAY, HEADLIGHT (NOT AVAILABLE)

61314-435-610

Unavailable

RUBBER, RR. FENDER CUSHION

80101-283-000

$4.91

LABEL, BREAK IN CAUTION (NOT AVAILABLE)

87523-102-720

Unavailable

WASHER, FR. COVER SETTING

90501-124-000

$3.74

WASHER B, HANDLE HOLDER SETTING

90525-030-000

$1.75

NUT, CAP (6MM) This part replaces 94021-06000.

94021-06020

$1.73

NUT, CAP (6MM) This part replaces 94021-06000-0S.

94021-06020

$1.73

NUT, CAP (6MM)

94021-06020

$1.73

NUT, CAP (6MM) This part replaces 94021-06020-0S.

94021-06020

$1.73

NUT, CAP (6MM) This part replaces 94022-06020.

94021-06020

$1.73

NUT, FLANGE (6MM)

94050-06000

$1.49

BOLT, FLANGE (6X18) BOLT, HEX. (6X18) This part replaces 95700-06018-00.

95701-06018-00

$1.62

BOLT, FLANGE (6X18)

95701-06018-00

$1.62

BOLT, FLANGE (6X60) This part replaces 95700-06060-00.

95701-06060-00

$1.49

BOLT, FLANGE (6X60)

95701-06060-00

$1.49
