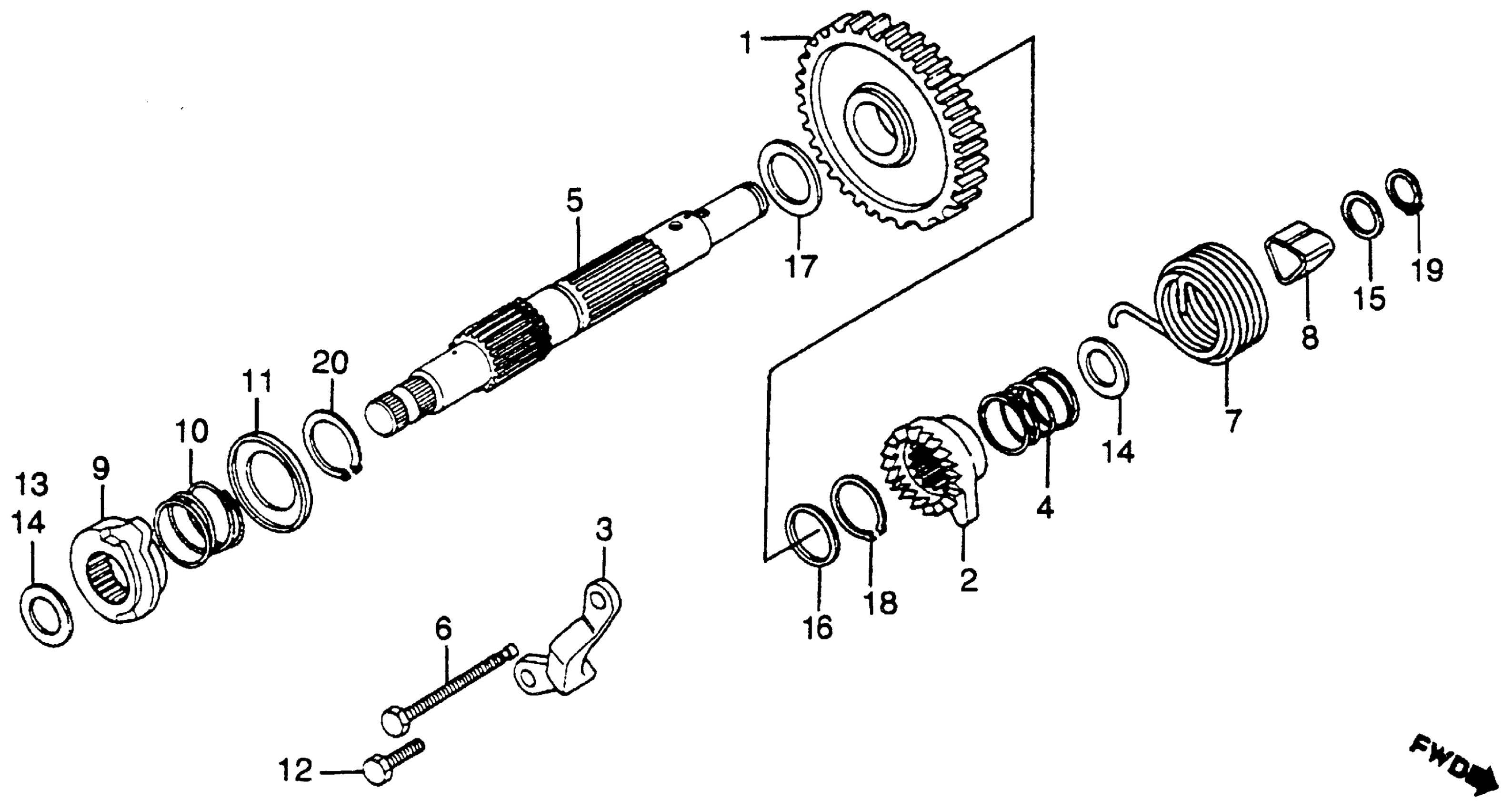

Honda XL500SA (79) MOTORCYCLE, JPN, VIN# PD01-5000054 TO PD01-5009657 KICK STARTER Diagram

#

Description
Price

1

PINION, KICK STARTER (36T) (NOT AVAILABLE) | Use up to Engine SN 5004321 This part replaces 28211-428-010.

28211-428-030

Unavailable

1

PINION, KICK STARTER (36T) (NOT AVAILABLE) This part replaces 28211-428-020.

28211-428-030

Unavailable

1

PINION, KICK STARTER (36T) (NOT AVAILABLE)

28211-428-030

Unavailable

2

RATCHET, KICK STARTER (NOT AVAILABLE)

28213-428-000

Unavailable

3

PLATE, KICK STOPPER (NOT AVAILABLE)

28215-429-000

Unavailable

4

SPRING, KICK STARTER RATCHET (NOT AVAILABLE)

28223-314-000

Unavailable

5

SPINDLE, KICK STARTER | Use up to Engine SN 5002041 This part replaces 28250-429-000.

28250-428-030

Unavailable

5

SPINDLE, KICK STARTER This part replaces 28250-429-010.

28250-428-030

Unavailable

5

SPINDLE, KICK STARTER This part replaces 28250-429-020.

28250-428-030

Unavailable

5

SPINDLE, KICK STARTER This part replaces 28250-429-030.

28250-428-030

Unavailable

6

PIN, KICK SPRING HOOK (NOT AVAILABLE)

28254-428-000

Unavailable

7

SPRING, KICK STARTER

28261-428-000

Unavailable

8

COLLAR, KICK STARTER (NOT AVAILABLE)

28265-428-000

Unavailable

9

CAM, KICK SHAFT (NOT AVAILABLE)

28272-429-000

Unavailable

10

SPRING, CAM RESET

28283-428-000

Unavailable

11

SEAT, CAM RESET SPRING

28284-428-000

Unavailable

12

BOLT, HEX. (8X20) (NOT AVAILABLE)

90006-429-000

Unavailable

14

WASHER, THRUST (18MM)

90452-701-000

$2.34

15

WASHER, THRUST (16MM)

90453-235-000

$1.83

16

WASHER, THRUST (22MM)

90453-428-000

$2.90

17

WASHER, THRUST (22MM)

90456-323-000

Unavailable

18

CIRCLIP (22MM)

90601-329-000

$2.67

19

CIRCLIP (OUTER) (16MM)

94510-16000

$1.49

20

CIRCLIP (OUTER) (24MM)

94510-24000

Unavailable
