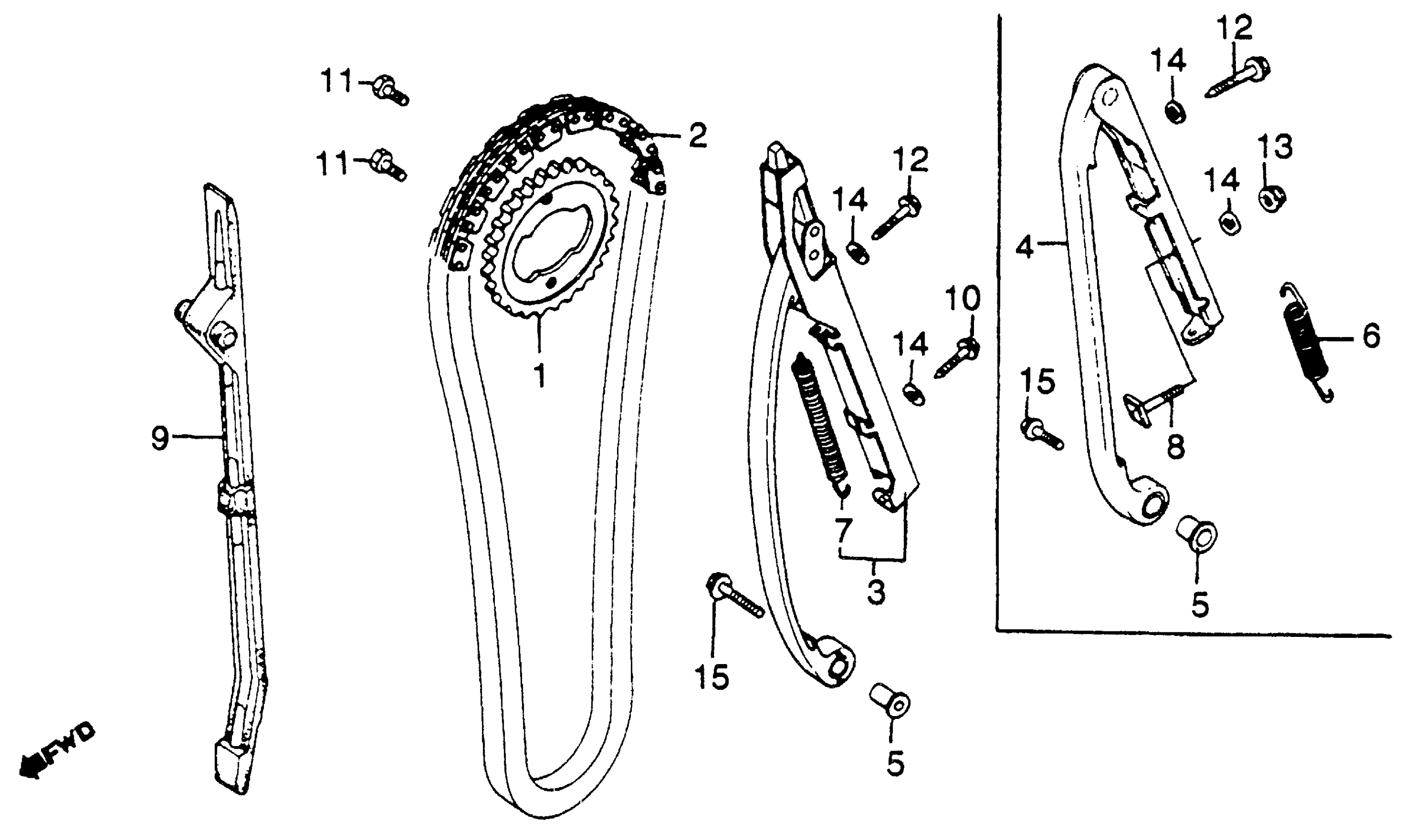

Honda XL500SA (79) MOTORCYCLE, JPN, VIN# PD01-5000054 TO PD01-5009657 CAM CHAIN + TENSIONER Diagram

SPROCKET, CAM (38T)

14321-428-000

Unavailable

CHAIN, CAM This part replaces 14401-429-003.

14401-MA0-670

Unavailable

CHAIN, CAM

14401-MA0-670

Unavailable

TENSIONER, CAM CHAIN

14500-429-000

Unavailable

COLLAR (6X14.7) (NOT AVAILABLE)

14515-428-000

Unavailable

SPRING A, CAM CHAIN TENSIONER (NOT AVAILABLE)

14516-428-000

Unavailable

ADJUSTER, CAM CHAIN TENSIONER (NOT AVAILABLE)

14538-413-000

Unavailable

GUIDE, CAM CHAIN (NOT AVAILABLE)

14620-429-000

Unavailable

BOLT, FLANGE KNOCK (7X10.5) This part replaces 90081-246-000.

90082-HA0-000

$1.97

BOLT, FLANGE KNOCK (7X10.5)

90082-HA0-000

$1.97

BOLT, SPECIAL (6MM)

90125-KB4-670

$4.61

BOLT, SPECIAL (6MM) This part replaces 90125-399-000.

90125-KB4-670

$4.61

NUT, CAP (6MM)

90201-415-000

$2.05

WASHER, SEALING (6MM)

90441-706-000

$1.49

BOLT, FLANGE (6X28)

95700-06028-00

$1.73

BOLT, FLANGE (6X28)

95701-06028-00

$1.73
