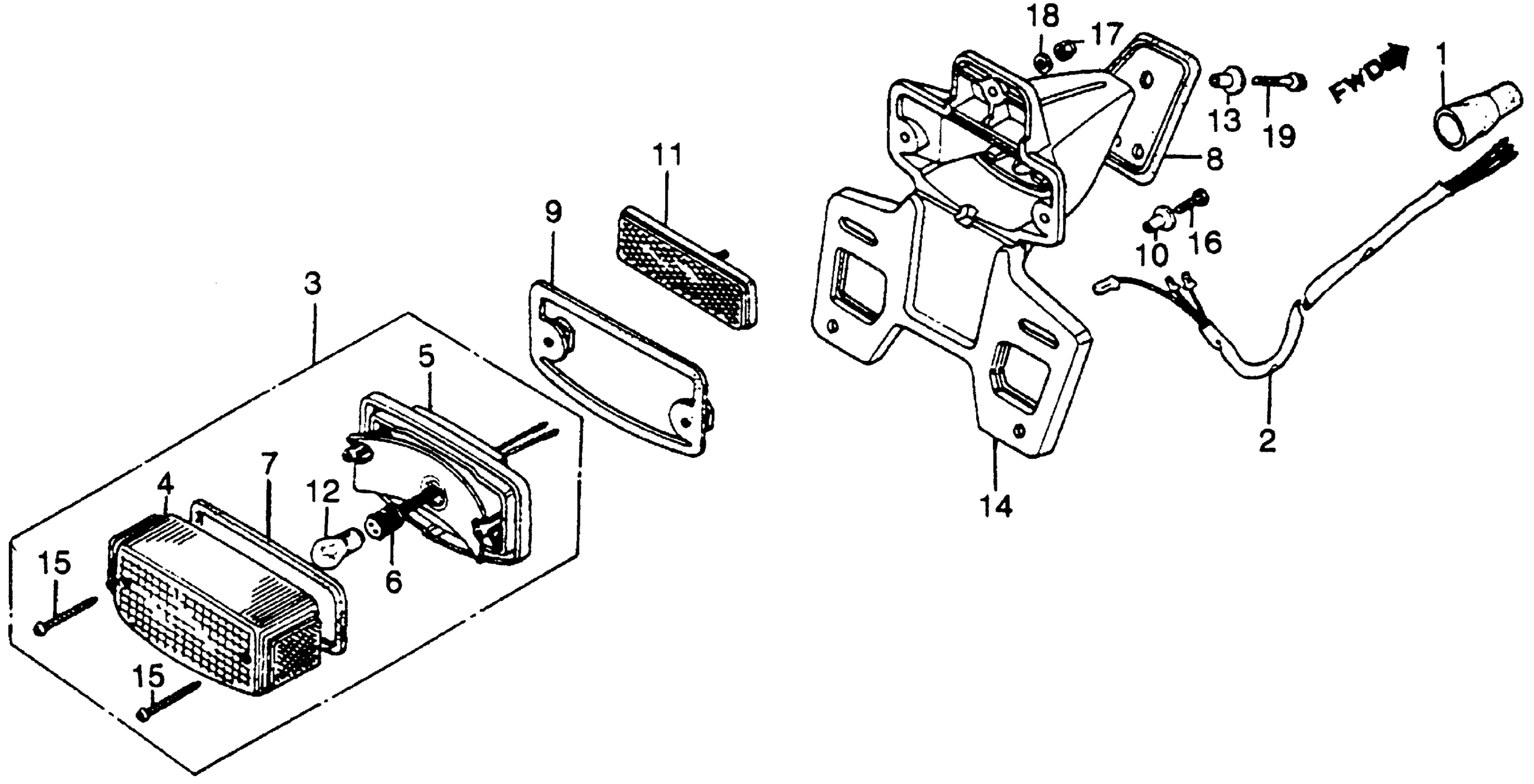

Honda XL500RA (82) MOTORCYCLE, JPN, VIN# JH2PD020-CM000032 TO JH2PD020-CM009868 XL500R TAILLIGHT 82 Diagram

#

Description
Price

1

COVER, WIRE HARNESS CONNECTOR

32108-046-000

Unavailable

2

SUB-WIRE, TAILLIGHT

32101-KY0-980

Unavailable

2

SUB-WIRE, TAILLIGHT This part replaces 32200-428-000.

32101-KY0-980

Unavailable

3

TAILLIGHT UNIT

33701-GAN-671

Unavailable

3

TAILLIGHT UNIT This part replaces 33701-MC4-671.

33701-GAN-671

Unavailable

4

LENS, TAILLIGHT (COO) (STANLEY) This part replaces 33702-MC4-671.

33702-MGR-305

$27.88

5

BASE, TAILLIGHT

33703-MC4-671

Unavailable

6

WIRE, TAILLIGHT

33708-147-003

Unavailable

7

GASKET, TAILLIGHT LENS

33709-KB7-003

$4.22

8

RUBBER, BASE SEAT (NOT AVAILABLE)

33712-KB7-003

Unavailable

9

GASKET, TAILLIGHT (NOT AVAILABLE)

33718-KB7-003

Unavailable

10

COLLAR, TAILLIGHT GASKET

33719-KB7-000

Unavailable

11

REFLECTOR, REFLEX This part replaces 33741-MC7-611.

33741-MC7-612

$14.43

11

REFLECTOR, REFLEX

33741-MC7-612

$14.43

12

BULB, STOP & TAILLIGHT (12V 27/7W)

34906-MG9-771

$4.15

12

BULB, TAILLIGHT (12V27/7W) (2057HD) (STANLEY) This part replaces 34906-341-671.

34906-MG9-771

$4.15

13

COLLAR, CHAIN CASE TAIL

40521-437-000

$5.05

14

BRACKET, LICENSE PLATE

84701-MC4-671

Unavailable

15

SCREW, TAPPING (4X40)

90105-GA7-003

$2.84

16

BOLT, HEX. (5X20) This part replaces 92000-05020-0A.

92101-05020-0A

$1.49

16

BOLT, HEX. (5X20)

92101-05020-0A

$1.49

16

BOLT, HEX. (5X20) This part replaces 92301-05020-0A.

92101-05020-0A

$1.49

17

NUT, CAP (5MM)

94021-05020-0S

$1.49

18

WASHER, SPRING (5MM)

94111-05000

$1.49

19

BOLT, FLANGE (6X28)

95700-06028-00

$1.73

19

BOLT, FLANGE (6X28)

95701-06028-00

$1.73
