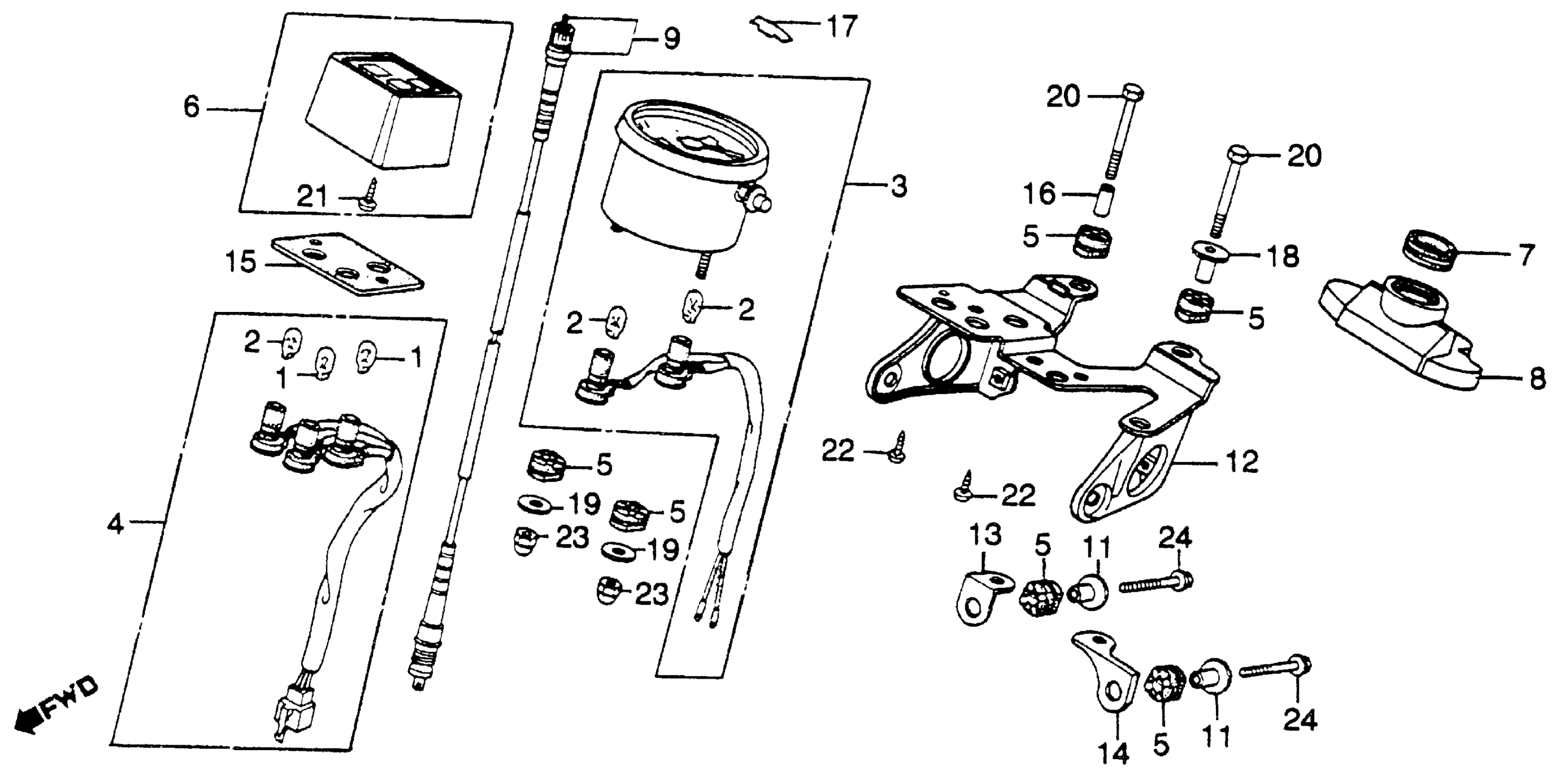

Honda XL500RA (82) MOTORCYCLE, JPN, VIN# JH2PD020-CM000032 TO JH2PD020-CM009868 XL500R SPEEDOMETER 82 Diagram

#

Description
Price

1

BULB (14V 3.4W) (NS) This part replaces 34908-GA7-701.

37237-SA5-003

$4.17

1

BULB (14V 3.4W) (NS) This part replaces 37102-567-009.

37237-SA5-003

$4.17

1

BULB (14V 3.4W) (NS)

37237-SA5-003

$4.17

1

BULB (14V 3.4W) (NS) This part replaces 37237-SA5-004.

37237-SA5-003

$4.17

2

BULB, WEDGE BASE (T10) (12V 1.7W) (STANLEY)

34908-MB9-871

$2.78

3

SPEEDOMETER ASSY. (MPH/KPH) (NOT AVAILABLE)

37200-MC4-671

Unavailable

4

WIRE, PILOT (NOT AVAILABLE)

37223-MC4-671

Unavailable

5

RUBBER, SPEEDOMETER MOUNTING

37242-435-700

$5.90

6

CASE ASSY., PILOT (NOT AVAILABLE)

37300-MC4-671

Unavailable

7

GROMMET, COMBINATION SWITCH

37312-KB7-008

Unavailable

8

COVER, IGNITION SWITCH (NOT AVAILABLE)

37622-MC4-670

Unavailable

9

CABLE ASSY., SPEEDOMETER This part replaces 44830-KA2-680.

44830-MF9-010

Unavailable

9

CABLE ASSY., SPEEDOMETER This part replaces 44830-MC4-000.

44830-MF9-010

Unavailable

9

CABLE ASSY., SPEEDOMETER This part replaces 44830-MF9-000.

44830-MF9-010

Unavailable

9

CABLE ASSY., SPEEDOMETER

44830-MF9-010

Unavailable

11

COLLAR (6.3X13)

50324-425-010

$5.05

12

STAY, HEADLIGHT CASE (NOT AVAILABLE)

61310-KB7-670

Unavailable

13

SUB-STAY, R. HEADLIGHT (NOT AVAILABLE)

61315-KB7-670

Unavailable

14

SUB-STAY, L. HEADLIGHT (NOT AVAILABLE)

61316-KB7-670

Unavailable

15

MOUNT, PILOT CASE (NOT AVAILABLE)

61317-KB7-000

Unavailable

16

COLLAR, LICENSE BRACKET CUSHION (NOT AVAILABLE)

84907-174-670

Unavailable

17

LABEL, BREAK IN CAUTION (NOT AVAILABLE)

87523-410-790

Unavailable

18

COLLAR (6.2X13)

90501-MA3-720

$4.78

19

WASHER B, HANDLE HOLDER SETTING

90525-030-000

$1.75

20

BOLT, HEX. (6X40) This part replaces 92000-06040.

92101-06040-0A

Unavailable

20

BOLT, HEX. (6X40) This part replaces 92000-06040-0A.

92101-06040-0A

Unavailable

20

BOLT, HEX. (6X40)

92101-06040-0A

Unavailable

21

SCREW, TAPPING (4X8) (NOT AVAILABLE)

93901-14120

Unavailable

22

SCREW, TAPPING (4X16)

93901-34480

$1.49

23

NUT, CAP (6MM) This part replaces 94021-06000.

94021-06020

$1.73

23

NUT, CAP (6MM) This part replaces 94021-06000-0S.

94021-06020

$1.73

23

NUT, CAP (6MM)

94021-06020

$1.73

23

NUT, CAP (6MM) This part replaces 94021-06020-0S.

94021-06020

$1.73

23

NUT, CAP (6MM) This part replaces 94022-06020.

94021-06020

$1.73

24

BOLT, FLANGE (6X25) This part replaces 95700-06025-00.

95701-06025-00

$1.80

24

BOLT, FLANGE (6X25)

95701-06025-00

$1.80
