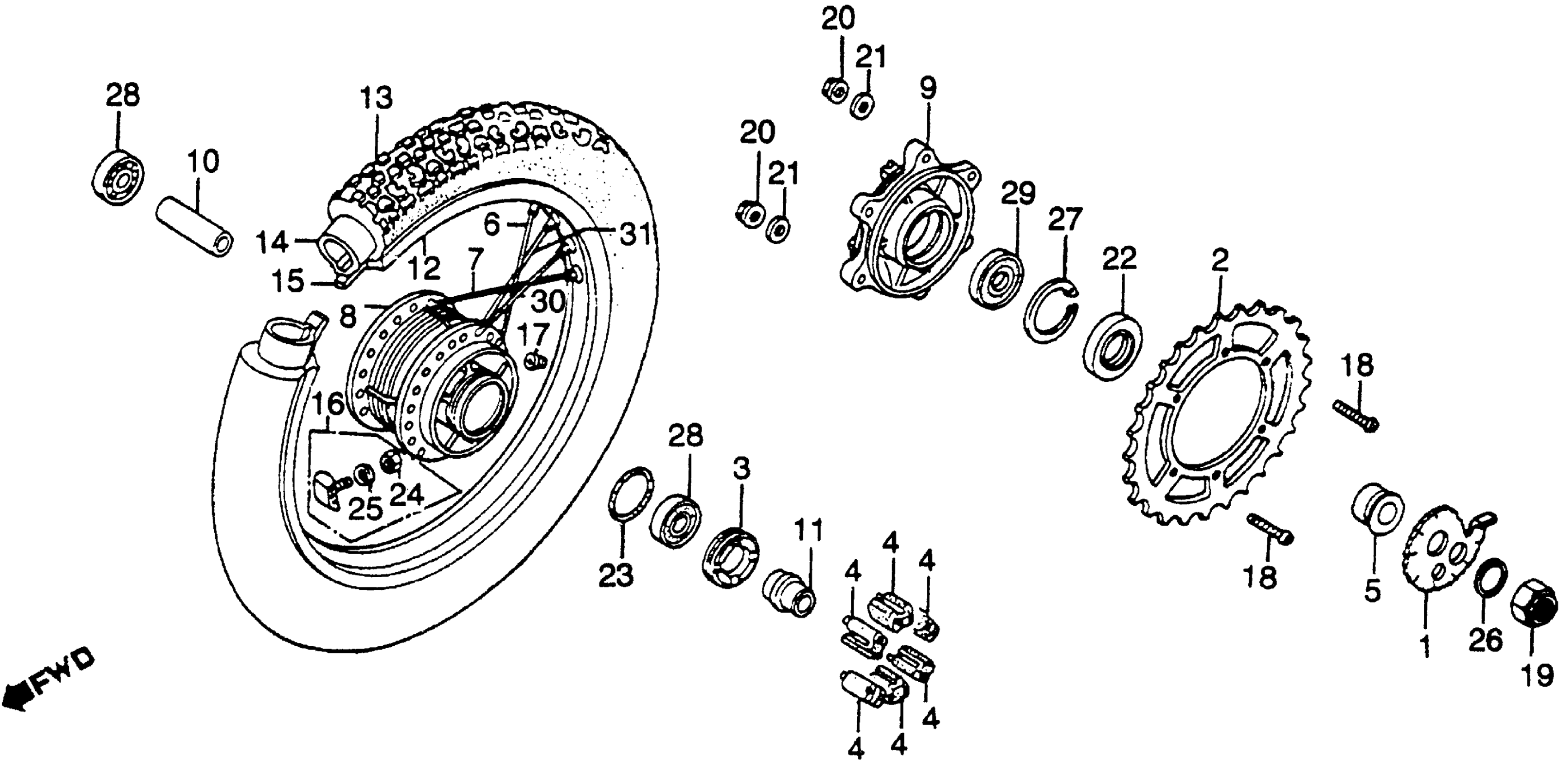

Honda XL500RA (82) MOTORCYCLE, JPN, VIN# JH2PD020-CM000032 TO JH2PD020-CM009868 XL500R REAR WHEEL 82 Diagram

#

Description
Price

1

ADJUSTER, L. CHAIN

40545-KB7-000

Unavailable

2

SPROCKET, FINAL DRIVEN (43T) (NOT AVAILABLE)

41201-KA7-000

Unavailable

3

RETAINER, RR. WHEEL BEARING

41231-MC4-000

Unavailable

4

RUBBER, RR. WHEEL DAMPER This part replaces 41241-MC4-000.

41241-MC4-010

$9.79

4

RUBBER, RR. WHEEL DAMPER

41241-MC4-010

$9.79

5

COLLAR, RR. WHEEL

42312-MC4-000

Unavailable

6

SPOKE SET BS (8X160.5)

426A0-MC4-000

Unavailable

7

SPOKE SET BS (8X155.5) (NOT AVAILABLE)

426B0-MC4-000

$3.75

8

HUB, RR. WHEEL (NOT AVAILABLE)

42601-MC4-000

Unavailable

9

FLANGE, FINAL DRIVEN (NOT AVAILABLE)

42611-MC4-000

Unavailable

10

COLLAR, RR. AXLE DISTANCE

42620-KAZ-000

Unavailable

10

COLLAR, RR. AXLE DISTANCE This part replaces 42620-MC4-000.

42620-KAZ-000

Unavailable

10

COLLAR, RR. AXLE DISTANCE This part replaces 42620-MK5-680.

42620-KAZ-000

Unavailable

11

COLLAR B, RR. AXLE DISTANCE This part replaces 42625-MC4-000.

42625-MAN-620

$18.15

12

RIM, RR. WHEEL (2.15X17) (NOT AVAILABLE)

42701-MC4-003

Unavailable

13

TIRE (4.60-17) (4PR) This part replaces 42711-MC4-671.

42711-MC4-005

Unavailable

13

TIRE, RR. (4.60-17) (4PR) (INOUE) (NOT AVAILABLE)

42711-MC4-672

Unavailable

14

TUBE, TIRE (5.10-17) (INOUE) This part replaces 08400-37100.

42712-MA0-005

Unavailable

14

TUBE, TIRE (5.10-17) (INOUE) This part replaces 42712-KB7-902.

42712-MA0-005

Unavailable

14

TUBE, TIRE (5.10-17) (INOUE) This part replaces 42712-MA0-003.

42712-MA0-005

Unavailable

14

TUBE, TIRE (5.10-17) (INOUE)

42712-MA0-005

Unavailable

14

TUBE, TIRE (5.10-17) (INOUE) This part replaces 42712-MC4-005.

42712-MA0-005

Unavailable

14

TUBE, TIRE (5.10-17) (INOUE) This part replaces 42712-MC4-009.

42712-MA0-005

Unavailable

14

TUBE, TIRE (120/90-17) (BS)

42712-MN9-003

Unavailable

14

TUBE, TIRE (5.10-17) (INOUE) This part replaces 42712-371-003.

42712-MA0-005

Unavailable

14

TUBE, TIRE (5.10-17) (INOUE) This part replaces 42712-371-004.

42712-MA0-005

Unavailable

15

FLAP, TIRE (IRC)

42713-MA0-005

Unavailable

15

FLAP, TIRE (17) (IRC)

42713-102-005

$6.23

15

FLAP, TIRE (17) (INOUE) This part replaces 42713-102-009.

42713-102-005

$6.23

16

STOPPER, BEAD (2.15)

42715-MA0-770

$34.78

17

CAP, RIM HOLE

42717-329-000

$4.01

18

BOLT, DRIVEN SPROCKET FIXING

90128-428-020

$7.26

19

NUT, AXLE (16MM)

90305-MA0-003

$6.97

20

NUT, FLANGE (M8X1.25) (SELF-LOCK)

90309-428-731

$3.19

21

WASHER (8MM)

90465-MC4-000

$2.32

22

OIL SEAL (28X47.2X7) (ARAI) This part replaces 91252-MC4-003.

91252-MC4-013

$6.66

22

OIL SEAL (28X47.2X7) (ARAI) This part replaces 91252-MC4-005.

91252-MC4-013

$6.66

22

OIL SEAL (28X47.2X7) (ARAI)

91252-MC4-013

$6.66

23

O-RING (54X2) This part replaces 91302-317-700.

91307-MB0-003

Unavailable

23

O-RING (54X2) This part replaces 91307-MB0-000.

91307-MB0-003

Unavailable

23

O-RING (54X2) (ARAI)

91307-MB0-003

Unavailable

24

NUT, HEX. (8MM)

94001-08000-0S

$1.31

25

WASHER, SPRING (8MM)

94111-08000

Unavailable

26

WASHER, SPRING (16MM)

94111-16000

$1.32

27

CIRCLIP (INNER) (47MM)

94520-47000

$2.16

27

CIRCLIP (INNER) (47MM)

94521-47000

$2.21

27

CIRCLIP (INNER) (47MM) This part replaces 94524-47000.

94521-47000

$2.21

28

BEARING, RADIAL BALL (6203U)

96140-62030-10

$10.93

29

BEARING, RADIAL BALL (6204U)

96140-62040-10

$20.05

30

SPOKE SET BS (8X160)

97820-69160-Q0

Unavailable

31

SPOKE SET BS (8X154.5)

97873-69149-Q0

Unavailable
