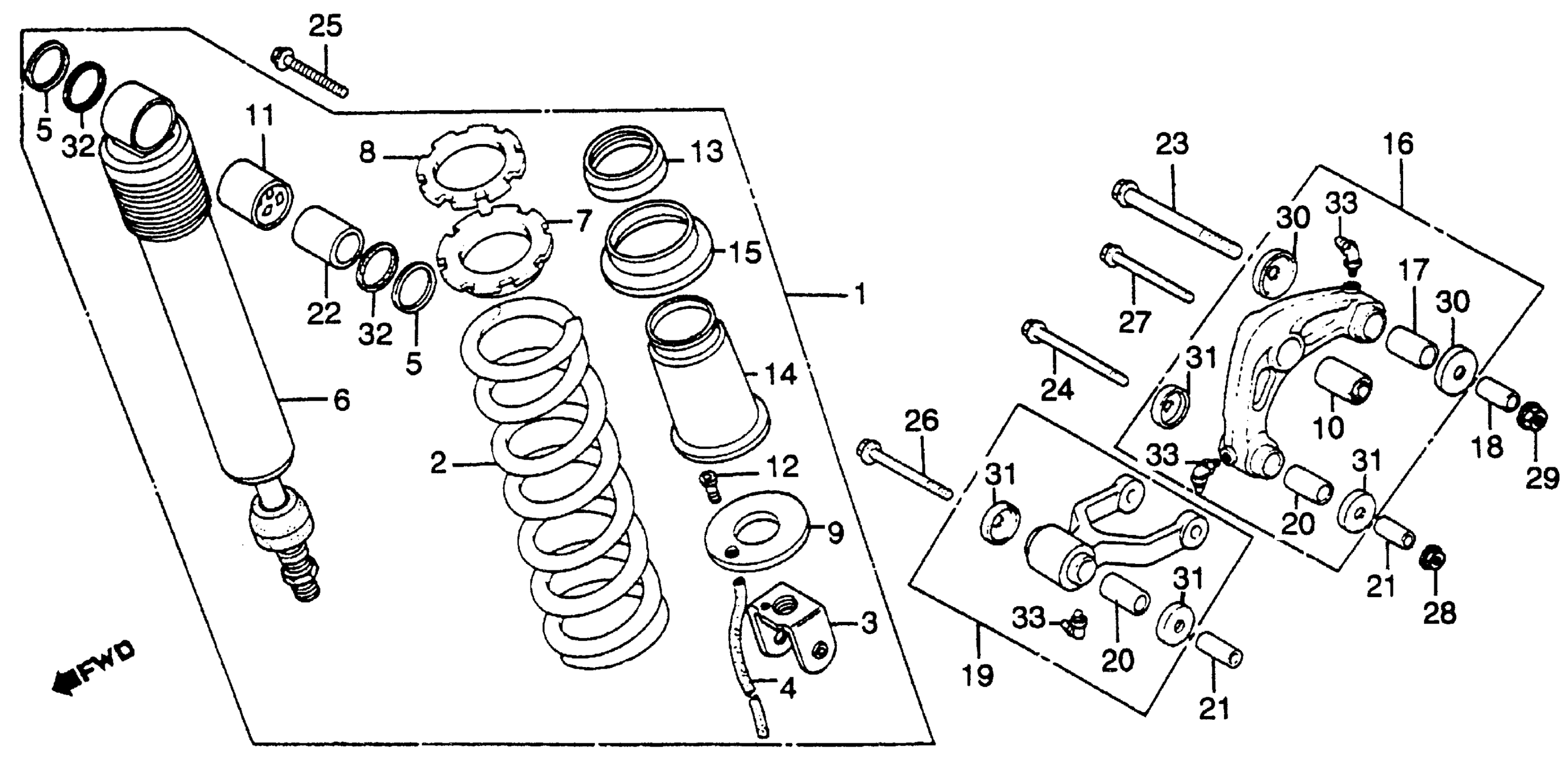

Honda XL500RA (82) MOTORCYCLE, JPN, VIN# JH2PD020-CM000032 TO JH2PD020-CM009868 XL500R REAR SHOCK ABSORBER Diagram

#

Description
Price

1

SHOCK ABSORBER ASSY., RR. (SHOWA) (NOT AVAILABLE)

52400-MC4-003

Unavailable

2

SPRING, RR. SHOCK ABSORBER (NOT AVAILABLE)

52401-MC4-003

Unavailable

3

METAL (LOWER) (NOT AVAILABLE)

52403-KB7-003

Unavailable

4

PIPE, DRAIN (NOT AVAILABLE)

52405-KB7-003

Unavailable

5

CAP, DUST SEAL

52406-KB7-003

$6.48

6

DAMPER, RR. (NOT AVAILABLE)

52410-MC4-003

$632.66

7

ADJUSTER, SPRING

52422-MA0-003

$39.25

8

NUT, ADJUSTER

52423-MA0-003

Unavailable

9

STOPPER, SPRING SEAT (NOT AVAILABLE)

52424-KB7-003

Unavailable

10

BUSH, DAMPER (LOWER)

52451-MA0-000

$15.12

11

BUSH, DAMPER (UPPER)

52452-KB7-003

$15.55

12

JOINT, PIPE

52456-KB7-003

Unavailable

13

DUST SEAL (NOT AVAILABLE)

52457-KB7-003

Unavailable

14

GUIDE, SPRING

52458-KB7-003

Unavailable

15

SEAT C, SPRING (SHOWA)

52459-KB7-003

Unavailable

16

ARM ASSY., SHOCK ABSORBER This part replaces 52460-MA0-000.

52460-MA0-010

Unavailable

16

ARM ASSY., SHOCK ABSORBER (NOT AVAILABLE)

52460-MA0-010

Unavailable

17

BUSH, DAMPER ARM

52462-MA0-013

Unavailable

18

COLLAR, DAMPER ARM PIVOT

52463-MA0-010

Unavailable

19

ROD ASSY., DAMPER CONNECTING This part replaces 52470-MA0-000.

52470-MA0-010

Unavailable

19

ROD ASSY., DAMPER CONNECTING (NOT AVAILABLE)

52470-MA0-010

Unavailable

20

BUSH, CUSHION CONNECTING ROD

52472-MA0-013

$29.48

21

COLLAR, CONNECTING ROD PIVOT This part replaces 52473-MA0-010.

52473-MA0-020

$16.68

21

COLLAR, CONNECTING ROD PIVOT

52473-MA0-020

$16.68

22

COLLAR, BUSH

52486-KB7-003

$14.81

23

BOLT, FLANGE (12X78) (NOT AVAILABLE)

90128-MA0-003

Unavailable

24

BOLT, FLANGE (10X69)

90129-MA0-003

Unavailable

25

BOLT, FLANGE (10X58) (NOT AVAILABLE)

90150-MA0-000

Unavailable

26

BOLT, FLANGE (10X71)

90129-KAS-900

$9.74

26

BOLT, FLANGE (10X71) This part replaces 90151-MA0-000.

90129-KAS-900

$9.74

27

BOLT, FLANGE (10X43)

90153-MC4-003

Unavailable

28

NUT, AXLE (10MM)

90304-GA6-003

$2.89

29

NUT, FLANGE (12MM)

90306-181-761

$6.08

30

SEAL, CUSHION ARM PIVOT This part replaces 91261-MA0-003.

91261-964-671

$7.99

30

SEAL, CUSHION ARM PIVOT This part replaces 91261-MA0-005.

91261-964-671

$7.99

30

SEAL, CUSHION ARM PIVOT

91261-964-671

$7.99

31

SEAL, RR. CUSHION CONNECTING ROD PIVOT (NOK) This part replaces 91262-MA0-013.

91262-MA0-015

$11.15

31

SEAL, RR. CUSHION CONNECTING ROD PIVOT (NOK)

91262-MA0-015

$11.15

32

DUST SEAL B

91351-KB7-003

$3.49

33

NIPPLE, GREASE (B.T6S)

96201-80000

$2.56
