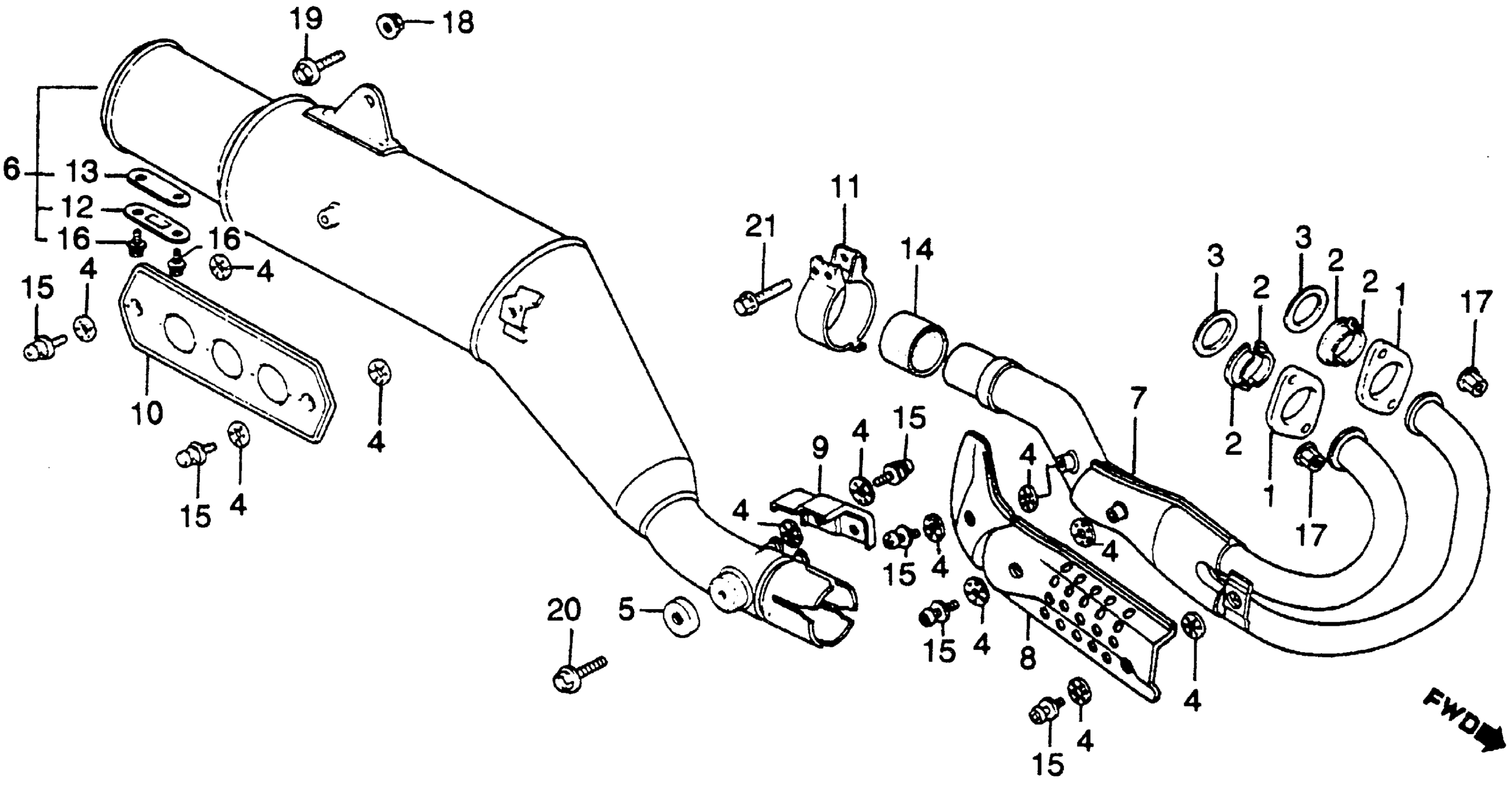

Honda XL500RA (82) MOTORCYCLE, JPN, VIN# JH2PD020-CM000032 TO JH2PD020-CM009868 XL500R MUFFFLER 82 Diagram

#

Description
Price

1

JOINT, EX. PIPE (NOT AVAILABLE)

18231-429-000

Unavailable

2

COLLAR, EX. PIPE JOINT

18233-435-000

$8.52

3

GASKET, EX. PIPE

18291-MN5-650

$3.77

3

GASKET, EX. PIPE This part replaces 18291-216-000.

18291-MN5-650

$3.77

4

GASKET, PROTECTOR This part replaces 18292-KF9-900.

18292-MM9-740

$3.03

4

GASKET, PROTECTOR

18292-MM9-740

$3.03

4

GASKET, PROTECTOR This part replaces 18292-415-000.

18292-MM9-740

$3.03

5

GASKET B, MUFFLER This part replaces 18295-KS3-920.

18295-KV6-920

Unavailable

5

GASKET B, MUFFLER This part replaces 18295-KZ1-670.

18295-KV6-920

Unavailable

5

GASKET B, MUFFLER This part replaces 18295-429-000.

18295-KV6-920

Unavailable

6

MUFFLER (NOT AVAILABLE) This part replaces 18310-MC4-671.

18310-MC4-672

Unavailable

6

MUFFLER (NOT AVAILABLE)

18310-MC4-672

Unavailable

7

PIPE, EX. This part replaces 18320-MC4-003.

18320-MC4-610

Unavailable

8

PROTECTOR, EX. PIPE (NOT AVAILABLE)

18325-435-000

Unavailable

9

SUB-PROTECTOR, MUFFLER (NOT AVAILABLE)

18350-MC4-000

Unavailable

10

PROTECTOR, MUFFLER (NOT AVAILABLE)

18355-KB7-000

Unavailable

11

BAND, MUFFLER This part replaces 18371-MA0-770.

18376-KV0-000

Unavailable

11

BAND, MUFFLER

18376-KV0-000

Unavailable

12

LID, MUFFLER

18373-429-010

$9.15

13

GASKET, MUFFLER LID

18374-MN1-880

$4.21

13

GASKET, MUFFLER LID This part replaces 18374-429-000.

18374-MN1-880

$4.21

14

GASKET, MUFFLER This part replaces 18391-429-000.

18391-429-010

$15.22

14

GASKET, MUFFLER

18391-429-010

$15.22

15

SCREW-WASHER (6X12)

90136-MC7-000

$4.66

16

BOLT-WASHER (6X12)

93401-06012-07

$1.62

16

BOLT-WASHER (6X12) This part replaces 93411-06012-07.

93401-06012-07

$1.62

16

BOLT-WASHER (6X12) This part replaces 93481-06012-07.

93401-06012-07

$1.62

17

NUT, FLANGE (6MM)

94050-06000

$1.49

18

NUT, FLANGE (8MM)

94050-08000

$1.49

19

BOLT, FLANGE (8X14) This part replaces 95700-08014-00.

95701-08014-00

$1.49

19

BOLT, FLANGE (8X14)

95701-08014-00

$1.49

20

BOLT, FLANGE (8X16) This part replaces 95700-08016-00.

95701-08016-00

$1.80

20

BOLT, FLANGE (8X16)

95701-08016-00

$1.80

21

BOLT, FLANGE (8X32) This part replaces 95700-08032-07.

95701-08032-07

$1.80

21

BOLT, FLANGE (8X32)

95701-08032-07

$1.80
