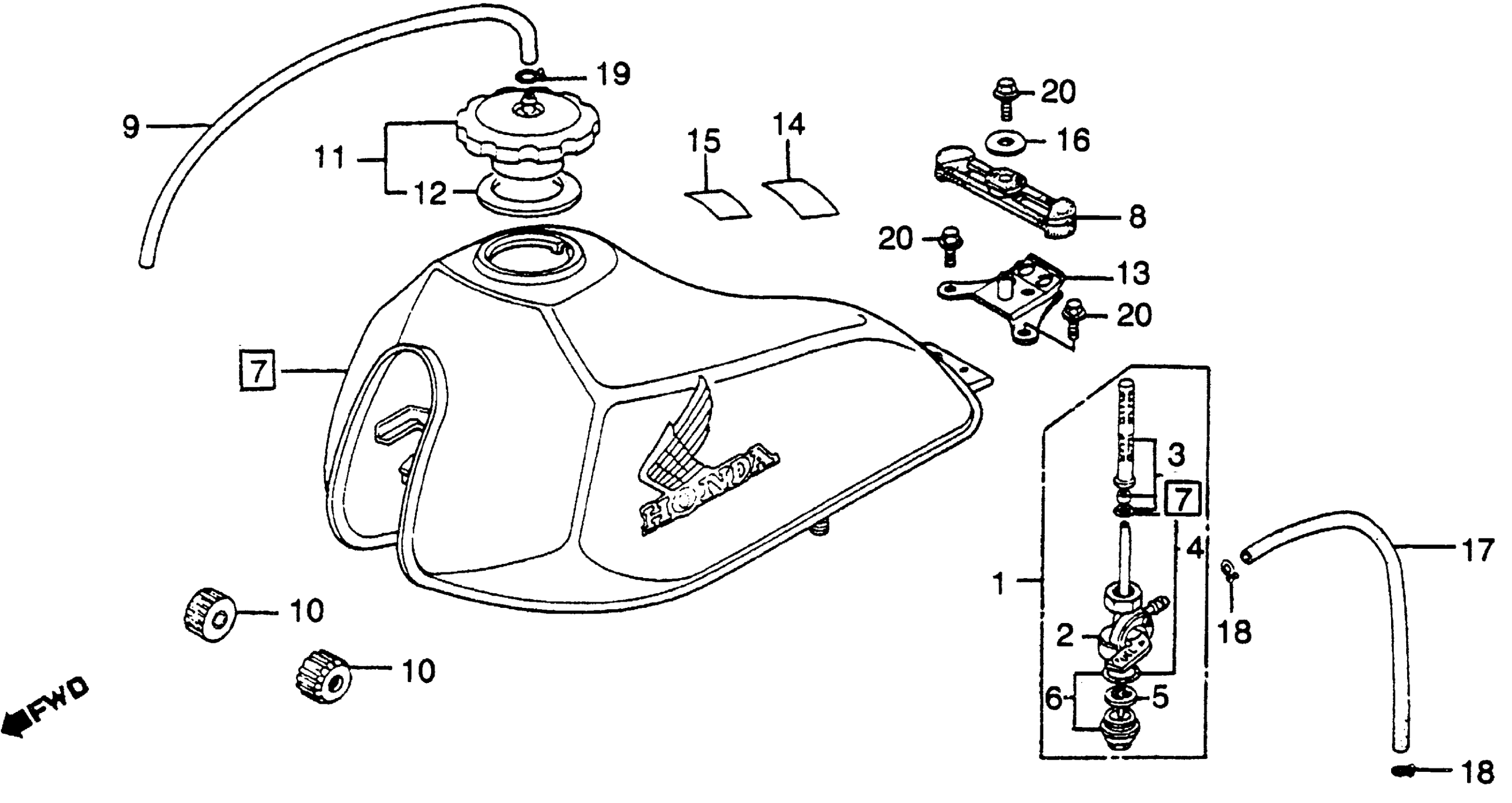

Honda XL500RA (82) MOTORCYCLE, JPN, VIN# JH2PD020-CM000032 TO JH2PD020-CM009868 XL500R FUEL TANK 82 Diagram

#

Description
Price

1

PETCOCK ASSY. This part replaces 16950-KB7-005.

16950-KB7-910

Unavailable

1

PETCOCK ASSY.

16950-KB7-910

Unavailable

2

BODY, VALVE (NOT AVAILABLE)

16951-KB7-005

Unavailable

3

SCREEN SET, FUEL STRAINER

16952-449-751

$32.71

4

O-RING This part replaces 16195-657-300.

16075-GHB-720

$2.93

4

O-RING This part replaces 16958-MA1-731.

16075-GHB-720

$2.93

5

FILTER, CUP

16959-471-831

$9.35

6

CUP, FUEL STRAINER

16967-MA2-771

$25.08

7

TANK SET, FUEL *R110* (MONZA RED) (NOT AVAILABLE)

175A1-MC4-000ZA

Unavailable

8

RUBBER, RR. FUEL TANK (NOT AVAILABLE)

17504-MC4-000

Unavailable

9

TUBE, FUEL CAP BREATHER

17521-429-000

$6.98

10

CUSHION, FR. FUEL TANK

17611-MG2-000

$11.43

10

CUSHION, FR. FUEL TANK This part replaces 17611-429-000.

17611-MG2-000

$11.43

11

CAP, FUEL TANK

17620-435-730

Unavailable

12

GASKET, FUEL FILLER CAP

17632-435-730

$9.46

13

STAY, TANK SETTING (NOT AVAILABLE)

50133-MC4-000

Unavailable

14

MARK, ACCESSORIES & LOADING CAUTION (NOT AVAILABLE)

87512-435-770

Unavailable

15

MARK, DRIVE CAUTION (TYPEB) This part replaces 87560-181-760.

87560-181-760ZE

$3.95

15

LABEL, DRIVE CAUTION *NH1* (BLACK) (NOT AVAILABLE)

87560-181-760ZD

Unavailable

15

MARK, DRIVE CAUTION (TYPEB)

87560-181-760ZE

$3.95

16

WASHER, TANK SETTING

90136-428-870

$1.56

17

TUBE, FUEL (5.3X155) (NOT AVAILABLE)

91461-MC4-000

Unavailable

18

CLIP, TUBE (B10)

95002-02100

$1.90

19

CLIP, TUBE (C9)

95002-50000

$1.49

20

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

20

BOLT, FLANGE (6X12)

95701-06012-00

$1.62
