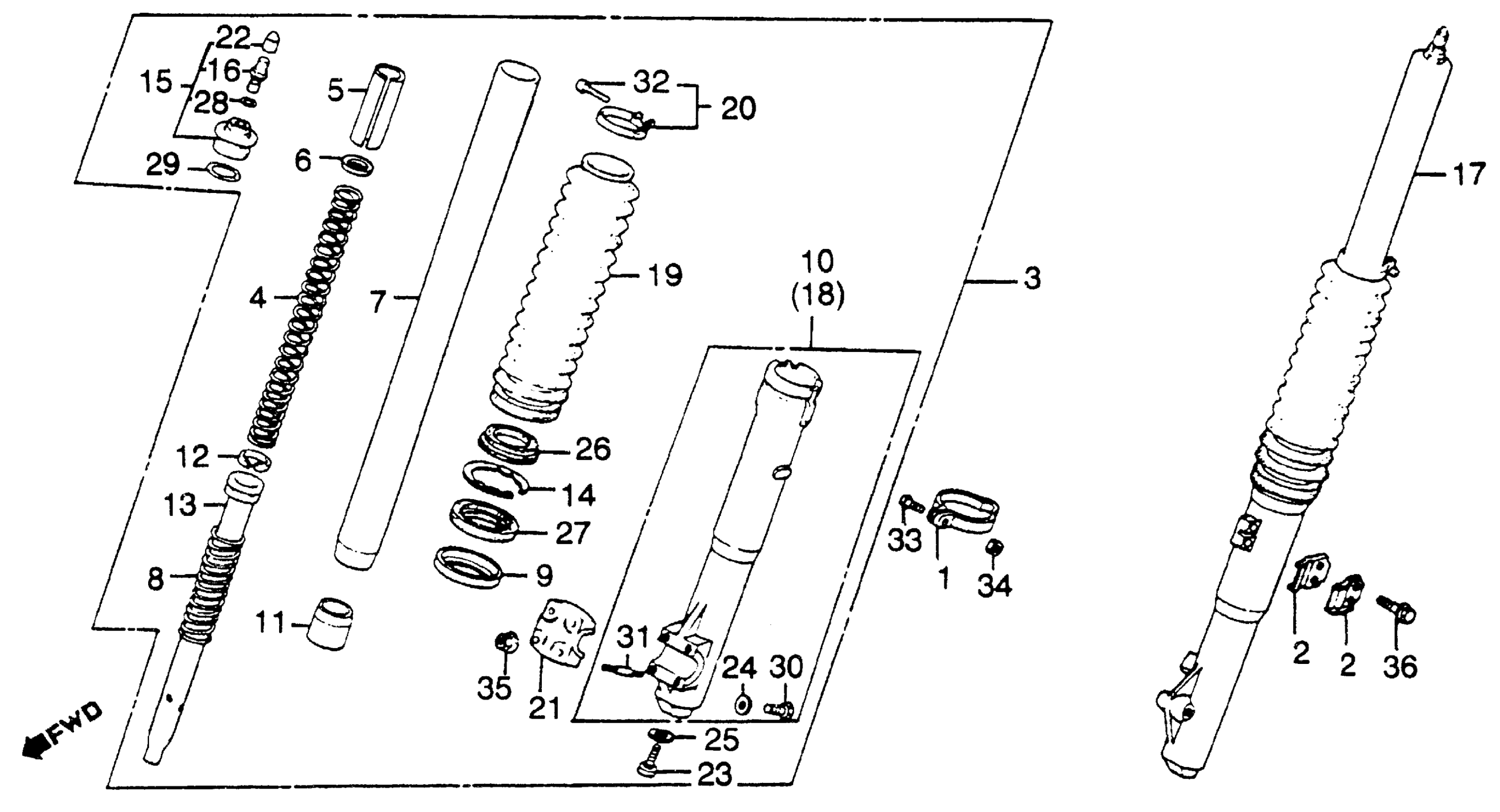

Honda XL500RA (82) MOTORCYCLE, JPN, VIN# JH2PD020-CM000032 TO JH2PD020-CM009868 XL500R FRONT FORK 82 Diagram

#

Description
Price

1

CLAMP, SPEEDOMETER CABLE (NOT AVAILABLE)

44832-MC4-000

Unavailable

2

CLAMP, FR. BRAKE CABLE (NOT AVAILABLE)

45461-MC4-000

Unavailable

3

FORK ASSY., R. FR. (SHOWA) (NOT AVAILABLE)

51400-MC4-003

Unavailable

4

SPRING, FR. FORK (NOT AVAILABLE)

51401-MC4-003

Unavailable

5

COLLAR, SPRING (NOT AVAILABLE)

51402-MA0-771

Unavailable

6

SEAT, SPRING

51403-MA0-771

Unavailable

7

PIPE, FR. FORK (NOT AVAILABLE)

51410-MC4-003

Unavailable

8

SPRING, REBOUND (NOT AVAILABLE)

51412-MA0-771

Unavailable

9

RING, BACK-UP

51412-461-003

$6.56

9

RING, BACK-UP This part replaces 51412-461-305.

51412-461-003

$6.56

10

CASE, R. (LOWER) (NOT AVAILABLE)

51420-MC4-003

Unavailable

11

PIECE, OIL LOCK (NOT AVAILABLE)

51432-MC4-003

Unavailable

12

RING, PISTON

51437-MA0-771

Unavailable

13

PIPE, SEAT (NOT AVAILABLE)

51440-MC4-003

Unavailable

14

CIRCLIP (INNER) (50MM)

51447-461-003

$4.20

15

BOLT ASSY., FR. FORK (NOT AVAILABLE)

51450-MC4-003

Unavailable

16

VALVE, AIR

51456-469-013

$30.27

17

FORK ASSY., L. FR. (SHOWA) (NOT AVAILABLE)

51500-MC4-003

Unavailable

18

CASE, L. (LOWER) (NOT AVAILABLE)

51520-MC4-003

Unavailable

19

BOOT, FR. FORK (NOT AVAILABLE)

51611-430-000

Unavailable

20

BAND, FR. FORK BOOT

51612-430-010

$7.54

21

HOLDER, AXLE

51634-MA0-003

$33.64

22

CAP, AIR VALVE

52425-381-771

$4.70

23

BOLT, SOCKET (8MM) (SHOWA) This part replaces 90116-283-010.

90116-383-721

$4.77

23

BOLT, SOCKET (8X27)

90116-383-721

$4.77

24

GASKET, FR. FORK DRAIN PETCOCK

90543-273-000

$2.25

25

WASHER, SPECIAL (8MM)

90544-283-000

$2.61

26

DUST SEAL, FR. FORK (NOT AVAILABLE)

91254-MA0-003

Unavailable

27

OIL SEAL (37X50X11)

91255-461-003

$23.26

27

OIL SEAL (37X50X11) This part replaces 91255-461-004.

91255-461-003

$23.26

28

O-RING (5.8X1.9) This part replaces 91301-469-003.

91305-323-000

$2.80

28

O-RING (5.8X1.9)

91305-323-000

$2.80

28

O-RING (5.6X1.9) (ARAI)

91318-ME5-003

$3.42

29

O-RING (29X2.4) (NOK)

91344-PC9-004

$3.28

29

O-RING (29X2.4) (NOK) This part replaces 91356-371-000.

91344-PC9-004

$3.28

30

BOLT, HEX. (6X8) This part replaces 92000-06008.

92101-06008-0A

$1.25

30

BOLT, HEX. (6X8) This part replaces 92000-06008-0A.

92101-06008-0A

$1.25

30

BOLT, HEX. (6X8)

92101-06008-0A

$1.25

31

BOLT, STUD (6X25) This part replaces 92700-06035-0E.

92900-06025-0E

$0.94

31

BOLT, STUD (6X25)

92900-06025-0E

$0.94

32

SCREW, PAN (3X25)

93500-03025-0A

$0.75

33

SCREW, PAN (5X18)

93500-05018-0A

$0.75

34

NUT, HEX. (5MM)

94001-05000-0S

$2.42

35

NUT, FLANGE (6MM)

94050-06000

$0.59

36

BOLT, FLANGE (6X16) This part replaces 95700-06016-00.

95701-06016-00

$1.48

36

BOLT, FLANGE (6X16)

95701-06016-00

$1.48
