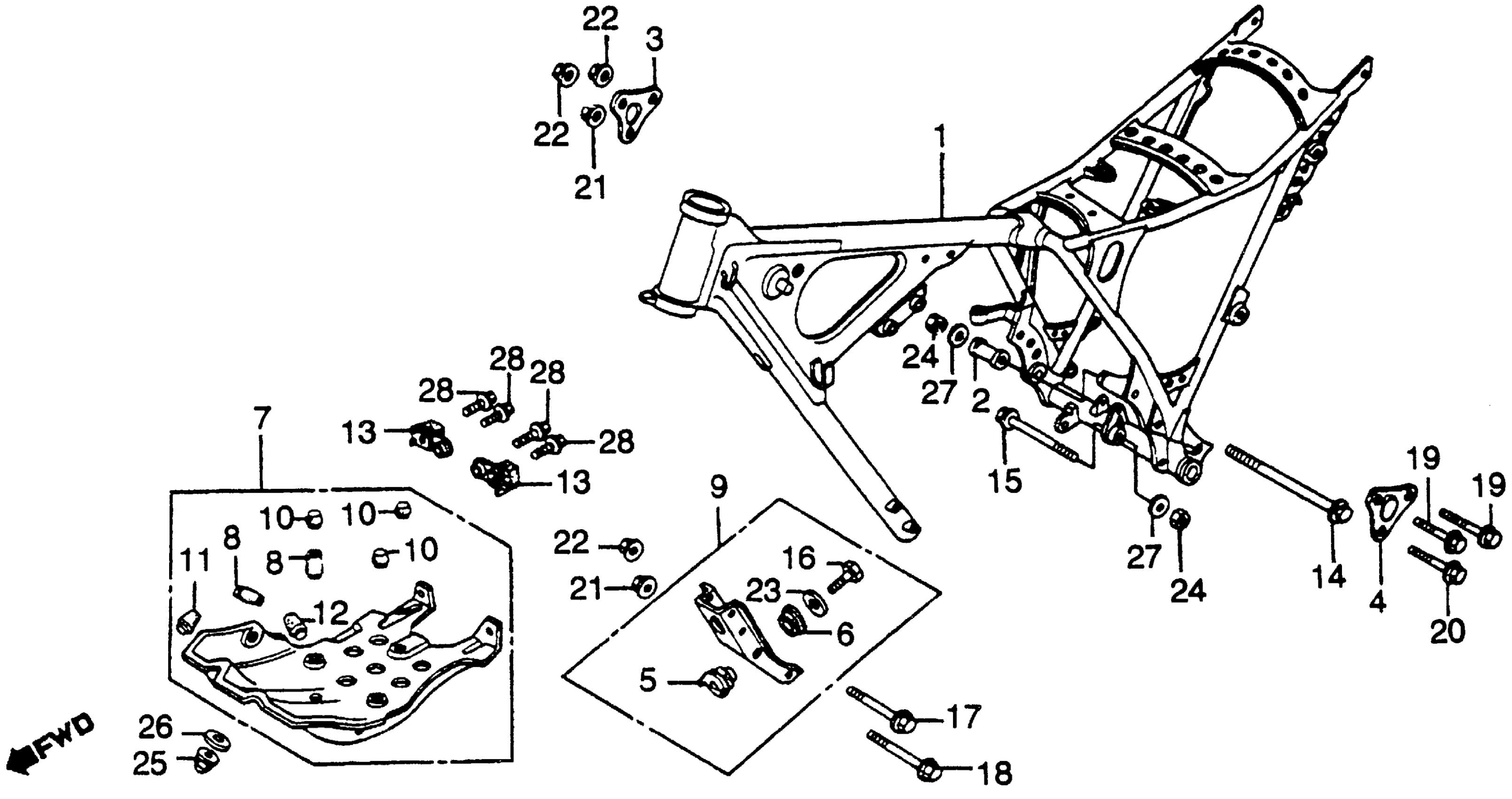

Honda XL500RA (82) MOTORCYCLE, JPN, VIN# JH2PD020-CM000032 TO JH2PD020-CM009868 XL500R FRAME 82 Diagram

FRAME *R110* (MONZA RED) (NOT AVAILABLE)

50100-MC4-670ZA

Unavailable

COLLAR, ENGINE HANGER *R110* (MONZA RED)

50130-MA0-000ZB

Unavailable

PLATE, R. ENGINE HANGER (UPPER) *R110* (MONZA RED) (NOT AVAILABLE)

50138-429-000ZC

Unavailable

PLATE, L. ENGINE HANGER (UPPER) *R110* (MONZA RED) (NOT AVAILABLE)

50139-429-000ZC

Unavailable

MOUNT A, SKID (NOT AVAILABLE)

50325-428-000

Unavailable

MOUNT B, SKID (NOT AVAILABLE)

50326-428-000

Unavailable

PLATE, SKID (NOT AVAILABLE)

50351-KB7-000

Unavailable

RUBBER A, STOPPER

50352-434-000

$5.55

HANGER, FR. ENGINE *R110* (MONZA RED) (NOT AVAILABLE)

50353-MC4-000ZA

Unavailable

RUBBER B, STOPPER

50354-428-000

$2.75

RUBBER B, STOPPER

50354-434-000

$5.34

RUBBER C, STOPPER

50355-434-000

$4.45

RUBBER, SKID PLATE MOUNTING (NOT AVAILABLE)

50361-MC4-000

Unavailable

BOLT, FLANGE (12X240) (NOT AVAILABLE)

90104-429-000

Unavailable

BOLT, FLANGE (12X140) (NOT AVAILABLE)

90114-MA0-000

Unavailable

BOLT, HEX. (8X28) (NOT AVAILABLE)

90115-428-000

Unavailable

BOLT, FLANGE (8X60)

90154-MA0-000

$7.31

BOLT, FLANGE (10X62)

90101-MBB-000

$4.04

BOLT, FLANGE (10X62) This part replaces 90155-MA0-000.

90101-MBB-000

$4.04

BOLT, FLANGE (8X65)

90156-MA0-770

$7.31

BOLT, FLANGE (10X73) (NOT AVAILABLE)

90157-MA0-770

Unavailable

NUT, FLANGE (10MM)

90308-382-670

$4.07

NUT, HEX. (8MM)

90309-357-000

$3.40

WASHER (8.3MM)

90534-011-000

$1.49

NUT, HEX. (12MM) This part replaces 91544-371-980.

94001-12000-0S

$1.66

NUT, HEX. (12MM) This part replaces 94001-12000.

94001-12000-0S

$1.66

NUT, HEX. (12MM)

94001-12000-0S

$1.66

NUT, CAP (8MM)

94021-08000-0S

$1.55

WASHER, PLAIN (8MM)

94101-08000

$1.49

WASHER, PLAIN (12MM)

94101-12000

$1.49

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

BOLT, FLANGE (6X12)

95701-06012-00

$1.62
