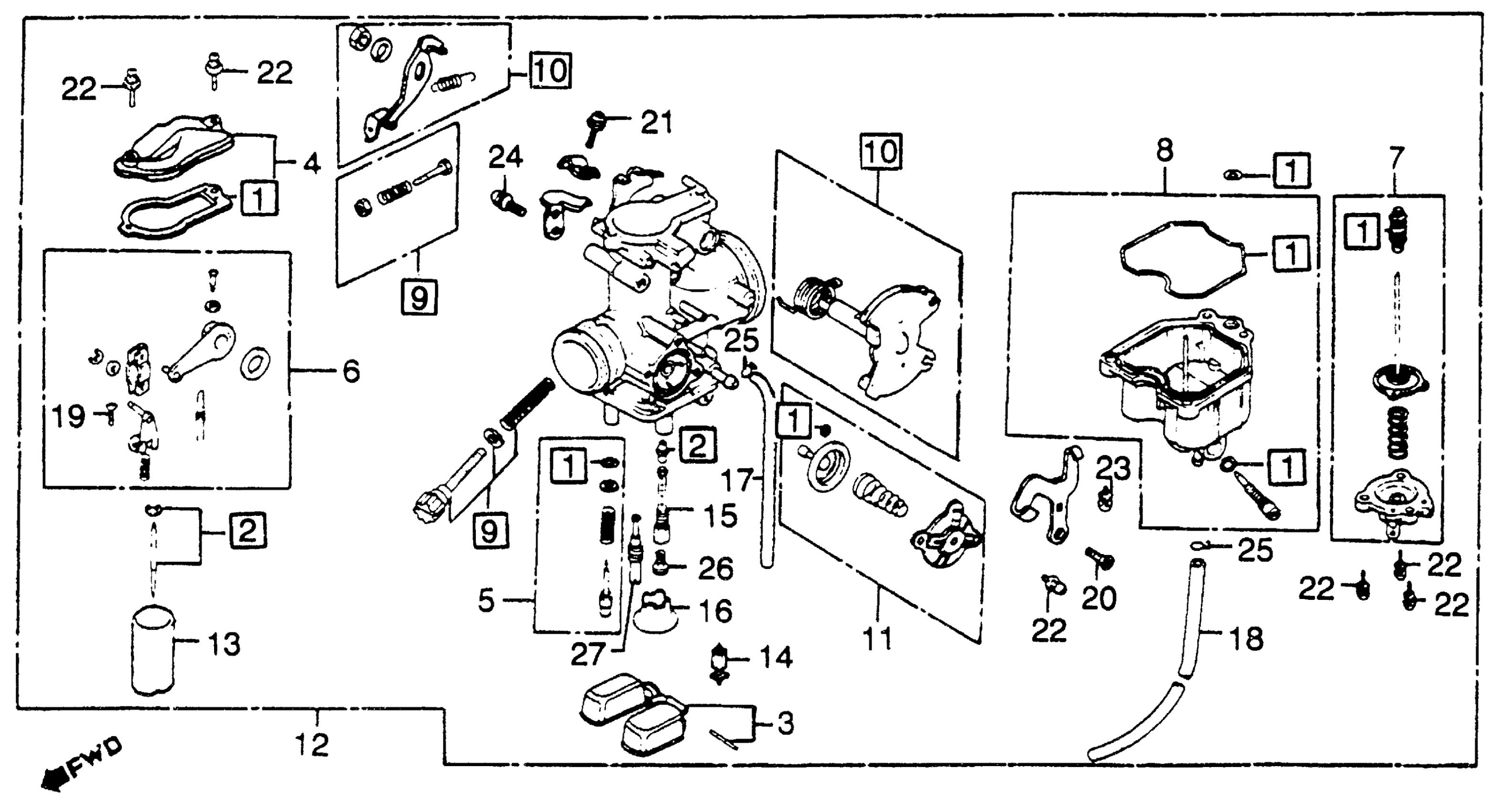

Honda XL500RA (82) MOTORCYCLE, JPN, VIN# JH2PD020-CM000032 TO JH2PD020-CM009868 XL500R CARBURETOR 82 Diagram

#

Description
Price

1

GASKET SET (NOT AVAILABLE)

16010-435-671

Unavailable

2

NEEDLE SET, JET (NOT AVAILABLE)

16012-MC4-671

Unavailable

3

FLOAT SET

16013-397-971

Unavailable

4

TOP SET (NOT AVAILABLE)

16014-KW3-014

Unavailable

4

TOP SET (NOT AVAILABLE) This part replaces 16014-429-671.

16014-KW3-014

Unavailable

4

TOP SET (NOT AVAILABLE) This part replaces 16014-429-771.

16014-KW3-014

Unavailable

5

SCREW SET (NOT AVAILABLE) This part replaces 16016-435-771.

16016-MG2-791

Unavailable

6

ARM SET, LINK

16018-428-671

$117.16

7

DIAPHRAGM SET, PUMP (NOT AVAILABLE)

16021-KB7-671

Unavailable

8

CHAMBER SET, FLOAT

16015-428-771

Unavailable

8

CHAMBER SET, FLOAT This part replaces 16023-426-003.

16015-428-771

Unavailable

9

SCREW SET B (NOT AVAILABLE)

16028-435-771

Unavailable

10

LINK SET, THROTTLE (NOT AVAILABLE)

16032-435-671

Unavailable

11

VALVE SET, AIR CUT This part replaces 16048-KB7-004.

16048-KB7-901

$149.08

11

VALVE SET, AIR CUT

16048-KB7-901

$149.08

12

CARBURETOR ASSY. | Use up to Engine SN 5015781 This part replaces 16100-MC4-671.

16100-MC4-675

Unavailable

12

CARBURETOR ASSY. | Use up to Engine SN 5015781 This part replaces 16100-MC4-672.

16100-MC4-675

Unavailable

12

CARBURETOR ASSY. This part replaces 16100-MC4-672.

16100-MC4-675

Unavailable

12

CARBURETOR ASSY. | Use up to Engine SN 5015781 This part replaces 16100-MC4-673.

16100-MC4-675

Unavailable

12

CARBURETOR ASSY. This part replaces 16100-MC4-673.

16100-MC4-675

Unavailable

12

CARBURETOR ASSY. | Use up to Engine SN 5015781 This part replaces 16100-MC4-674.

16100-MC4-675

Unavailable

12

CARBURETOR ASSY. This part replaces 16100-MC4-674.

16100-MC4-675

Unavailable

12

CARBURETOR ASSY. | Use up to Engine SN 5015781

16100-MC4-675

Unavailable

12

CARBURETOR ASSY.

16100-MC4-675

Unavailable

13

VALVE, THROTTLE (NOT AVAILABLE)

16111-435-671

Unavailable

14

VALVE, FLOAT

16155-397-971

$41.45

15

HOLDER, NEEDLE JET (NOT AVAILABLE)

16165-435-771

Unavailable

16

HOLDER, JET

16168-382-014

$9.81

17

TUBE, FUEL This part replaces 16198-HB5-405.

16199-KG4-405

$9.49

17

TUBE, AIR VENT

16199-KG4-405

$9.49

17

TUBE, FUEL This part replaces 16199-355-701.

16199-KG4-405

$9.49

18

TUBE, OVERFLOW

16199-KG4-405

$9.49

18

TUBE, FUEL This part replaces 16199-402-004.

16199-KG4-405

$9.49

19

SCREW, PAN (3X8)

93500-03008-0H

$1.49

20

SCREW, FLAT (5X10)

93600-05010-0H

$1.49

21

SCREW-WASHER (4X8)

93892-04008-08

$1.49

22

SCREW-WASHER (4X12)

93892-04012-08

$1.49

23

SCREW-WASHER (4X16)

93892-04016-08

$1.49

24

SCREW-WASHER (5X10)

93892-05010-08

$1.49

25

CLIP, TUBE (B7)

95002-02070

$1.80

26

JET (#128) | Use up to Engine SN PD77A A This part replaces 99101-GHB-1280.

99101-PH9-1280

$6.58

26

JET, MAIN (#135) | Use from Engine SN PD77A B This part replaces 99101-GHB-1350.

99101-KPE-1350

$12.72

26

JET, MAIN (#135) | Use from Engine SN PD77A B

99101-KPE-1350

$12.72

26

JET, MAIN (#128) | Use up to Engine SN PD77A A

99101-PH9-1280

$6.58

26

JET (#128) | Use up to Engine SN PD77A A This part replaces 99101-393-1280.

99101-PH9-1280

$6.58

26

JET, MAIN (#135) | Use from Engine SN PD77A B This part replaces 99101-393-1350.

99101-KPE-1350

$12.72

27

JET, SLOW (#52) (NOT AVAILABLE)

99103-427-0520

Unavailable
