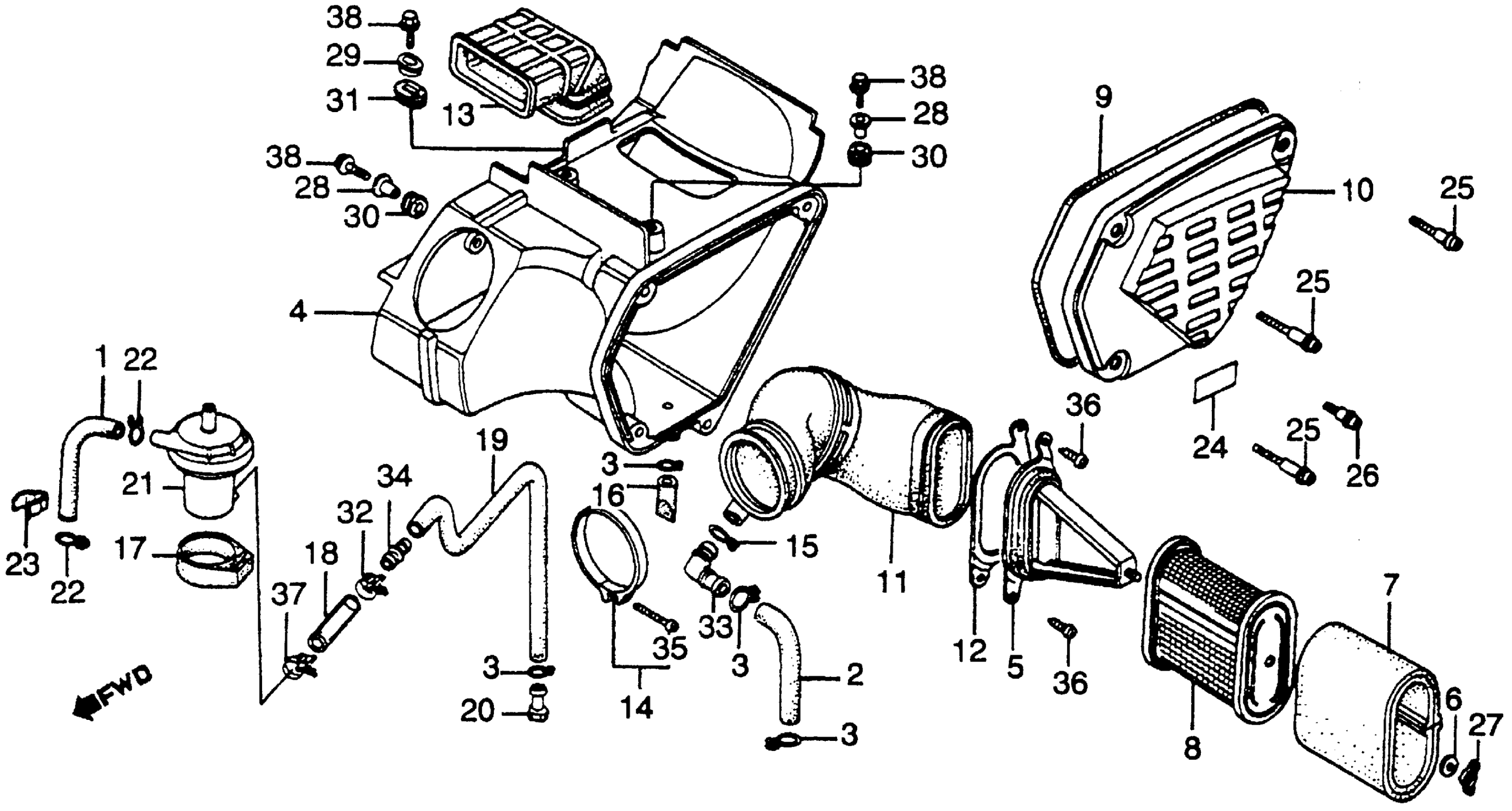

Honda XL500RA (82) MOTORCYCLE, JPN, VIN# JH2PD020-CM000032 TO JH2PD020-CM009868 XL500R AIR CLEANER 82 Diagram

#

Description
Price

1

TUBE A, BREATHER (NOT AVAILABLE)

15761-435-000

Unavailable

2

TUBE B, BREATHER (NOT AVAILABLE)

15762-MC4-000

Unavailable

3

CLIP, BREATHER TUBE

15772-292-010

$2.92

4

HOUSING, AIR CLEANER (NOT AVAILABLE)

17210-MC4-000

Unavailable

5

STAY B, ELEMENT SETTING (NOT AVAILABLE)

17212-MC4-000

Unavailable

6

WASHER, AIR CLEANER This part replaces 17212-PA0-000.

17212-PC0-000

Unavailable

6

WASHER, AIR CLEANER (NOT AVAILABLE)

17212-PC0-000

Unavailable

7

ELEMENT, AIR CLEANER

17213-MC4-000

Unavailable

8

HOLDER ASSY., ELEMENT (NOT AVAILABLE)

17214-MC4-000

Unavailable

9

SEAL, AIR CLEANER COVER This part replaces 17212-GC8-000.

17222-MN4-405

$7.31

9

SEAL, AIR CLEANER COVER This part replaces 17212-GJ5-000.

17222-MN4-405

$7.31

9

SEAL, AIR CLEANER COVER This part replaces 17212-GR1-000.

17222-MN4-405

$7.31

9

SEAL, AIR CLEANER COVER This part replaces 17212-KJ9-000.

17222-MN4-405

$7.31

9

SEAL, AIR CLEANER COVER This part replaces 17219-HB3-000.

17222-MN4-405

$7.31

9

SEAL, AIR CLEANER COVER This part replaces 17219-MA0-000.

17222-MN4-405

$7.31

9

SEAL, AIR CLEANER COVER This part replaces 17219-MC4-000.

17222-MN4-405

$7.31

9

SEAL, AIR CLEANER COVER

17222-MN4-405

$7.31

9

SEAL, AIR CLEANER COVER This part replaces 17231-MB1-000.

17222-MN4-405

$7.31

9

SEAL, AIR CLEANER COVER This part replaces 17231-MB2-000.

17222-MN4-405

$7.31

9

SEAL, AIR CLEANER COVER This part replaces 17231-MB4-000.

17222-MN4-405

$7.31

10

COVER, AIR CLEANER HOUSING (NOT AVAILABLE)

17220-MC4-000

Unavailable

11

TUBE, AIR CLEANER CONNECTING (NOT AVAILABLE)

17222-MC4-000

Unavailable

12

STAY A, ELEMENT SETTING (NOT AVAILABLE)

17223-MC4-000

Unavailable

13

DUCT, AIR CLEANER IN. (NOT AVAILABLE)

17240-MC4-000

Unavailable

14

BAND, AIR CLEANER CONNECTING TUBE (60) This part replaces 17256-358-000.

95018-60250

$6.25

14

BAND, AIR CLEANER CONNECTING TUBE (60) This part replaces 17256-425-010.

95018-60250

$6.25

14

BAND, AIR CLEANER CONNECTING TUBE (60) This part replaces 17256-429-000.

95018-60250

$6.25

14

BAND, AIR CLEANER CONNECTING TUBE (60)

95018-60250

$6.25

15

CLIP, BREATHER TUBE

17316-611-000

$9.23

16

TUBE, DRAIN

17358-170-000

$3.74

17

BAND, BREATHER SEPARATOR

17366-435-000

$6.98

18

TUBE A, DRAIN (NOT AVAILABLE)

17367-MC4-000

Unavailable

19

TUBE B, DRAIN (NOT AVAILABLE)

17368-MC4-000

Unavailable

20

PLUG, BREATHER TUBE

17370-382-870

$3.74

21

SEPARATOR, BREATHER (NOT AVAILABLE)

17370-435-315

Unavailable

22

CLIP, SUB-TANK HOSE

17724-102-700

$4.51

23

CLIP, PULSER CABLE (NOT AVAILABLE)

32975-428-000

Unavailable

24

LABEL, AIR CLEANER CAUTION

87508-120-000

$5.26

25

SCREW, AIR CLEANER SPECIAL (NOT AVAILABLE)

90113-MA0-000

Unavailable

26

SCREW, AIR CLEANER SPECIAL (NOT AVAILABLE)

90113-MC4-000

Unavailable

27

NUT, TOOL BOX SETTING

90325-044-000

$3.51

28

COLLAR A, AIR CLEANER HOUSING (NOT AVAILABLE)

90501-MC4-000

$3.67

29

COLLAR B, AIR CLEANER HOUSING (NOT AVAILABLE)

90502-MC4-000

Unavailable

30

GROMMET A, AIR CLEANER HOUSING

90505-MC4-000

$3.06

31

GROMMET B, AC CASE (NOT AVAILABLE)

90506-MC4-000

Unavailable

32

CLIP, TUBE (NOT AVAILABLE)

91462-393-780

Unavailable

33

JOINT, TUBE

91463-MC4-000

$5.90

34

JOINT, TUBE

91463-393-780

$1.80

35

SCREW, PAN (4X25)

93500-04025-0A

$1.93

36

SCREW, TAPPING (6X16)

93903-36220

$1.49

37

CLIP, TUBE (A16)

95002-01160

$4.05

38

BOLT, FLANGE (6X16) This part replaces 95700-06016-00.

95701-06016-00

$1.55

38

BOLT, FLANGE (6X16)

95701-06016-00

$1.55
