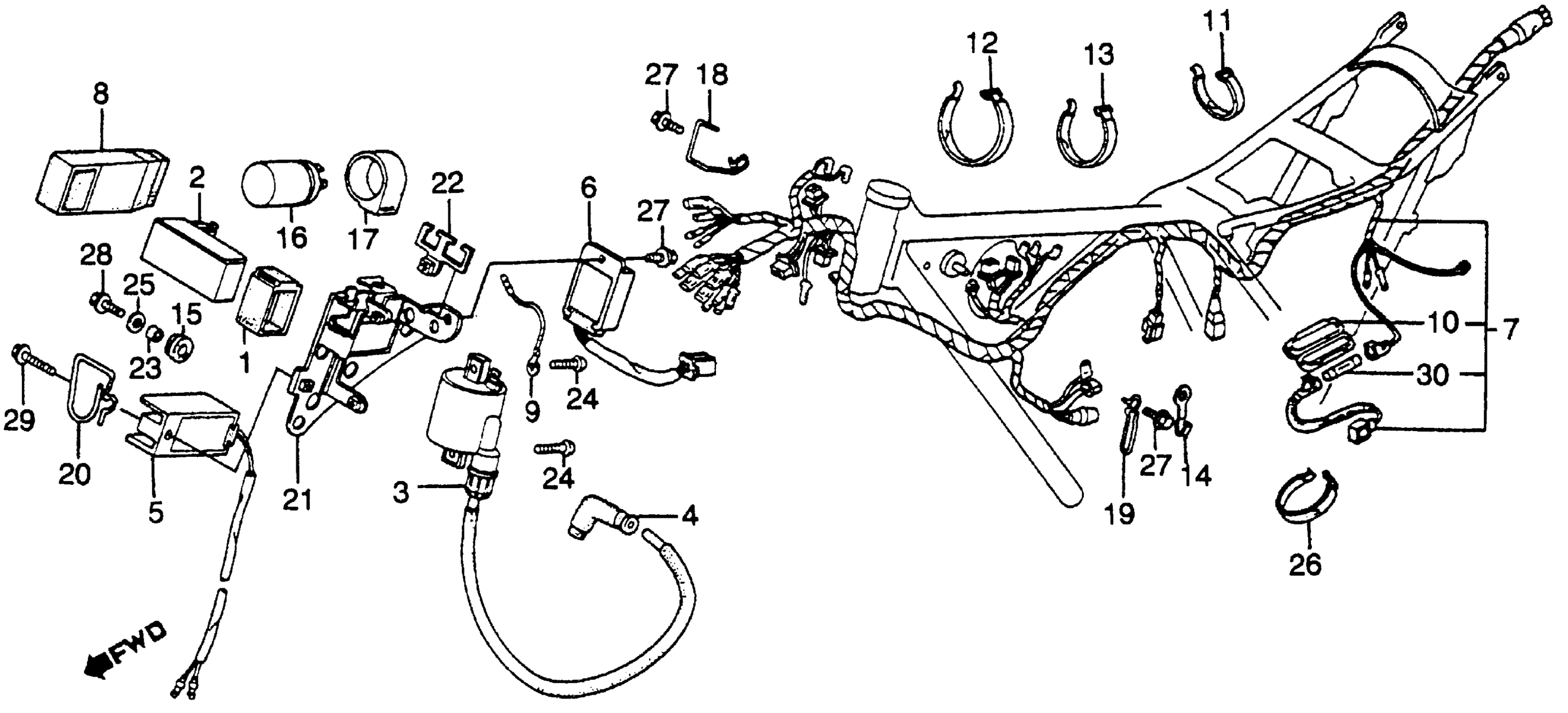

Honda XL500RA (82) MOTORCYCLE, JPN, VIN# JH2PD020-CM000032 TO JH2PD020-CM009868 WIRE HARNESS + IGNITION COIL Diagram

#

Description
Price

1

CUSHION, IGNITION CONTROL MODULE (CDI)

30401-KB4-000

$6.92

2

MODULE, IGNITION CONTROL (CDI) (SHINDENGEN) (NOT AVAILABLE)

30410-MC4-003

Unavailable

3

COIL ASSY., IGNITION This part replaces 30500-KB7-003.

30500-VM3-405

Unavailable

3

COIL ASSY., IGNITION This part replaces 30500-KB9-000.

30500-VM3-405

Unavailable

3

COIL ASSY., IGNITION

30500-VM3-405

Unavailable

3

COIL ASSY., IGNITION This part replaces 30500-167-003.

30500-VM3-405

Unavailable

3

COIL ASSY., IGNITION This part replaces 30500-167-013.

30500-VM3-405

Unavailable

3

COIL ASSY., IGNITION This part replaces 30500-187-000.

30500-VM3-405

Unavailable

3

COIL ASSY., IGNITION This part replaces 30500-187-010.

30500-VM3-405

Unavailable

4

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-MA0-153.

30700-MA0-163

$22.32

4

CAP ASSY., NOISE SUPPRESSOR

30700-MA0-163

$22.32

5

REGULATOR (NOT AVAILABLE) This part replaces 31400-KB7-008.

31400-KA2-641

Unavailable

6

RECTIFIER, REGULATOR (NOT AVAILABLE) This part replaces 31600-MC4-000.

31600-KG0-000

Unavailable

7

WIRE HARNESS (NOT AVAILABLE)

32100-MC4-670

Unavailable

8

COVER, C.D.I. CONNECTOR (NOT AVAILABLE)

32102-KB7-000

Unavailable

9

SUB-WIRE A (NOT AVAILABLE)

32111-KB7-000

Unavailable

10

CASE, FUSE CONNECTOR

32111-230-000

$4.28

11

BAND, WIRE (NOT AVAILABLE)

32161-MA0-000

Unavailable

12

BAND, WIRE

32161-399-000

Unavailable

13

BAND, CABLE

32161-402-000

Unavailable

14

CLAMP, WIRE (NOT AVAILABLE)

32810-MC4-000

Unavailable

15

GROMMET, WIRE HARNESS

32983-028-000

$1.49

16

RELAY, TURN SIGNAL This part replaces 38300-415-004.

38300-MG2-008

Unavailable

16

RELAY, TURN SIGNAL This part replaces 38300-415-671.

38300-MG2-008

Unavailable

16

RELAY, TURN SIGNAL This part replaces 38301-415-004.

38300-MG2-008

Unavailable

17

SUSPENSION, TURN SIGNAL RELAY

38306-292-000

$3.76

18

CLAMP A, WIRE (NOT AVAILABLE)

45463-MC4-000

Unavailable

19

CLAMP B, WIRE (NOT AVAILABLE)

45464-MC4-000

Unavailable

20

CLAMP, CLUTCH CABLE (NOT AVAILABLE)

45466-MC4-000

Unavailable

21

PLATE, ELECTRIC BASE (NOT AVAILABLE)

50300-MC4-000

Unavailable

22

PLATE, CONNECTOR (NOT AVAILABLE)

50301-MC4-000

Unavailable

23

COLLAR, DISTANCE

66181-706-000

Unavailable

24

SCREW, PAN (5X16)

93500-05016-0A

$1.49

25

WASHER, PLAIN (6MM)

94103-06000

$1.49

26

BAND B1, WIRE

32161-404-000

$2.23

26

BAND B1, CABLE This part replaces 95014-61100.

32161-404-000

$2.23

27

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

27

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

28

BOLT, FLANGE (6X16) This part replaces 95700-06016-00.

95701-06016-00

$1.55

28

BOLT, FLANGE (6X16)

95701-06016-00

$1.55

29

BOLT, FLANGE (6X28)

95700-06028-00

$1.73

29

BOLT, FLANGE (6X28)

95701-06028-00

$1.73

30

FUSE A (10A)

98200-11000

$1.80
