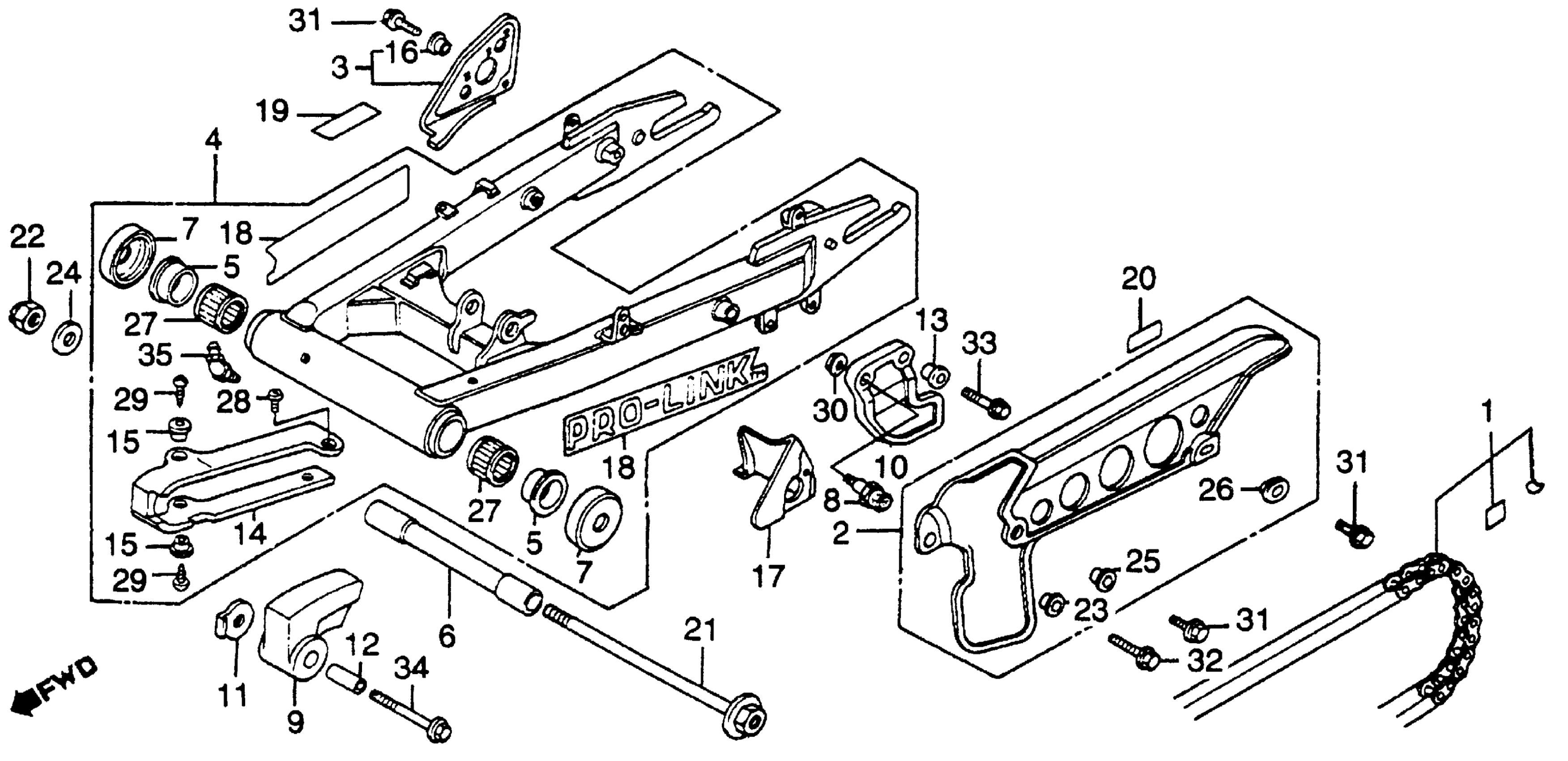

Honda XL500RA (82) MOTORCYCLE, JPN, VIN# JH2PD020-CM000032 TO JH2PD020-CM009868 SWINGARM + CHAIN CASE Diagram

#

Description
Price

1

CHAIN SET, DRIVE (520VS-100LE) (DAIDO) (NOT AVAILABLE) | Use up to Frame SN CM006317

405A3-MC4-003

Unavailable

1

CHAIN SET, DRIVE (520S0-100LE) (TAKASAGO) (NOT AVAILABLE)

405A3-MC4-005

Unavailable

1

CHAIN SET, DRIVE (520VS-100LE) (DAIDO) (NOT AVAILABLE) | Use from Frame SN CM006318

405A3-443-631

Unavailable

2

CASE, DRIVE CHAIN

40510-KB7-000

Unavailable

3

GUARD, PILLION FOOTPEG (NOT AVAILABLE)

50720-KB7-000

Unavailable

4

SWINGARM *NH35M* (CLOUD SILVER METALLIC) (NOT AVAILABLE)

52100-KB7-000ZA

Unavailable

5

BUSH, PIVOT THRUST

52109-430-300

$16.01

6

COLLAR, SWINGARM CENTER (NOT AVAILABLE)

52141-435-730

Unavailable

7

CAP, DUST SEAL (NOK) This part replaces 52144-268-000.

52144-356-005

$17.31

7

CAP, DUST SEAL (NOK) This part replaces 52144-286-000.

52144-356-005

$17.31

7

CAP, DUST SEAL (NOK) This part replaces 52144-329-000.

52144-356-005

$17.31

7

CAP, DUST SEAL (NOK) This part replaces 52144-356-003.

52144-356-005

$17.31

7

CAP, SWINGARM DUST SEAL (NOK)

52144-356-005

$17.31

8

STOPPER, SIDE STAND (NOT AVAILABLE)

52153-MC4-000

Unavailable

9

SLIDER, CHAIN (NOT AVAILABLE)

52155-MC4-000

Unavailable

10

GUARD, CHAIN

52156-KB7-000

Unavailable

11

NUT, CHAIN SLIPPER (NOT AVAILABLE)

52157-MC4-000

Unavailable

12

COLLAR, CHAIN SLIPPER

52158-MC4-000

Unavailable

13

COLLAR, CHAIN GUARD

52159-KB7-000

$6.34

14

SLIDER, CHAIN This part replaces 52170-MC4-000.

52170-MC4-010

Unavailable

14

SLIDER, CHAIN

52170-MC4-010

Unavailable

15

COLLAR, CHAIN SLIDER

52171-MC4-000

$4.99

16

COLLAR, FR. FENDER SETTING

61101-441-000

$4.13

17

SPLASH GUARD (NOT AVAILABLE)

80105-MC4-000

Unavailable

18

EMBLEM, RR. SWINGARM (NOT AVAILABLE)

87121-GC4-300

Unavailable

19

MARK, MUFFLER CAUTION

87504-028-670

$2.92

20

LABEL, TIRE CAUTION (NOT AVAILABLE)

87505-KB7-670

Unavailable

21

BOLT, SWINGARM PIVOT

90121-MA0-770

Unavailable

22

NUT, AXLE (14MM) This part replaces 90305-197-003.

90305-197-013

$6.14

22

NUT, U (14MM)

90305-197-013

$6.14

23

WASHER, FR. COVER SETTING

90501-124-000

$3.74

24

WASHER, SWINGARM PIVOT (NOT AVAILABLE)

90501-447-000

Unavailable

25

WASHER (6X20)

90512-300-000

$3.08

26

WASHER (6X9)

90513-323-000

$1.84

27

BEARING, SWINGARM PIVOT (NTN)

91071-MA0-003

$33.10

27

BEARING, RR. SWINGARM PIVOT (TOYO) This part replaces 91071-MA0-004.

91071-MA0-003

$33.10

28

SCREW, PAN (6X8) This part replaces 90053-371-980.

93500-06008-0H

$1.49

28

SCREW, PAN (6X8)

93500-06008

$1.49

28

SCREW, PAN (6X8)

93500-06008-0A

$1.49

28

SCREW, PAN (6X8)

93500-06008-0H

$1.49

28

SCREW, PAN (6X8) This part replaces 93500-06008-1H.

93500-06008-0H

$1.49

29

SCREW, TAPPING (6X12)

93901-26110

$1.49

30

NUT, FLANGE (6MM)

94050-06000

$1.49

31

BOLT, FLANGE (6X10) This part replaces 95700-06010-00.

95701-06010-00

$1.49

31

BOLT, FLANGE (6X10)

95701-06010-00

$1.49

32

BOLT, FLANGE (6X18) BOLT, HEX. (6X18) This part replaces 95700-06018-00.

95701-06018-00

$1.62

32

BOLT, FLANGE (6X18)

95701-06018-00

$1.62

33

BOLT, FLANGE (6X20) This part replaces 95700-06020-00.

95701-06020-00

$1.55

33

BOLT, FLANGE (6X20)

95701-06020-00

$1.55

34

BOLT, FLANGE (8X45) This part replaces 95700-08045-00.

95701-08045-00

$1.49

34

BOLT, FLANGE (8X45)

95701-08045-00

$1.49

35

NIPPLE, GREASE (B.T6S)

96201-80000

$2.56
