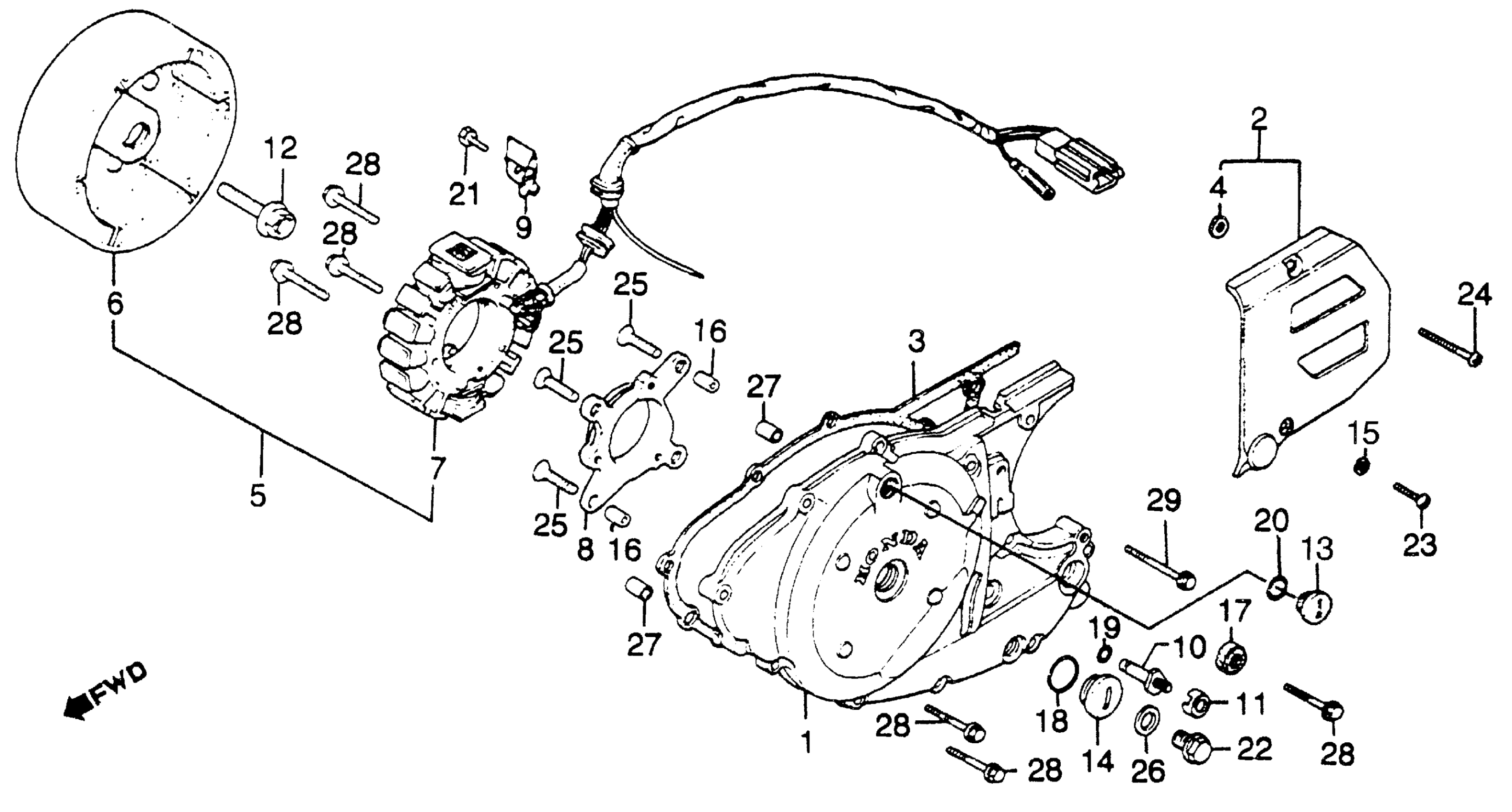

Honda XL500RA (82) MOTORCYCLE, JPN, VIN# JH2PD020-CM000032 TO JH2PD020-CM009868 LEFT CRANKCASE COVER + GENERATOR Diagram

#

Description
Price

1

COVER, L. CRANKCASE (NOT AVAILABLE)

11341-MC4-000

Unavailable

2

COVER, L. RR. (NOT AVAILABLE)

11350-MC4-000

Unavailable

3

GASKET, L. CRANKCASE COVER This part replaces 11395-MA0-000.

11395-MA0-306

Unavailable

3

GASKET, L. CRANKCASE COVER

11395-MA0-306

Unavailable

4

GASKET, L. RR. COVER This part replaces 11396-MC4-300.

11396-MC4-306

Unavailable

5

ALTERNATOR ASSY., FLYWHEEL TYPE (DENSO) (NOT AVAILABLE)

31100-MC4-004

Unavailable

6

FLYWHEEL (DENSO) (NOT AVAILABLE)

31110-MC4-004

Unavailable

7

STATOR (DENSO) This part replaces 31120-KB7-405.

31120-KB7-415

Unavailable

7

STATOR (DENSO)

31120-KB7-415

Unavailable

7

STATOR (DENSO) This part replaces 31120-MC4-004.

31120-KB7-415

Unavailable

8

SPACER, STATOR (NOT AVAILABLE)

31125-471-700

Unavailable

9

CLAMP, CABLE (NOT AVAILABLE)

32111-428-000

Unavailable

10

CONTACT ASSY., NEUTRAL SWITCH

35750-028-000

Unavailable

11

SPACER, NEUTRAL SWITCH (NOT AVAILABLE)

35752-329-310

Unavailable

12

BOLT, FLANGE (12X50)

90023-471-000

$13.00

13

CAP, ALTERNATOR

90084-471-000

Unavailable

14

CAP (30MM) This part replaces 90087-471-000.

90087-MR1-000

$19.89

15

WASHER, SEALING (6MM)

90441-706-000

$1.49

16

PIN, DOWEL (8X5) (NOT AVAILABLE)

90701-471-000

Unavailable

17

OIL SEAL (12X25X7)

91201-362-000

$5.55

18

O-RING (27X2.0)

91301-028-000

$2.92

18

O-RING (27X2) (ARAI) This part replaces 91305-KF0-000.

91305-KF0-003

$2.92

18

O-RING (27X2) (ARAI)

91305-KF0-003

$2.92

19

O-RING (7X1.7)

91301-473-003

$2.72

19

O-RING (6.8X1.9) This part replaces 91302-HA0-004.

91306-PJ4-000

$3.01

19

O-RING (6.8X1.9)

91306-PJ4-000

$3.01

20

O-RING (13.8X2.5)

91303-MG7-003

$3.12

20

O-RING (13.8X2.5)

91303-377-000

$3.42

20

O-RING (13.8X2.5) This part replaces 91303-426-000.

91303-MG7-003

$3.12

21

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

21

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

21

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

22

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.23

23

SCREW, PAN (6X18) This part replaces 93500-06018.

93500-06018-0A

$1.49

23

SCREW, PAN (6X18)

93500-06018-0A

$1.49

24

SCREW, PAN (6X40) This part replaces 93500-06040.

93500-06040-0A

$1.49

24

SCREW, PAN (6X40)

93500-06040-0A

$1.49

25

SCREW, FLAT (6X20) This part replaces 93600-06020.

93600-06020-0A

$1.49

25

SCREW, FLAT (6X20)

93600-06020-0A

$1.49

26

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

27

PIN, DOWEL (10X16)

94301-10160

$2.28

28

BOLT, FLANGE (6X25)

96000-06025-00

$2.00

28

BOLT, FLANGE (6X25)

96001-06025-00

$2.00

29

BOLT, FLANGE (6X32) This part replaces 96000-06032-00.

96001-06032-00

$1.49

29

BOLT, FLANGE (6X32)

96001-06032-00

$1.49
