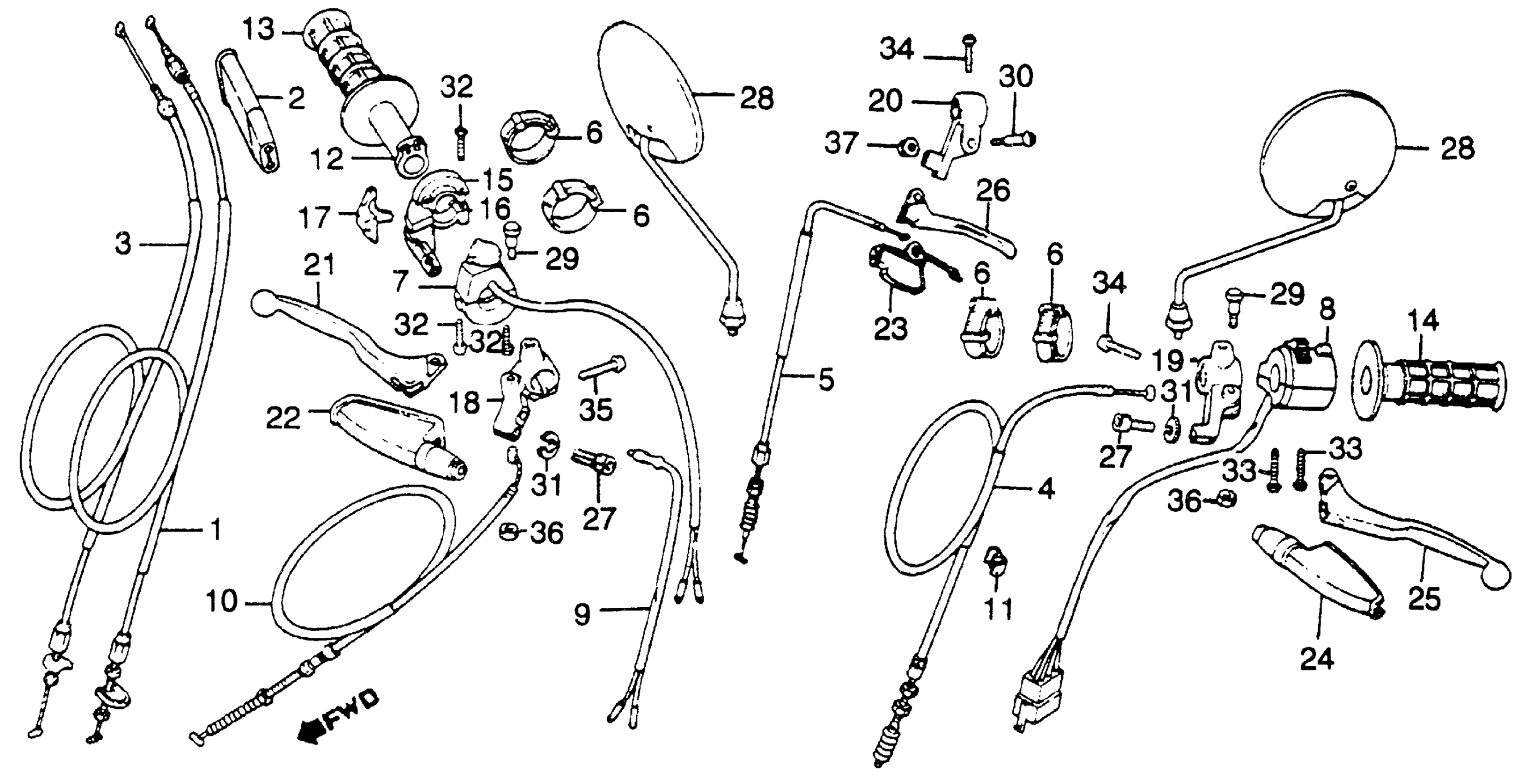

Honda XL500RA (82) MOTORCYCLE, JPN, VIN# JH2PD020-CM000032 TO JH2PD020-CM009868 CONTROL LEVERS + SWITCH + CABLES Diagram

#

Description
Price

1

CABLE A, THROTTLE (NOT AVAILABLE)

17910-MC4-000

Unavailable

2

COVER, THROTTLE CABLE

17913-KB7-000

$9.52

3

CABLE B, THROTTLE

17920-KN5-406

Unavailable

3

CABLE B, THROTTLE This part replaces 17920-MC4-000.

17920-KN5-406

Unavailable

4

CABLE, CLUTCH (NOT AVAILABLE)

22870-MA0-000

Unavailable

5

CABLE, DECOMPRESSION (NOT AVAILABLE)

22890-MC4-000

Unavailable

6

BAND B1, WIRE

32161-404-000

$2.13

7

SWITCH ASSY., ENGINE STOP

35130-KB7-003

Unavailable

8

SWITCH ASSY., TURN SIGNAL & DIMMER (TOYO) (NOT AVAILABLE)

35200-MC4-671

Unavailable

9

SWITCH ASSY., FR. STOP

35340-GAN-620

$17.23

9

SWITCH ASSY., FR. STOP This part replaces 35340-437-661.

35340-GAN-620

$17.23

9

SWITCH ASSY., FR. STOP This part replaces 35350-197-000.

35340-GAN-620

$17.23

10

CABLE, FR. BRAKE (NOT AVAILABLE)

45450-KA4-000

Unavailable

10

CABLE, FR. BRAKE This part replaces 45450-MC4-000.

45450-KA4-000

Unavailable

11

CLIP, FR. BRAKE CABLE

45465-270-000

$4.60

11

CLIP, FR. BRAKE CABLE This part replaces 45465-341-700.

45465-270-000

$4.60

12

PIPE, THROTTLE GRIP This part replaces 53141-429-000.

53141-429-010

$20.10

12

PIPE, THROTTLE GRIP

53141-429-010

$20.10

13

GRIP, R. HANDLE This part replaces 53165-430-000.

53165-GFW-305

$10.87

14

GRIP, L. HANDLEBAR This part replaces 53166-GFW-305.

53166-459-910

$8.47

14

GRIP, L. HANDLEBAR This part replaces 53166-430-000.

53166-459-910

$8.47

15

HOUSING, THROTTLE (UPPER)

53167-KB7-000

$37.99

16

HOUSING, THROTTLE (LOWER) (NOT AVAILABLE)

53168-KB7-000

Unavailable

17

SLIDER, THROTTLE CABLE

53169-KB7-000

$7.37

18

BRACKET, R. HANDLEBAR

53171-KB7-000

Unavailable

19

BRACKET, L. HANDLE LEVER

53172-310-010

$50.27

20

BRACKET, DECOMPRESSION LEVER

53173-435-730

$33.49

21

LEVER, R. HANDLEBAR

53175-KB7-000

Unavailable

22

COVER, R. HANDLE LEVER

53176-428-010

$9.01

23

COVER, L. HANDLEBAR (NOT AVAILABLE)

53177-125-780

Unavailable

24

COVER, L. HANDLE LEVER

53177-430-000

$9.88

25

LEVER, L. HANDLEBAR

53178-KB7-000

$26.49

26

LEVER, DECOMPRESSION

53180-MAG-670

Unavailable

26

LEVER, DECOMPRESSION This part replaces 53180-435-730.

53180-MAG-670

Unavailable

27

BOLT, WIRE ADJUSTING

53192-268-000

$6.08

28

MIRROR This part replaces 88110-KB7-000.

88110-KB7-010

Unavailable

28

MIRROR

88110-KB7-010

Unavailable

29

BOLT, HANDLE LEVER PIVOT

90114-428-870

$3.77

30

SCREW, HANDLE LEVER PIVOT (5X26)

90115-147-000

$2.48

31

NUT, FIXING

90321-315-670

$6.80

31

NUT, FIXING This part replaces 90321-968-000.

90321-315-670

$6.80

32

SCREW, PAN (5X20)

93500-05020-0A

$0.75

33

SCREW, PAN (5X30)

93500-05030-0A

$1.04

34

SCREW, PAN (6X25) This part replaces 93500-06025.

93500-06025-0A

$1.09

34

SCREW, PAN (6X25)

93500-06025-0A

$1.09

35

SCREW, PAN (6X28) This part replaces 93500-06028.

93500-06028-0A

$1.09

35

SCREW, PAN (6X28)

93500-06028-0A

$1.09

36

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.19

36

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.19

36

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.19

36

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.19

36

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.19

36

NUT, HEX. (6MM)

94001-06200-0S

$1.19

36

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.19

37

NUT, FLANGE (5MM)

94050-05000
