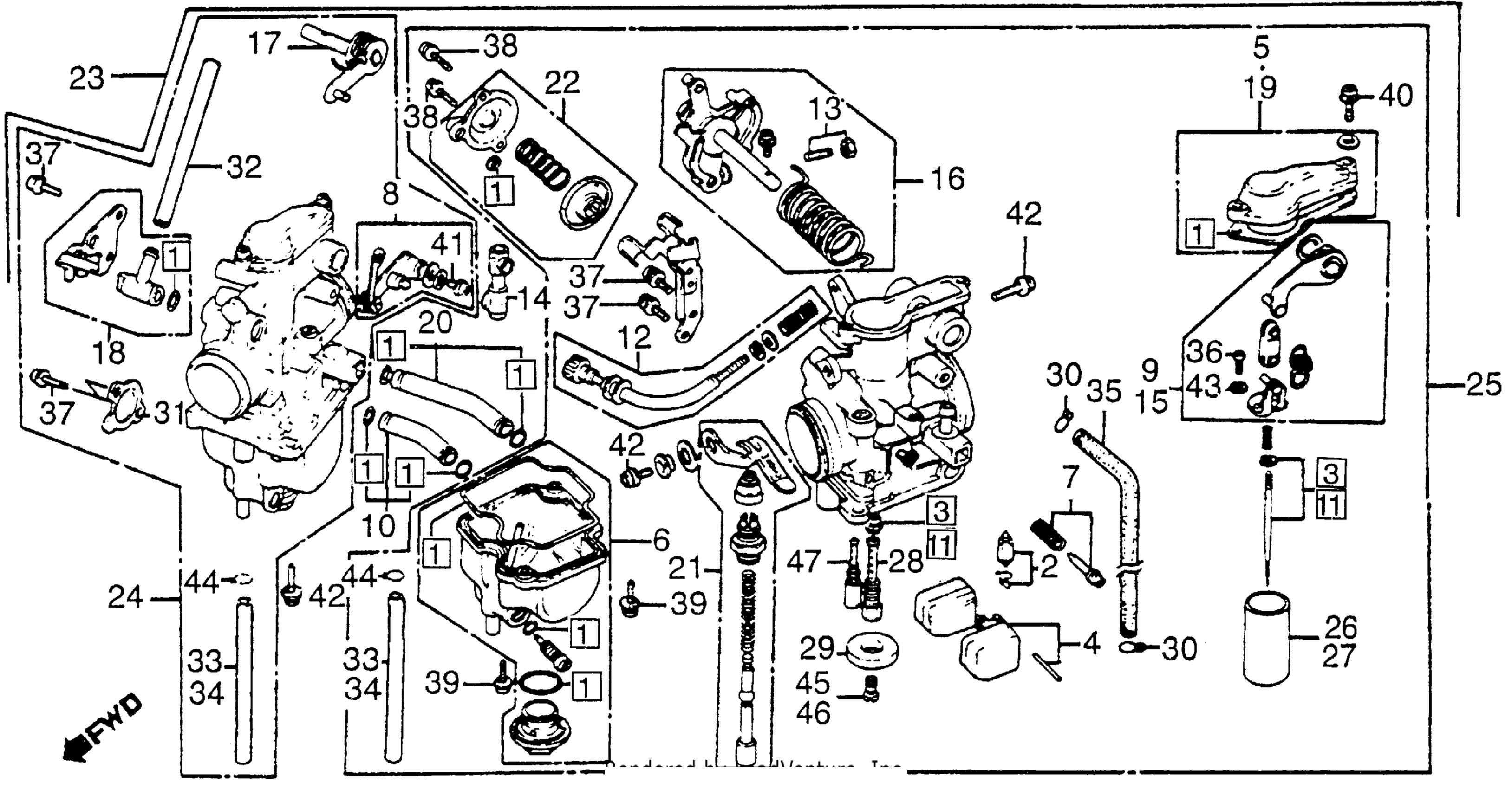

Honda XL350RAC (85) MOTORCYCLE, JPN, VIN# JH2ND031-FK100001 TO JH2ND031-FK101321 CARBURETOR Diagram

#

Description
Price

1

GASKET SET

16010-KF0-305

$37.66

1

GASKET SET This part replaces 16010-KL4-761.

16010-KF0-305

$37.66

2

VALVE SET, FLOAT This part replaces 16011-382-004.

16011-KCK-910

$33.82

3

NEEDLE SET, PRIMARY JET

16012-KL3-671

Unavailable

4

FLOAT SET This part replaces 16013-GC4-701.

16013-KG0-891

Unavailable

4

FLOAT SET

16013-KG0-891

Unavailable

5

TOP SET

16014-KF0-004

Unavailable

6

CHAMBER SET, FLOAT

16015-KL3-671

Unavailable

7

SCREW SET (NOT AVAILABLE)

16016-MG2-004

Unavailable

8

LEVER SET, LINK

16017-KE5-014

Unavailable

10

JOINT SET, FUEL

16026-KF0-004

Unavailable

11

NEEDLE SET, SECONDARY JET

16027-KL3-671

Unavailable

12

SCREW SET

16028-KF0-004

Unavailable

13

SCREW SET

16029-KG0-004

Unavailable

14

HOLDER SET, ADJ.

16030-KF0-004

Unavailable

15

ARM SET, PRIMARY LINK

16031-KF0-004

Unavailable

16

LINK SET, PRIMARY THROTTLE

16032-KG0-891

Unavailable

17

LINK SET, SECONDARY THROTTLE

16035-KG0-891

Unavailable

18

JOINT SET, FUEL

16037-MG3-004

Unavailable

19

TOP SET (B)

16040-KL3-871

Unavailable

21

VALVE SET, STARTER

16046-KL3-791

Unavailable

22

VALVE SET, AIR CUT This part replaces 16048-KF0-004.

16048-MG2-305

Unavailable

22

VALVE SET, AIR CUT

16048-MG2-305

Unavailable

23

CARBURETOR ASSY.

16100-KL3-792

Unavailable

24

CARBURETOR ASSY., R.

16101-KL3-791

Unavailable

25

CARBURETOR ASSY., L. (NOT AVAILABLE)

16102-KL3-791

Unavailable

26

VALVE, SECONDARY THROTTLE

16111-KE5-004

Unavailable

27

VALVE, PRIMARY THROTTLE

16111-KL3-771

Unavailable

28

HOLDER, NEEDLE JET

16165-KL3-671

Unavailable

28

HOLDER, NEEDLE JET This part replaces 16165-KF0-771.

16165-KL3-671

Unavailable

29

HOLDER, JET

16168-KF0-004

Unavailable

30

CLIP, TUBE This part replaces 16179-KE5-003.

16179-KE5-004

Unavailable

30

CLIP, TUBE

16179-KE5-004

Unavailable

31

COVER, AIR CUT VALVE (NOT AVAILABLE)

16193-KB4-671

Unavailable

36

SCREW, PAN (3X8)

93500-03008-0H

$1.49

37

SCREW-WASHER (4X10)

93892-04010-08

$1.49

37

SCREW-WASHER (4X10) This part replaces 93892-04010-18.

93892-04010-08

$1.49

38

SCREW-WASHER (4X12)

93892-04012-08

$1.49

38

SCREW-WASHER (4X12) This part replaces 93892-04012-18.

93892-04012-08

$1.49

39

SCREW-WASHER (4X14)

93892-04014-08

$1.49

39

SCREW-WASHER (4X14) This part replaces 93892-04014-18.

93892-04014-08

$1.49

40

SCREW-WASHER (4X16)

93892-04016-08

$1.49

40

SCREW-WASHER (4X16) This part replaces 93892-04016-18.

93892-04016-08

$1.49

41

SCREW-WASHER (4X20)

93892-04020-08

Unavailable

41

SCREW-WASHER (4X20) This part replaces 93892-04020-18.

93892-04020-08

Unavailable

42

SCREW-WASHER (5X14)

93892-05014-08

$1.49

42

SCREW-WASHER (5X14) This part replaces 93892-05014-18.

93892-05014-08

$1.49

43

WASHER, SPRING (3MM)

94111-03800

$1.49

44

CLIP, TUBE (B8)

95002-02080

$1.80

45

JET (#112)

99101-GHB-1120

$7.98

45

JET (#112) This part replaces 99101-393-1120.

99101-GHB-1120

$7.98

46

JET (#110) This part replaces 99101-GHB-1100.

99101-MBA-1100

$9.11

46

JET (#110) This part replaces 99101-393-1100.

99101-MBA-1100

$9.11

46

JET (#110) This part replaces 99102-393-1100.

99101-MBA-1100

$9.11

47

JET, SLOW (#42)

99103-GC8-0420

Unavailable
