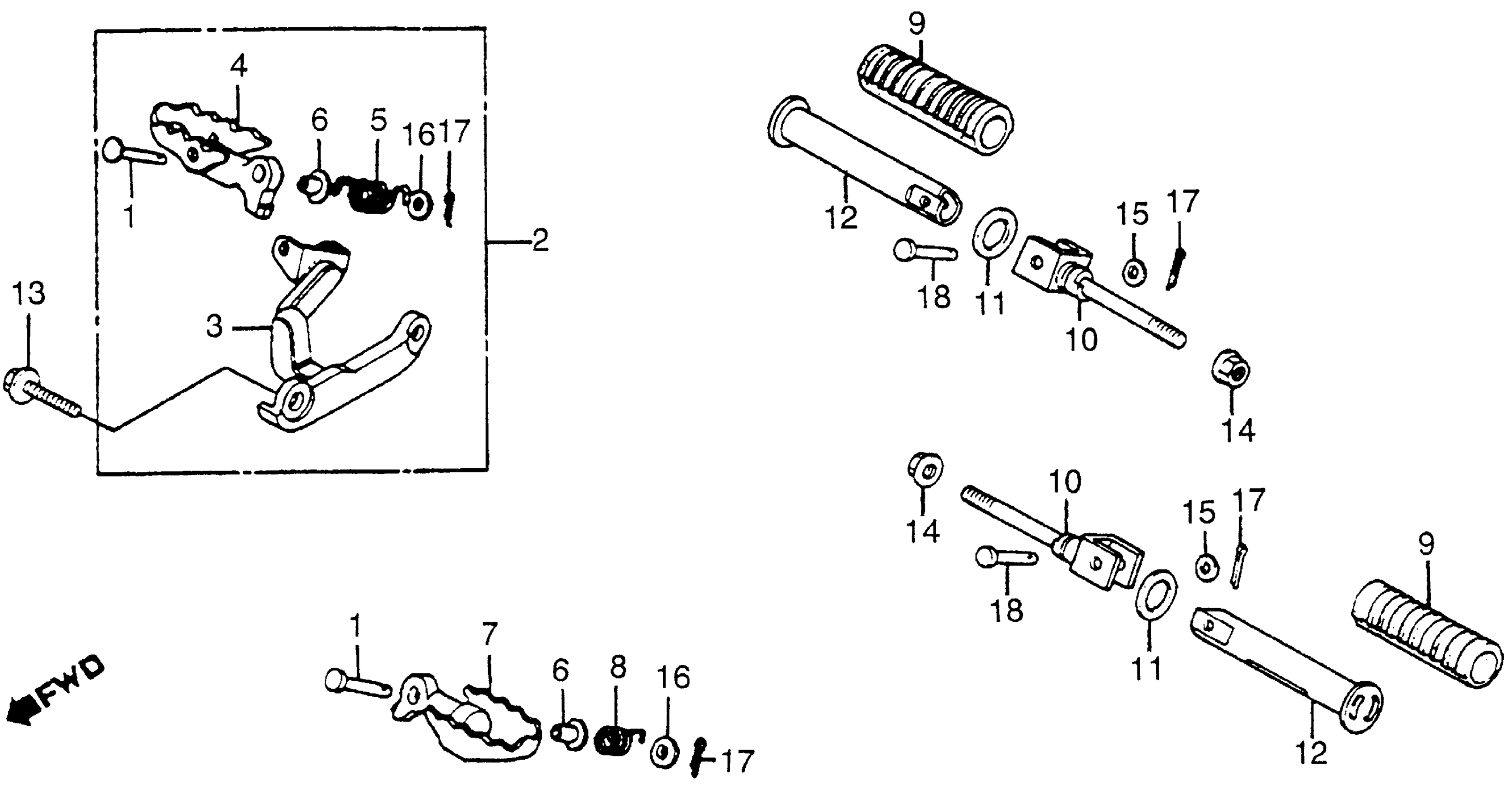

Honda XL350RA (85) MOTORCYCLE, JPN, VIN# JH2ND030-FK100001 TO JH2ND030-FK102051 STEP Diagram

#

Description
Price

1

PIN, STEP BAR JOINT

50603-MC4-000

$4.69

2

ARM ASSY., R. STEP *NH105* (MAT BLACK) (NOT AVAILABLE)

50610-KL3-770ZA

Unavailable

3

ARM, R. STEP *NH105* (MAT BLACK)

50615-KL3-770ZA

Unavailable

4

STEP, R.

50616-KL3-670

Unavailable

5

SPRING, R. STEP RETURN

50617-MC4-000

Unavailable

6

COLLAR, FOOTPEG SETTING

50622-KG1-000

$8.05

7

STEP, L.

50642-KL3-670

Unavailable

8

SPRING, L. STEP RETURN

50644-MC4-000

Unavailable

9

RUBBER, PILLION STEP

50706-MG2-000

Unavailable

10

BRACKET, PILLION STEP

50711-435-000

Unavailable

11

WASHER, PILLION FOOTPEG

50712-405-000

$3.26

12

BAR, PILLION STEP

50715-MG2-000

Unavailable

13

BOLT, FLANGE (10X40) This part replaces 90211-KF0-770.

90211-KT0-770

$5.14

13

BOLT, FLANGE (10X40)

90211-KT0-770

$5.14

14

NUT, FLANGE (10MM)

94050-10000

$1.59

15

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

15

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

15

WASHER, PLAIN (6MM)

94101-06800

$1.49

16

WASHER, PLAIN (8MM)

94101-08000

$1.49

17

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

17

PIN, COTTER (1.6X25)

94201-16250

$1.49

18

PIN A, PILLION STEP

95015-81000

$2.21
