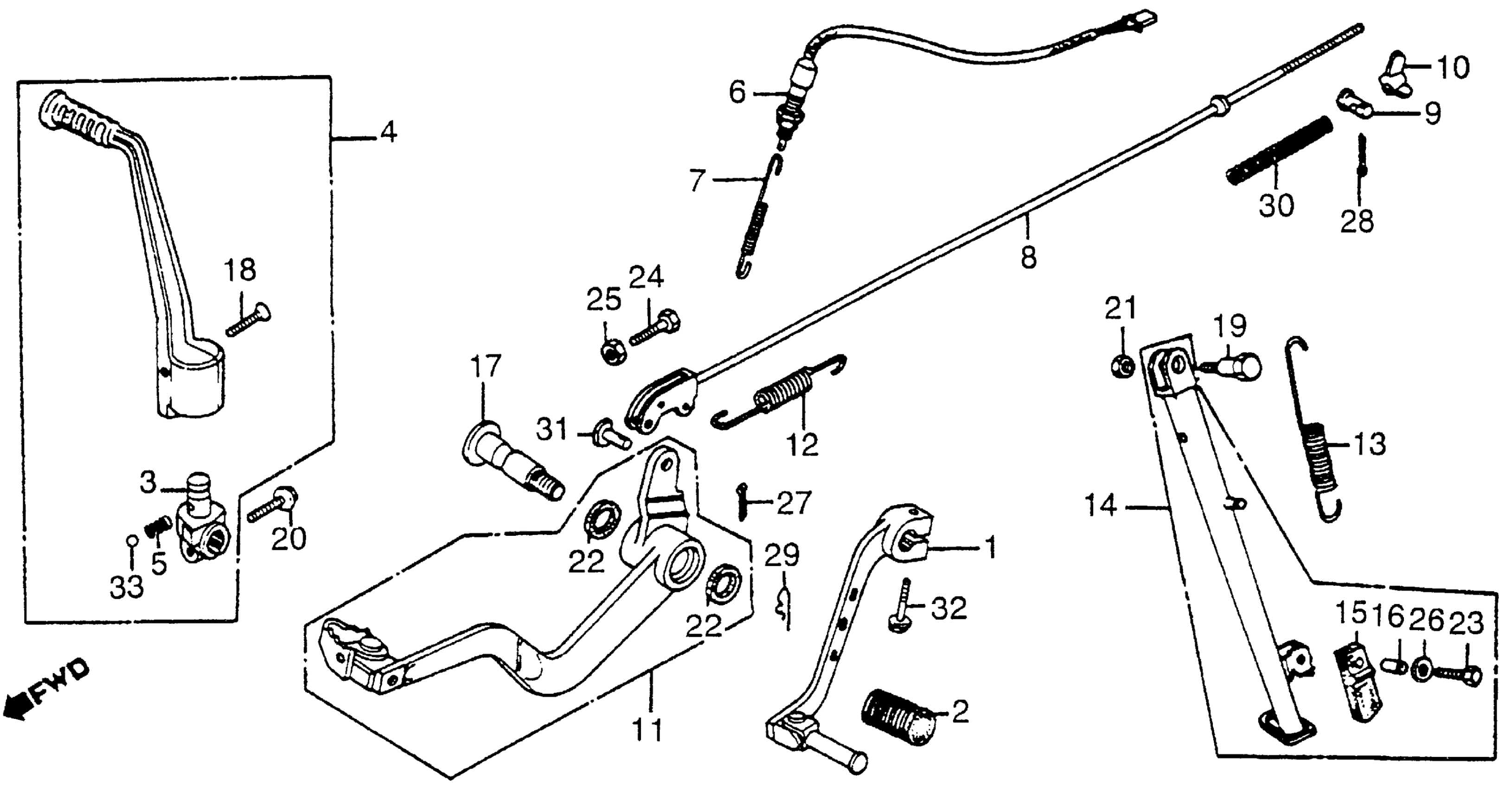

Honda XL350RA (85) MOTORCYCLE, JPN, VIN# JH2ND030-FK100001 TO JH2ND030-FK102051 SHIFT PEDAL + KICK STARTER ARM Diagram

#

Description
Price

1

PEDAL, GEARSHIFT (NOT AVAILABLE)

24700-KL3-670

Unavailable

2

RUBBER, CHANGE PEDAL

24781-KE1-000

$3.97

3

JOINT, KICK ARM

28241-KF0-000

Unavailable

4

ARM ASSY., KICK STARTER This part replaces 28300-KF0-000.

28300-KF0-010

Unavailable

4

ARM ASSY., KICK STARTER

28300-KF0-010

Unavailable

5

SPRING, KICK STARTER STOPPER

28333-124-000

$2.26

6

SWITCH ASSY., RR. STOP This part replaces 35350-KL3-670.

35350-KV6-405

$18.15

6

SWITCH ASSY., RR. STOP This part replaces 35350-KL3-671.

35350-KV6-405

$18.15

6

SWITCH ASSY., RR. STOP

35350-KV6-405

$18.15

7

SPRING, STOP SWITCH This part replaces 35357-KB7-000.

35357-KB7-910

Unavailable

8

ROD, RR. BRAKE (NOT AVAILABLE)

43451-KG0-000

Unavailable

9

JOINT, BRAKE ARM

43453-MC4-000

Unavailable

10

NUT, BRAKE ADJUST

43459-434-000

$15.27

11

PEDAL, BRAKE

46500-KL3-670

Unavailable

12

SPRING, BRAKE PEDAL

46511-KG0-000

Unavailable

13

SPRING, SIDE STAND This part replaces 50535-429-000.

50535-KN5-670

$6.54

14

BAR ASSY., SIDE STAND (NOT AVAILABLE)

50540-KL3-670

Unavailable

15

RUBBER, STAND

50548-356-700

$10.50

16

COLLAR, STAND RUBBER SETTING

50549-356-700

$2.70

17

BOLT, RR. BRAKE PIVOT

90101-KF0-000

Unavailable

18

BOLT, KICK ARM

90101-329-000

$3.67

19

SCREW, SIDE STAND PIVOT

90108-KG0-000

$7.96

20

BOLT, FLANGE (8X28) This part replaces 90215-KF0-000.

96400-08028-00

$1.85

20

BOLT, FLANGE (8X28)

96400-08028-00

$1.85

21

NUT, U (10MM)

90304-GE8-003

$3.67

22

DUST SEAL (15X20X2.5)

91251-444-000

$4.33

23

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.62

23

BOLT, HEX. (6X25) This part replaces 92000-06025-0A.

92101-06025-0A

$1.62

23

BOLT, HEX. (6X25) This part replaces 92100-06025.

92101-06025-0A

$1.62

23

BOLT, HEX. (6X25)

92101-06025-0A

$1.62

24

BOLT, HEX. (6X25)

92225-06025-0A

Unavailable

25

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

25

NUT, HEX. (6MM)

94001-06200-0S

$1.49

26

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

26

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

26

WASHER, PLAIN (6MM)

94101-06800

$1.49

27

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

27

PIN, COTTER (1.6X25)

94201-16250

$1.49

28

PIN, COTTER (2.0X22) This part replaces 94201-20200.

94201-29220

$1.49

28

PIN, COTTER (2.0X22)

94201-20220

$1.49

28

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.49

28

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.49

28

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.49

28

PIN, COTTER (2.0X35)

94201-20350

$1.49

28

PIN, COTTER (2.0X22)

94201-29220

$1.49

29

PIN, LOCK (12MM)

94251-12400

Unavailable

30

SPRING A, BRAKE ROD

95014-73100

$1.49

31

PIN B, BRAKE ROD JOINT

95015-52000

$2.03

32

BOLT, FLANGE (6X20) This part replaces 96000-06020-00.

96001-06020-00

$1.49

32

BOLT, FLANGE (6X20)

96001-06020-00

$1.49

33

BALL, STEEL (#8) (1/4)

96211-08000

$1.49
