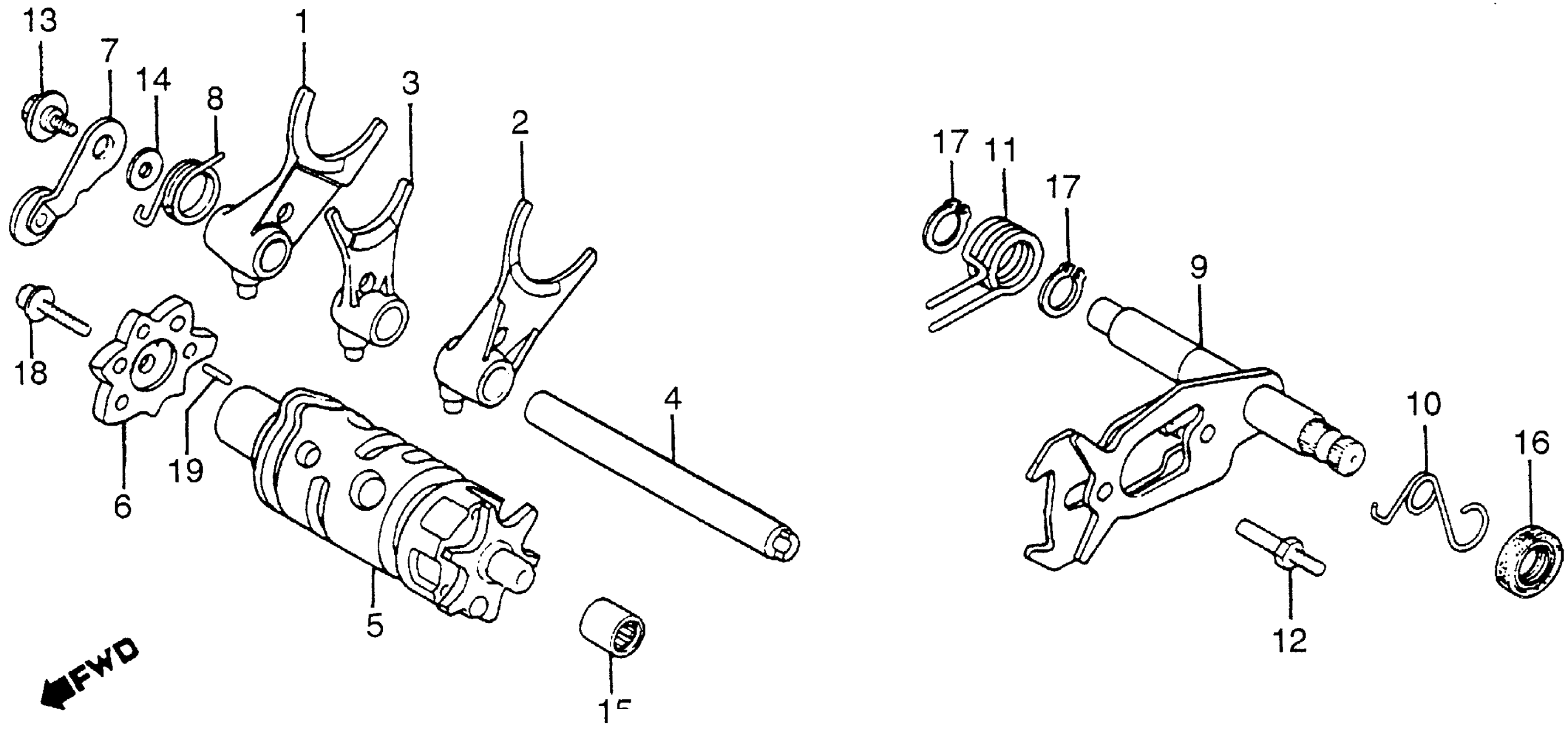

Honda XL350RA (85) MOTORCYCLE, JPN, VIN# JH2ND030-FK100001 TO JH2ND030-FK102051 SHIFT DRUM + SHIFT FORK Diagram

#

Description
Price

1

FORK, R. GEARSHIFT This part replaces 24211-KF0-000.

24211-KF0-010

Unavailable

1

FORK, R. GEARSHIFT

24211-KF0-010

Unavailable

2

FORK, L. GEARSHIFT This part replaces 24212-KF0-000.

24212-KF0-010

Unavailable

2

FORK, L. GEARSHIFT

24212-KF0-010

Unavailable

3

FORK, CENTER GEARSHIFT

24213-KF0-000

Unavailable

4

SHAFT, GEARSHIFT FORK GUIDE

24241-KL3-670

Unavailable

5

DRUM, GEARSHIFT

24300-KF0-010

Unavailable

6

CAM, GEARSHIFT (SOURCE: VINTAGE PARTS INC.) This part replaces 24411-KF0-000.

24411-KF0-010

Unavailable

6

CAM, GEARSHIFT

24411-KF0-010

Unavailable

7

STOPPER, GEARSHIFT DRUM

24430-KF0-000

$17.98

8

SPRING, SHIFT DRUM STOPPER

24435-KF0-010

Unavailable

9

SPINDLE, GEARSHIFT This part replaces 24610-KF0-010.

24610-KF0-020

Unavailable

9

SPINDLE, GEARSHIFT

24610-KF0-020

Unavailable

10

SPRING, GEARSHIFT RESET This part replaces 24624-KA4-000.

24624-MT3-000

$3.72

10

SPRING, GEARSHIFT RESET

24624-MT3-000

$3.72

11

SPRING, GEARSHIFT RETURN

24651-KF0-013

$8.75

12

PIN, SHIFT RETURN SPRING

24652-028-000

$9.72

13

BOLT, GEARSHIFT DRUM STOPPER ARM PIVOT This part replaces 90023-041-000.

90023-041-010

$2.25

13

BOLT, GEARSHIFT DRUM STOPPER ARM PIVOT

90023-041-010

$2.25

14

WASHER, DRUM STOPPER

90417-360-000

$1.74

15

BEARING, NEEDLE (12X16X10) This part replaces 91053-719-005.

91101-PZ9-000

$8.68

15

BEARING, NEEDLE (12X16X10)

91101-PZ9-000

$8.68

16

OIL SEAL (14X28X7) (ARAI) This part replaces 91202-956-003.

91202-965-003

$6.41

16

OIL SEAL (14X28X7) (ARAI)

91202-965-003

$6.41

16

OIL SEAL (14X28X7) (ARAI) This part replaces 91202-965-004.

91202-965-003

$6.41

17

CIRCLIP (OUTER) (14MM)

94510-14000

$1.49

18

BOLT, FLANGE (6X20) This part replaces 95700-06020-00.

95701-06020-00

$1.55

18

BOLT, FLANGE (6X20)

95701-06020-00

$1.55

19

ROLLER (3X8)

96220-30080

$1.49
