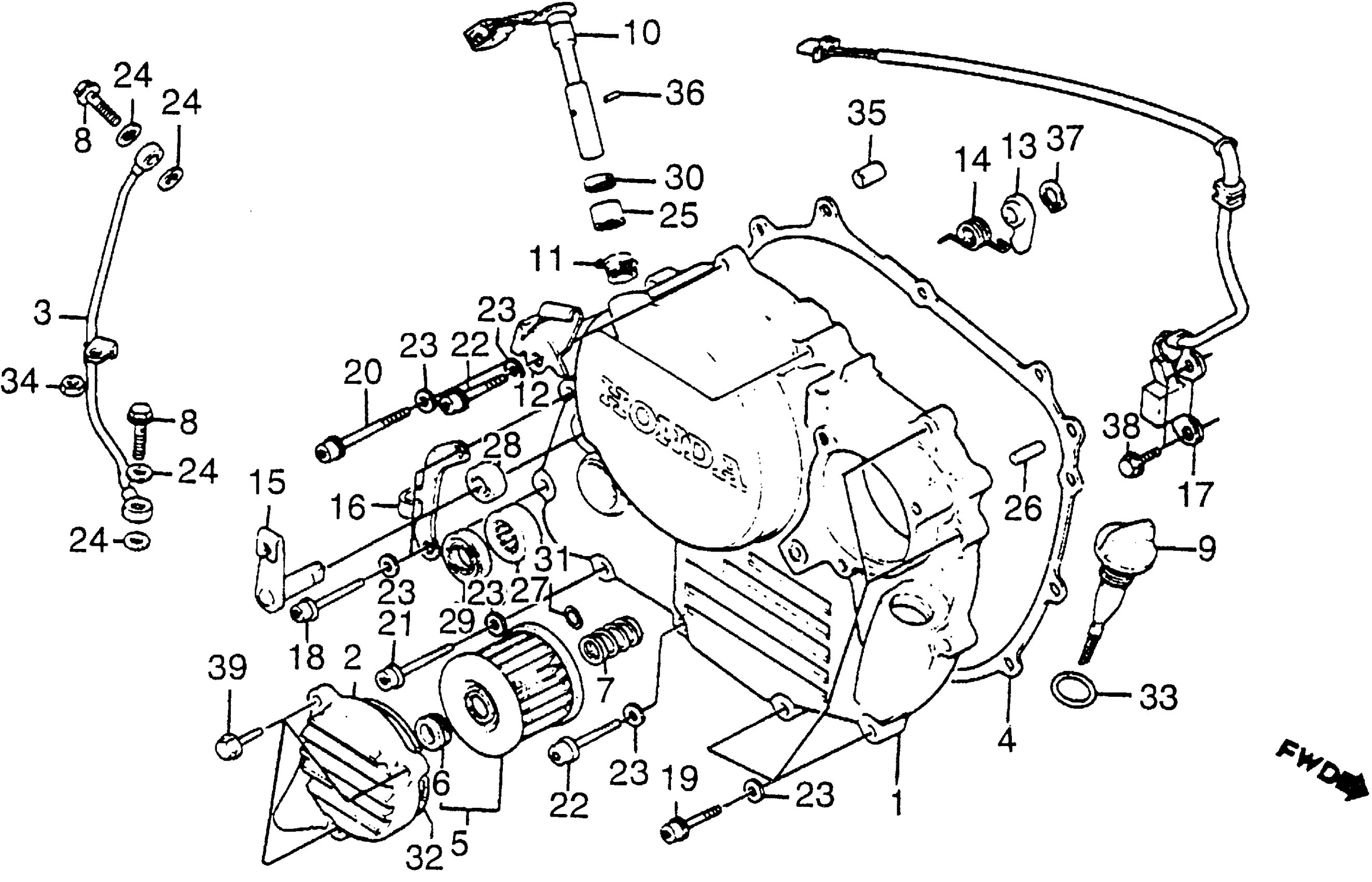

Honda XL350RA (85) MOTORCYCLE, JPN, VIN# JH2ND030-FK100001 TO JH2ND030-FK102051 RIGHT CRANKCASE COVER Diagram

#

Description
Price

1

COVER, R. CRANKCASE (NOT AVAILABLE) This part replaces 11330-KF0-010.

11330-KF0-305

Unavailable

1

COVER, R. CRANKCASE (NA USE ALT:11330-KF0-305)

11330-KF0-020

Unavailable

2

COVER, OIL FILTER (NOT AVAILABLE)

11333-KF0-000

Unavailable

3

PIPE, OIL PASSAGE (NOT AVAILABLE)

11335-KF0-000

Unavailable

4

GASKET, R. CRANKCASE COVER This part replaces 11394-KF0-000.

11394-KF0-306

$19.34

4

GASKET, R. CRANKCASE COVER

11394-KF0-306

$19.34

5

ELEMENT, OIL FILTER This part replaces 15410-KF0-305.

15410-KF0-315

$5.54

5

ELEMENT, OIL FILTER

15410-KF0-315

$5.54

5

ELEMENT, OIL FILTER This part replaces 15412-KF0-010.

15410-KF0-315

$5.54

6

RUBBER, FILTER

15413-MC8-000

$3.35

7

SPRING, OIL FILTER ELEMENT SETTING

15414-KF0-000

$4.24

8

BOLT, FLANGE (7X23) This part replaces 15533-HA0-000.

15533-KL8-730

Unavailable

8

BOLT, FLANGE (7X23) This part replaces 15533-KF0-000.

15533-KL8-730

Unavailable

9

DIPSTICK, OIL

15650-KL3-670

Unavailable

10

LEVER, CLUTCH

22810-KF0-000

Unavailable

11

SPRING, CLUTCH LEVER

22815-428-000

$3.28

12

HOLDER, CLUTCH CABLE

22838-KF0-000

Unavailable

13

FOLLOWER, CAM

28271-428-000

Unavailable

14

SPRING, FOLLOWER

28274-KF0-000

Unavailable

15

SHAFT, FOLLOWER

28280-KF0-000

Unavailable

16

RECEIVER B, DECOMPRESSION (NOT AVAILABLE)

28287-KF0-000

Unavailable

17

GENERATOR ASSY., PULSE (NOT AVAILABLE) This part replaces 30300-KG0-000.

30300-KG0-003

Unavailable

17

GENERATOR ASSY., PULSE

30300-KG0-003

Unavailable

18

BOLT, FLANGE SOCKET (6X25)

90091-KF0-000

$3.71

19

BOLT, FLANGE SOCKET (6X28)

90092-KF0-000

Unavailable

20

BOLT, FLANGE SOCKET (6X40)

90093-KF0-000

$4.35

21

BOLT, FLANGE SOCKET (6X25)

90097-KF0-000

Unavailable

22

BOLT, FLANGE SOCKET (6X28)

90098-KF0-000

$3.85

23

WASHER, LOCK

90433-KF0-000

Unavailable

24

WASHER, SEALING (7MM)

90441-MC0-000

$2.39

25

BEARING, NEEDLE (12X16X10) This part replaces 91053-719-005.

91101-PZ9-000

$8.68

25

BEARING, NEEDLE (12X16X10)

91101-PZ9-000

$8.68

26

PIN, DOWEL (6X19)

91101-KF0-000

$3.71

27

BEARING, NEEDLE (20X26X12) (NTN) This part replaces 91106-KF0-008.

91051-V19-003

$20.55

28

OIL SEAL (12X22X5)

91201-965-000

$4.06

28

OIL SEAL (12X22X5) This part replaces 91203-MC8-003.

91201-965-000

$4.06

29

OIL SEAL (20X28X5)

91204-KF0-003

$6.54

29

OIL SEAL (20X28X5) This part replaces 91204-KF0-004.

91204-KF0-003

$6.54

30

OIL SEAL (12X17X2.5) (ARAI)

91255-KF0-003

$5.13

30

OIL SEAL (12X17X2.5) (ARAI) This part replaces 91255-KF0-004.

91255-KF0-003

$5.13

31

GASKET, RUBBER (9.8MM)

91301-KF0-000

$3.92

32

O-RING (54X2.4) (ARAI)

91302-KF0-003

$3.47

33

O-RING (18X3) (ARAI)

91307-KF0-003

$2.92

34

NUT, HEX. (6MM)

94001-06070-0S

$1.49

35

PIN, DOWEL (8X20)

94301-08200

$2.25

36

PIN, SPRING (3X10)

94305-30102

$1.74

37

CIRCLIP (OUTER) (10MM)

94510-10000

$1.49

38

BOLT, FLANGE (6X14) This part replaces 96000-06014-00.

96001-06014-00

$1.72

38

BOLT, FLANGE (6X14)

96001-06014-00

$1.72

39

BOLT, FLANGE (6X25) This part replaces 96000-06025-07.

96001-06025-07

$1.49

39

BOLT, FLANGE (6X25)

96001-06025-07

$1.49
