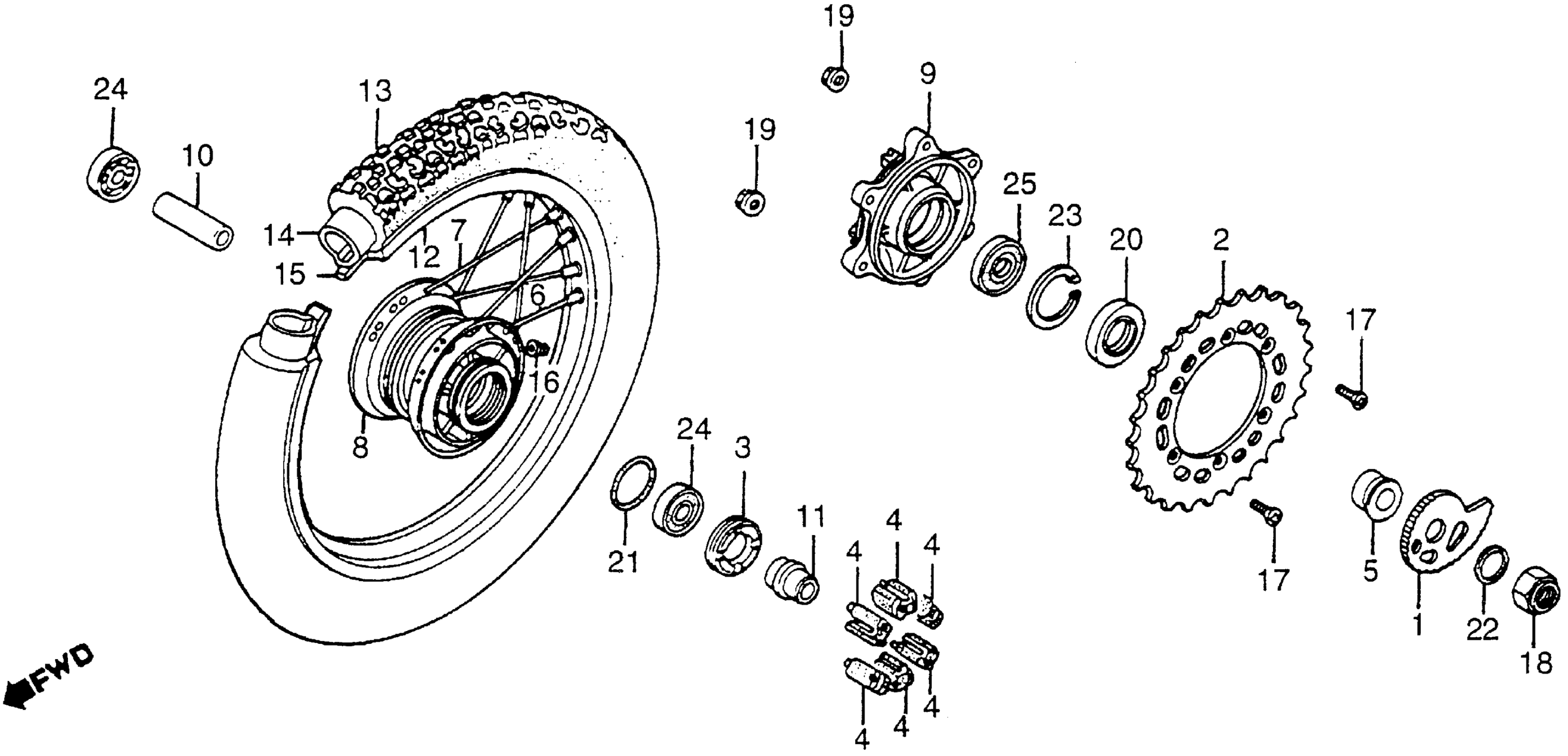

Honda XL350RA (85) MOTORCYCLE, JPN, VIN# JH2ND030-FK100001 TO JH2ND030-FK102051 REAR WHEEL Diagram

#

Description
Price

1

ADJUSTER, L. CHAIN This part replaces 40545-KF0-000.

40545-MY6-670

$15.84

1

ADJUSTER, L. CHAIN

40545-MY6-670

$15.84

2

SPROCKET, FINAL DRIVEN (40T) (NOT AVAILABLE)

41201-KG0-000

Unavailable

3

RETAINER, RR. WHEEL BEARING

41231-MC4-000

Unavailable

4

RUBBER, RR. WHEEL DAMPER

41241-KB7-000

$11.02

5

COLLAR, RR. WHEEL

42312-MC4-000

Unavailable

6

SPOKE SET A, RR.

426A0-KG0-000

Unavailable

7

SPOKE SET B, RR.

426B0-KG0-000

Unavailable

8

HUB, RR. WHEEL

42601-KG0-000

Unavailable

9

FLANGE, FINAL DRIVEN

42611-KG0-000

Unavailable

10

COLLAR, RR. AXLE DISTANCE

42620-KAZ-000

Unavailable

10

COLLAR, RR. AXLE DISTANCE This part replaces 42620-MC4-000.

42620-KAZ-000

Unavailable

10

COLLAR, RR. AXLE DISTANCE This part replaces 42620-MK5-680.

42620-KAZ-000

Unavailable

11

COLLAR B, RR. AXLE DISTANCE This part replaces 42625-MC4-000.

42625-MAN-620

$19.64

12

RIM, RR. WHEEL (NOT AVAILABLE)

42701-KG0-003

Unavailable

13

TIRE (4.60-17) (4PR) This part replaces 42711-MC4-671.

42711-MC4-005

Unavailable

13

TIRE, RR. (4.60-17) (4PR) (DUNLOP) (NOT AVAILABLE)

42711-KL3-671

Unavailable

14

TUBE, TIRE (5.10-17) (INOUE) This part replaces 08400-37100.

42712-MA0-005

Unavailable

14

TUBE, TIRE (5.10-17) (INOUE) This part replaces 42712-KB7-902.

42712-MA0-005

Unavailable

14

TUBE, TIRE (5.10-17) (INOUE) This part replaces 42712-MA0-003.

42712-MA0-005

Unavailable

14

TUBE, TIRE (5.10-17) (INOUE)

42712-MA0-005

Unavailable

14

TUBE, TIRE (5.10-17) (INOUE) This part replaces 42712-MC4-009.

42712-MA0-005

Unavailable

14

TUBE, TIRE (120/90-17) (BS)

42712-MN9-003

Unavailable

14

TUBE, TIRE (5.10-17) (INOUE) This part replaces 42712-371-003.

42712-MA0-005

Unavailable

14

TUBE, TIRE (5.10-17) (INOUE) This part replaces 42712-371-004.

42712-MA0-005

Unavailable

15

FLAP, TIRE (17) (INOUE)

42713-102-005

$6.54

15

FLAP, TIRE (17) (INOUE) This part replaces 42713-102-009.

42713-102-005

$6.54

15

FLAP, TIRE (2.15-17) (BS)

42713-MG7-003

$7.75

15

FLAP, TIRE (2.15-17) (BS) This part replaces 42713-425-772.

42713-MG7-003

$7.75

16

CAP, RIM HOLE

42717-329-000

$4.21

17

SCREW, FLAT (8X29)

90125-KA3-700

$6.19

18

NUT, AXLE (16MM)

90305-MA0-003

$7.31

19

NUT, FLANGE (M8X1.25) (SELF-LOCK) This part replaces 90309-KF0-003.

90309-428-731

$3.35

19

NUT, FLANGE (8MM)

90309-428-731

$3.35

20

OIL SEAL (28X47.2X7) (ARAI) This part replaces 91252-MC4-003.

91252-MC4-013

$6.98

20

OIL SEAL (28X47.2X7) (ARAI) This part replaces 91252-MC4-005.

91252-MC4-013

$6.98

20

OIL SEAL (28X47.2X7) (ARAI)

91252-MC4-013

$6.98

21

O-RING (54X2) This part replaces 91302-317-700.

91307-MB0-003

$3.23

21

O-RING (54X2) This part replaces 91307-MB0-000.

91307-MB0-003

$3.23

21

O-RING (54X2)

91307-MB0-003

$3.23

22

WASHER, SPRING (16MM)

94111-16000

$1.49

23

CIRCLIP (INNER) (47MM)

94520-47000

$2.34

23

CIRCLIP (INNER) (47MM)

94521-47000

$2.39

23

CIRCLIP (INNER) (47MM) This part replaces 94524-47000.

94521-47000

$2.39

24

BEARING, RADIAL BALL (6203U)

96140-62030-10

$11.91

25

BEARING, RADIAL BALL (6204U)

96140-62040-10

$21.84
