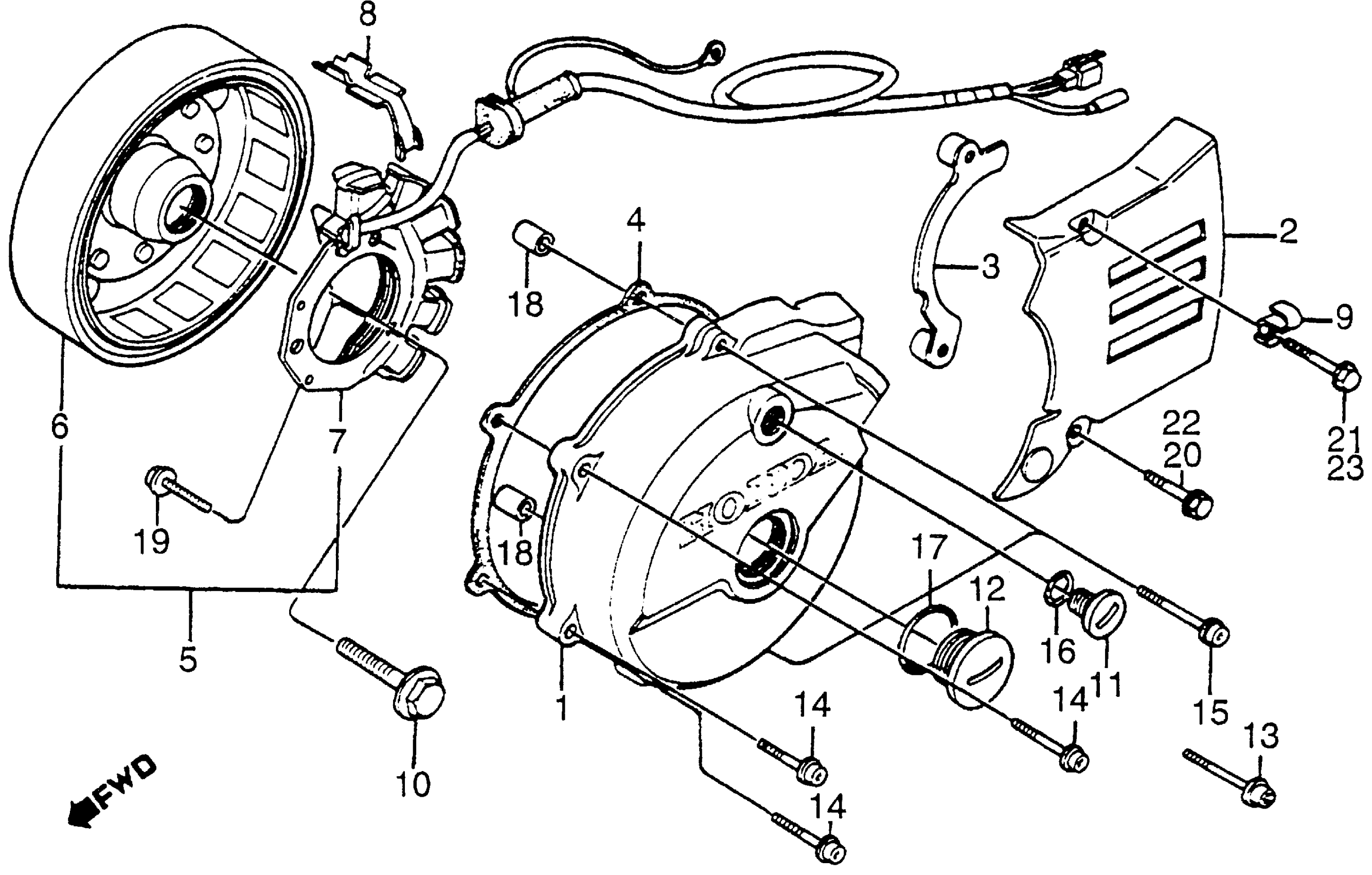

Honda XL350RA (85) MOTORCYCLE, JPN, VIN# JH2ND030-FK100001 TO JH2ND030-FK102051 LEFT CRANKCASE COVER + ALTERNATOR Diagram

COVER, L. CRANKCASE (NOT AVAILABLE)

11341-KG0-000

Unavailable

COVER, L. RR. CRANKCASE (NOT AVAILABLE)

11351-KG0-000

Unavailable

GUIDE, DRIVE CHAIN

11352-KG0-010

Unavailable

GASKET, L. CRANKCASE COVER This part replaces 11395-KF0-000.

11395-KF0-306

Unavailable

GASKET, L. CRANKCASE COVER

11395-KF0-306

Unavailable

ALTERNATOR ASSY.

31100-KL3-004

Unavailable

FLYWHEEL

31110-KG0-008

Unavailable

STATOR

31120-KG0-004

Unavailable

STATOR This part replaces 31120-KL3-004.

31120-KG0-004

Unavailable

CLAMP, CABLE

32111-KF0-000

Unavailable

CLIP, ALTERNATOR WIRE

32972-KG0-000

Unavailable

BOLT, FLANGE (12X45) This part replaces 90023-HA7-670.

90024-MT3-000

Unavailable

BOLT, FLANGE (12X45) This part replaces 90023-428-000.

90024-MT3-000

Unavailable

BOLT, FLANGE (12X45)

90024-MT3-000

Unavailable

CAP, ALTERNATOR

90084-471-000

Unavailable

CAP (30MM) This part replaces 90087-471-000.

90087-MR1-000

$19.89

BOLT, FLANGE SOCKET (6X28)

90005-KN8-730

Unavailable

BOLT, FLANGE SOCKET (6X28) This part replaces 90091-KL8-000.

90005-KN8-730

Unavailable

BOLT, FLANGE SOCKET (6X28)

90092-KF0-000

Unavailable

BOLT, FLANGE SOCKET (6X40)

90093-KF0-000

$4.35

O-RING (13.8X2.5)

91303-MG7-003

$3.12

O-RING (13.8X2.5)

91303-377-000

$3.42

O-RING (13.8X2.5) This part replaces 91303-426-000.

91303-MG7-003

$3.12

O-RING (27X2.0)

91305-KF0-003

$2.92

PIN A, DOWEL (10X16)

94301-10160

$2.28

BOLT, FLANGE (6X25)

95700-06025-08

$1.72

BOLT, FLANGE (6X25)

95701-06025-08

$1.72

BOLT, FLANGE (6X35) This part replaces 96000-06035-07.

96001-06035-07

$2.06

BOLT, FLANGE (6X35)

96001-06035-07

$2.06

BOLT, FLANGE (6X40) This part replaces 96000-06040-07.

96001-06040-07

$1.49

BOLT, FLANGE (6X40)

96001-06040-07

$1.49
