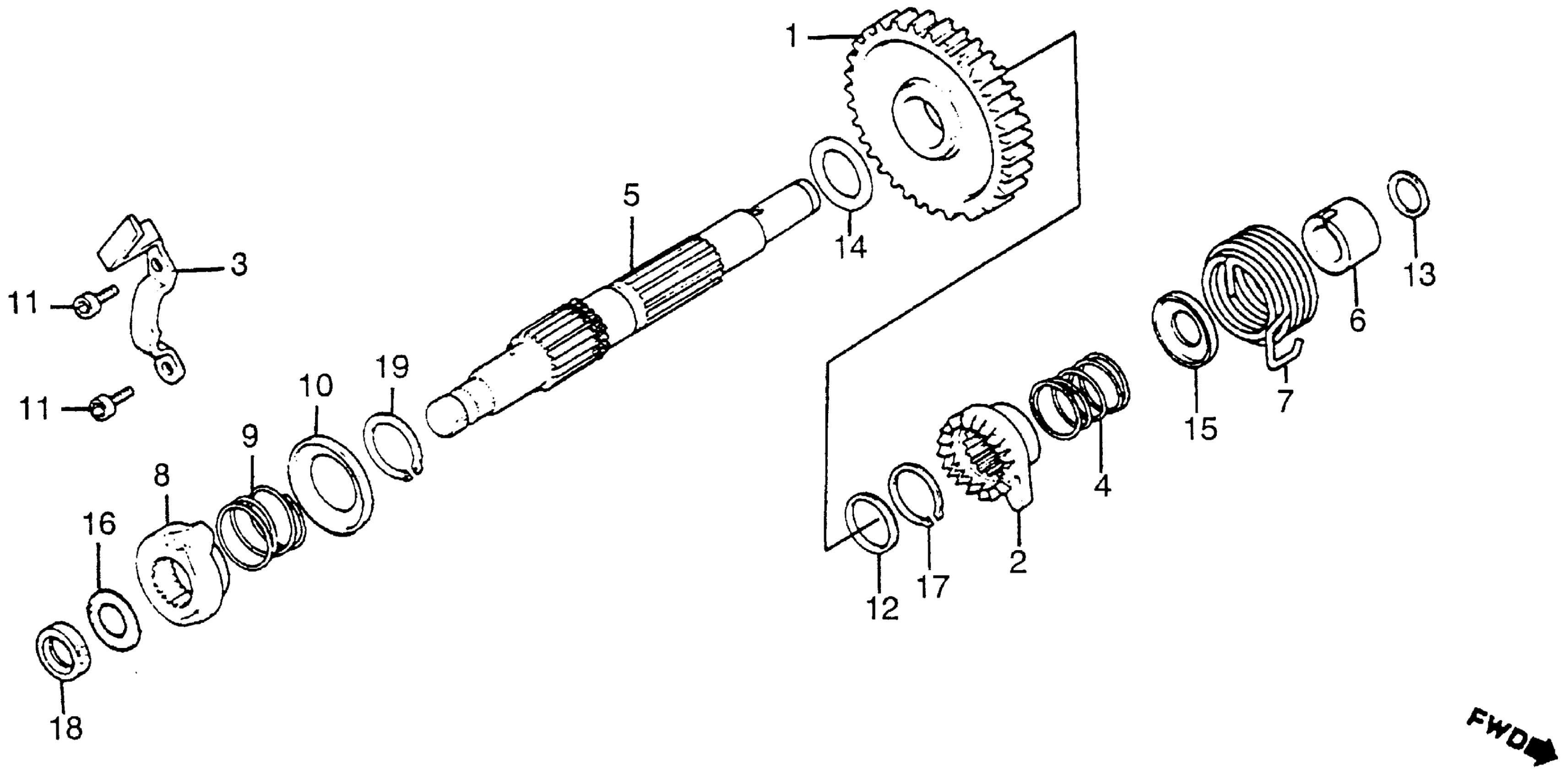

Honda XL350RA (85) MOTORCYCLE, JPN, VIN# JH2ND030-FK100001 TO JH2ND030-FK102051 KICK STARTER SPINDLE Diagram

PINION, KICK STARTER

28211-KF0-000

Unavailable

RATCHET, KICK STARTER This part replaces 28213-KF0-000.

28213-KF0-010

Unavailable

RATCHET, KICK STARTER

28213-KF0-010

Unavailable

PLATE, KICK STOPPER

28215-KF0-000

Unavailable

SPRING, KICK STARTER RATCHET

28223-KF0-004

Unavailable

SPINDLE, KICK STARTER (NOT AVAILABLE) This part replaces 28250-KF0-000.

28250-KF0-010

Unavailable

SPINDLE, KICK STARTER

28250-KF0-010

Unavailable

COLLAR, KICK STARTER

28255-KF0-010

Unavailable

SPRING, KICK STARTER

28261-KF0-000

Unavailable

CAM, KICK STARTER SHAFT

28272-KF0-003

Unavailable

SPRING, CAM RESET

28283-428-000

Unavailable

SEAT, CAM RESET SPRING

28284-428-000

Unavailable

BOLT, SOCKET (6X16)

90001-MA2-770

$3.53

WASHER, THRUST (22MM)

90453-428-000

$2.90

WASHER, THRUST (14MM)

90453-444-000

Unavailable

WASHER, THRUST (22MM)

90456-323-000

Unavailable

WASHER, KICK RATCHET SPRING

90501-KF0-000

$6.74

WASHER, THRUST (20X1.00)

90454-428-000

$2.53

WASHER, THRUST (20X1.00) This part replaces 90554-700-000.

90454-428-000

$2.53

CIRCLIP (OUTER) (22MM)

90601-329-000

$2.67

OIL SEAL (20X28X5)

91204-KF0-003

$6.54

OIL SEAL (20X28X5) This part replaces 91204-KF0-004.

91204-KF0-003

$6.54

CIRCLIP (OUTER) (24MM)

94510-24000

Unavailable
